Z-Force 48 (17AF3AGV009) - Cub Cadet 48" Z-Force Zero-Turn Mower, Kohler Engine Crankcase Parts Diagram

48" Z-Force Zero-Turn Mower, Kohler

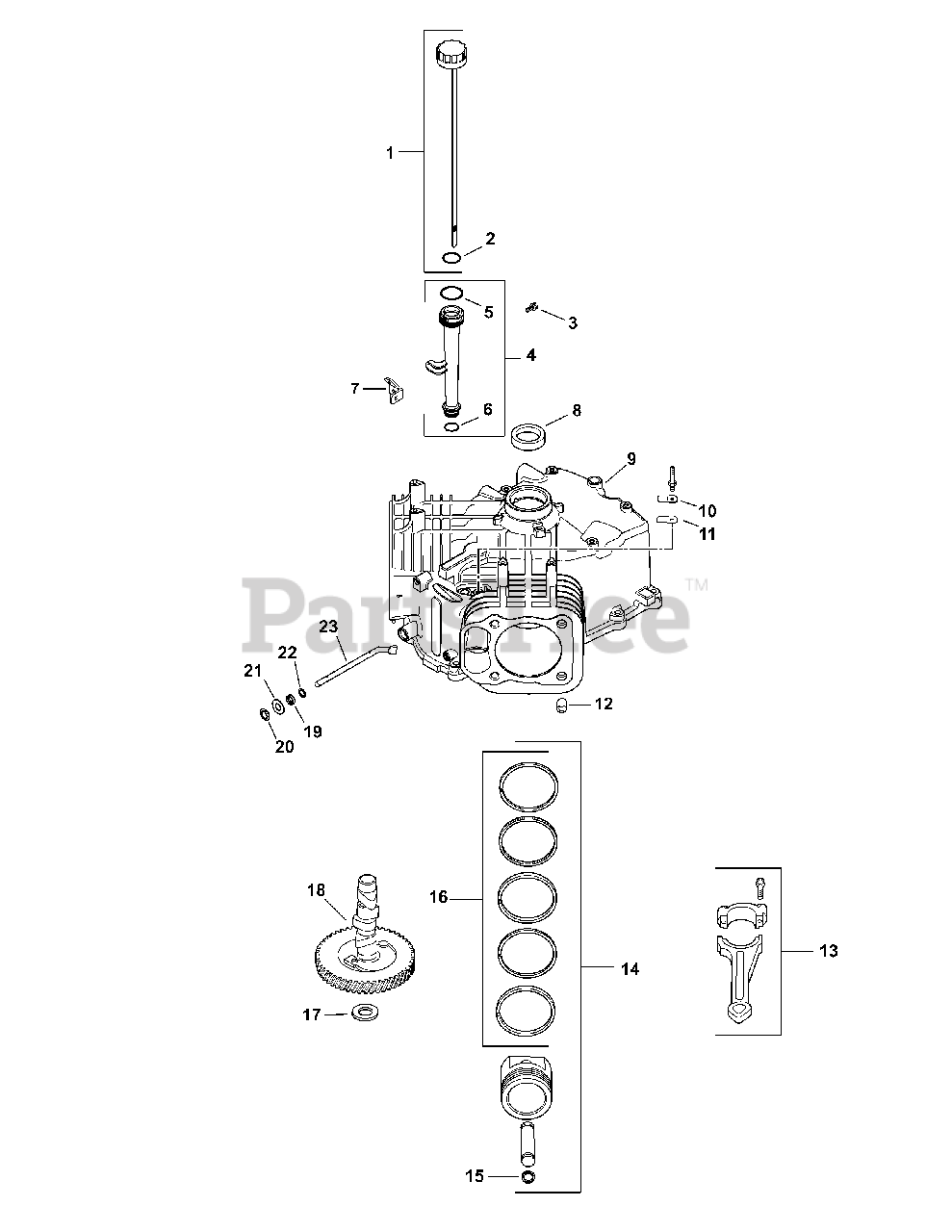

Engine Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-32-038-01-S

Dipstick, Assy (Cub Yellow)
(Superseded to KH-32-755-04-S)

Note: (Includes Ref No. 2)

$

$

Not available

2

Cub Cadet KH-25-153-02-S

O-Ring, Dipstick

$2.99

$

In Stock, Qty 7

0

3

Cub Cadet KH-M-545013-S

Screw, Flg Thd Frm M5x0.8x13

$2.49

$

In Stock, only 3 left!

0

4

Cub Cadet KH-12-123-04

Kit, Oil Fill Cap (Includes 5, 6)
(Superseded to KH-32-755-04-S)

$

$

Not available

5

Cub Cadet KH-12-153-02-S

O-Ring, Upper Oil Fill Tube

$2.99

$

In Stock, Qty 12

0

6

Cub Cadet KH-12-153-01-S

O-Ring, Lower Oil Fill Tube

$5.99

$

In Stock, Qty 8

0

7

Cub Cadet KH-24-126-19

Bracket, Oil Fill Tube
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-032-19-S

Seal, Oil

$8.99

$

In Stock, Qty 20+

0

9

Crankcase (use: Shortblock )

$

$

Not available

9

Cub Cadet KH-32-522-03

Shortblock
(Superseded to KH-32-522-07)

Note: SV820-0011

$

$

Not available

9

Cub Cadet KH-32-522-02

Shortblock
(Superseded to KH-32-522-06)

Note: SV830-0011

$1122.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-018-04-S

Retainer, Breather Reed

$2.49

$

In Stock, Qty 12

0

11

Cub Cadet KH-12-402-02

Reed, Breather

$

$

Not available

12

Cub Cadet KH-24-380-16-S

Pin, Locating

$4.49

$

In Stock, Qty 16

0

13

Cub Cadet KH-24-067-24-S

Connecting Rod (STD)
(Superseded to KH-25-067-04-S)

$71.99

$

In Stock, Qty 10

0

14

Cub Cadet KH-32-874-01-S

Kit, Piston w/ Ring (STD)

Note: (Includes Ref No. 15 & 16)

$

$

Not available

14

Cub Cadet KH-32-874-08-S

Kit, Piston w/ Ring (.25)
(Superseded to KH-25-874-16-S)

Note: SV820-0011

$313.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-24-874-28-S

Kit, Piston w/ Ring (.25)
(Superseded to KH-25-874-16-S)

Note: SV830-0011

$313.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-24-874-27-S

Kit, Piston w/ Ring (.08)
(Superseded to KH-25-874-07-S)

$313.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-018-01-S

Retainer, Piston Pin

$3.49

$

In Stock, Qty 9

0

16

Cub Cadet KH-24-108-14-S

Ring Set (STD & .08)

$

$

Not available

16

Cub Cadet KH-24-108-16-S

Ring Set (.25)

$113.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-12-422-07-S

Shim, Camshaft (White .028)

Note: AR

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet KH-12-422-08-S

Shim, Camshaft (Blue .03)

Note: AR

$2.49

$

In Stock, only 1 left!

0

17

Cub Cadet KH-12-422-09-S

Shim, Camshaft (Red .032)

Note: AR

$2.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-422-10-S

Shim, Camshaft (Yellow .034)

Note: AR

$2.49

$

In Stock, Qty 10

0

17

Cub Cadet KH-12-422-11-S

Shim, Camshaft (Green .036)

Note: AR

$2.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-422-12-S

Shim, Camshaft (Gray .038)

Note: AR

$2.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-422-13-S

Shim, Camshaft (Black .04)

Note: AR

$2.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-32-012-01-S

Kit, Camshaft (Includes Lubricant)

$136.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$3.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-24-018-09-S

Retainer Ring

$2.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-M-931010-S

Washer, Flat 9MM

$2.49

$

Usually ships in 2-5 days

0

22

Cub Cadet KH-24-468-15-S

Washer, Flat 11/32"

$2.49

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-24-144-38-S

Shaft, Governor Cross
(Superseded to KH-24-144-39-S)

$49.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-357-14-S

Lubricant, Camshaft

Note: (not shown)

$3.99

$

In Stock, only 2 left!

0
