Z-Force 44 (53AA5B6L712) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Mower Deck 44 (2005) Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

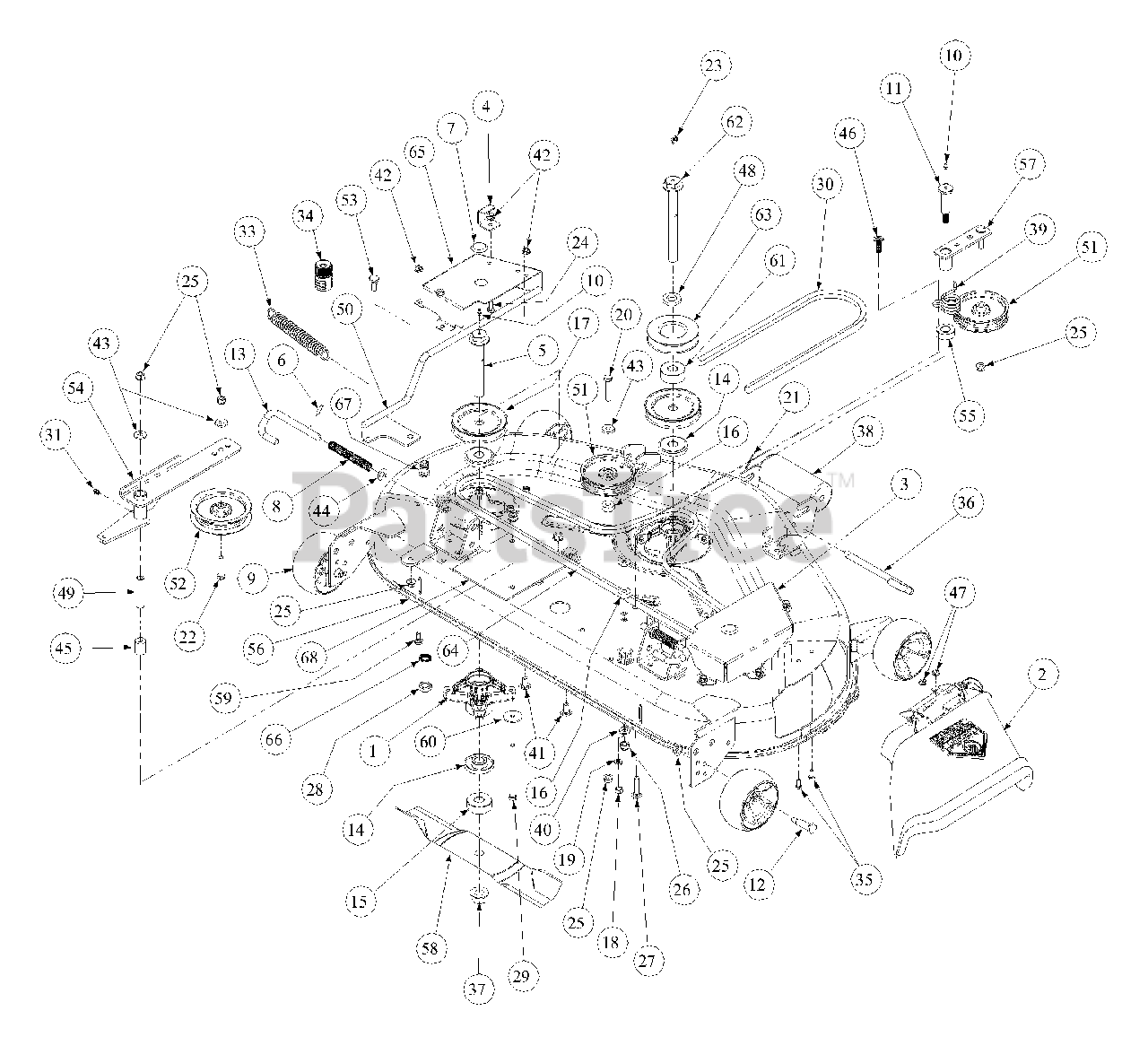

Mower Deck 44 (2005) Parts Diagram

  • Title

1

Cub Cadet 618-3129B

Spindle Assembly
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0

2

Cub Cadet 631-0094A

Chute Assembly
(Superseded to 631-0094B)

$78.99

$

In Stock, only 1 left!

0

3

Cub Cadet 01008587

Belt Cover Right Hand
(Superseded to 703-3743-4021)

$

$

Not available

4

Cub Cadet 01004109

Tension Rod Stop Bracket

$11.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-1852

Spindle Bolt 3/4-16 x 5.37

$28.99

$

In Stock, only 2 left!

0

6

Cub Cadet 715-3003

Pin

$6.99

$

In Stock, Qty 9

0

7

Cub Cadet 726-3045

Button Plug
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 7

0

8

Cub Cadet 732-0802

Compression Spring .63 OD x 6.3

$4.49

$

In Stock, only 1 left!

0

9

Cub Cadet 734-04039

Deck Wheel, 5.00 Dia.
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

10

Cub Cadet 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 738-3172

Shoulder Screw .68 x 2.11

$20.99

$

In Stock, only 2 left!

0

12

Cub Cadet 738-0373

Shoulder Screw .498 x 1.53
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

13

Cub Cadet 747-3013

Support Pin

$22.99

$

In Stock, only 2 left!

0

14

Cub Cadet 748-3065

Spindle Spacer
(Superseded to 748-3065A)

$13.99

$

In Stock, Qty 18

0

15

Cub Cadet 748-3020

Blade Spacer
(Superseded to 948-3020)

$17.99

$

In Stock, only 2 left!

0

16

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$11.99

$

In Stock, Qty 5

0

17

Cub Cadet 756-3089

Pulley

$36.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 00006131

Hex Nut 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 00012157

Lock Washer, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 00002528

Hex Cap Screw 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

21

Cub Cadet 00003107

Cotter Pin .125 Dia x 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

23

Cub Cadet 00012226

Grease Fitting, 1/4-28, 90 degree
(Superseded to 737-3004)

$11.99

$

In Stock, only 4 left!

0

24

Cub Cadet 00013406

Hex Cap Screw 5/16-18 x .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 00022560

Hex Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 00027279

Nut 7/16-14, Nylock
(Superseded to 712-0290)

$4.99

$

In Stock, Qty 11

0

27

Cub Cadet 00030276

Carriage Bolt 3/8-16 x 1.50
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-0641

Hex Nut, M16-1.5

$6.49

$

In Stock, Qty 7

0

29

Cub Cadet 00034167

Hex Cap Screw 3/8-16 x 5.00

$

$

Not available

30

Cub Cadet 00050441

V-Belt, B-Section

$59.99

$

In Stock, only 3 left!

0

31

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

32

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

33

Cub Cadet 01000199

Extension Spring, 1.0 OD x 5.00

$17.99

$

In Stock, only 4 left!

0

34

Cub Cadet 721-04041

Water Nozzle Adaptor
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

35

Cub Cadet 01000338

Hex Cap Screw 1/4-20 x .620
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet 01000375

Roller Pin 1/2 x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

37

Cub Cadet 02000402

Nut, 3/4-16, Hex Flange

$12.99

$

In Stock, only 2 left!

0

38

Cub Cadet 01000385

Front Roller
(Superseded to 731-3005)

$28.99

$

In Stock, Qty 20+

0

39

Cub Cadet 01000387

Idler Spring
(Superseded to 932-3009)

$24.99

$

In Stock, only 4 left!

0

40

Cub Cadet 01000393

Flat Washer, .469 ID x .875 OD x .105
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

41

Cub Cadet 01000372

Carriage Bolt, 3/8-16 x .75
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 01000635

Lock Nut 5/16-18 Hex Flange
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 01000723

Flat Washer, .406 ID x 1.0 OD x .105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 01000930

Flat Washer .508 ID x 1.0 OD
(Superseded to 936-0369)

$4.49

$

In Stock, Qty 8

0

45

Cub Cadet 01001539

Spacer, .39 ID x .875 OD x 1.100

$22.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 01002010

Carriage Screw, 3/8-16 x 1.25
(Superseded to 710-3034)

$3.99

$

In Stock, Qty 5

0

47

Cub Cadet 01002766

Nut, 1/4-20, hexflange Lock
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 01003123

Spacer .812 ID x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

49

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

50

Cub Cadet 01004865

Deck Handle Weldment

$

$

Not available

51

Cub Cadet 01004081

Flat Pulley
(Superseded to 02005077)

$35.99

$

In Stock, Qty 20+

0

52

Cub Cadet 01004101

Idler Pulley, 4.06 OD
(Superseded to 02004447)

$57.99

$

In Stock, Qty 20+

0

53

Cub Cadet 01004118

Shoulder Screw, .50 x .27 Lg., 3/8-16
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

54

Cub Cadet 02000134

Idler Arm Assembly, Top
(Superseded to 02001855)

$118.99

$

In Stock, only 3 left!

0

54

Cub Cadet 01000308

Bearing Sleeve
(Superseded to 741-04555)

Note: not shown

$16.99

$

In Stock, only 2 left!

0

55

Cub Cadet 01008456

Spacer .760 ID x 1.5 OD

$34.99

$

In Stock, only 1 left!

0

56

Cub Cadet 02000619

Deck Assembly 44"

$1536.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 01008593

Idler Arm Assembly

$144.99

$

In Stock, only 2 left!

0

58

Cub Cadet 01008616

Blade
(Superseded to 02005020-0637)

$28.99

$

In Stock, Qty 8

0

59

Cub Cadet 01008620

Self Tapping Screw 5/16-18 x .750
(Superseded to 710-04484)

$3.99

$

In Stock, Qty 20+

0

60

Cub Cadet 01009253

Washer, 5/16-18
(Superseded to 936-0227)

$

$

Not available

61

Cub Cadet 01010014

Spacer .760 ID x 2.00 OD x 0.790
(Superseded to 750-05184)

$37.99

$

In Stock, only 4 left!

0

62

Cub Cadet 02000071

Spindle Bolt 3/4-16 x 7.155

$39.99

$

In Stock, only 4 left!

0

63

Cub Cadet 02000079

V-Pulley 4.25 OD Casting

$111.99

$

In Stock, only 4 left!

0

64

Cub Cadet 02000103

V-Belt, A-Section
(Superseded to 02000103P)

$87.99

$

In Stock, only 2 left!

0

65

Cub Cadet 02000108

Belt Cover Left Hand
(Superseded to 703-3742-0716)

$53.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 736-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 7

0

67

Cub Cadet 737-04003B

Deck Water Nozzle
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

68

Cub Cadet 02000636

Deck Plate

$

$

Not available
