Z-Force 44 (53AA5B6L712) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Drive Train Assembly Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

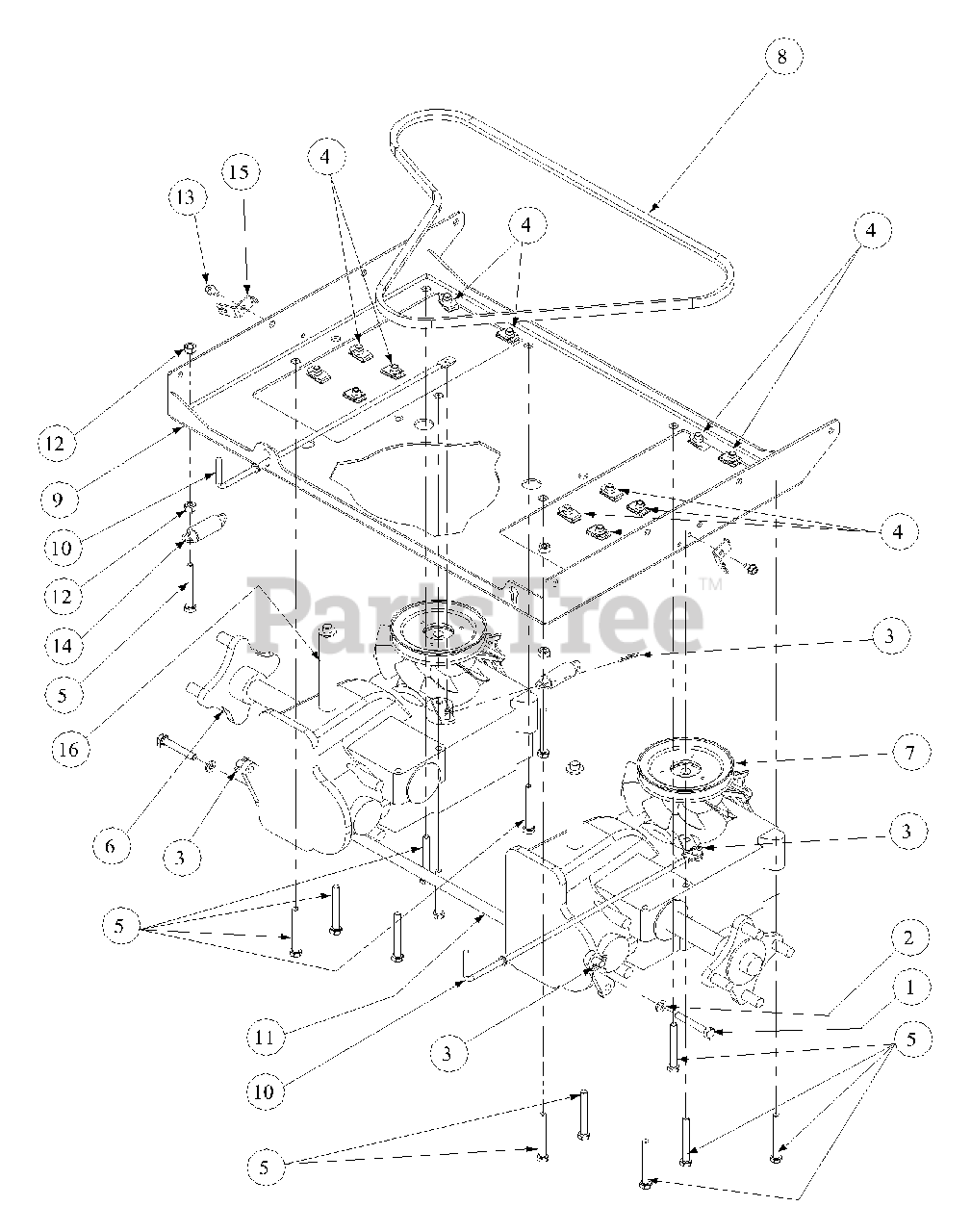

Drive Train Assembly Parts Diagram

  • Title

1

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2.0
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

2

Cub Cadet 00012169

Flat Washer, .320 ID x .591 OD

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 01002771

Cotter Pin, .072 x 1.12 Lg
(Superseded to 914-0104)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01003563

U-Nut, 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

5

Cub Cadet 01007122

Hex Cap Screw, 5/16-18 x 2.5
(Superseded to 01007122P)

$

$

Not available

6

Cub Cadet 01008192

IZT Transmission, Left Hand

$

$

Not available

7

Cub Cadet 01008193

IZT Transmission, Right Hand

$

$

Not available

8

Cub Cadet 01008349

V-Belt, 56.00
(Superseded to 01008349P)

$31.99

$

In Stock, Qty 14

0

9

Cub Cadet 02000617

Transmission Mounting Bracket

$

$

Not available

10

Cub Cadet 02001332

Pump Rod

$23.99

$

In Stock, only 1 left!

0

11

Cub Cadet 01008414

Transmission Brace Tube
(Superseded to 01008414P)

$

$

Not available

12

Cub Cadet 00012166

Nut, 5/16-18

$

$

Not available

13

Cub Cadet 01000628

Screw, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 01008758

Extension Spring, .438 OD x 2.50

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01008611

Brake Cable Mounting Bracket

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet HG-51401

Hose, 1/2 Dia. x 4" Long

$

$

Not available

Cub Cadet HG-70110

O-Ring Fitting Assembly

Note: not shown

$31.99

$

In Stock, Qty 7

0

Cub Cadet HG-70109

Cap Vent Assembly

Note: not shown

$12.99

$

Usually ships in 3-6 days

0
