Z-Force 44 (53AA5B6L712) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Blower Housing and Baffles Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

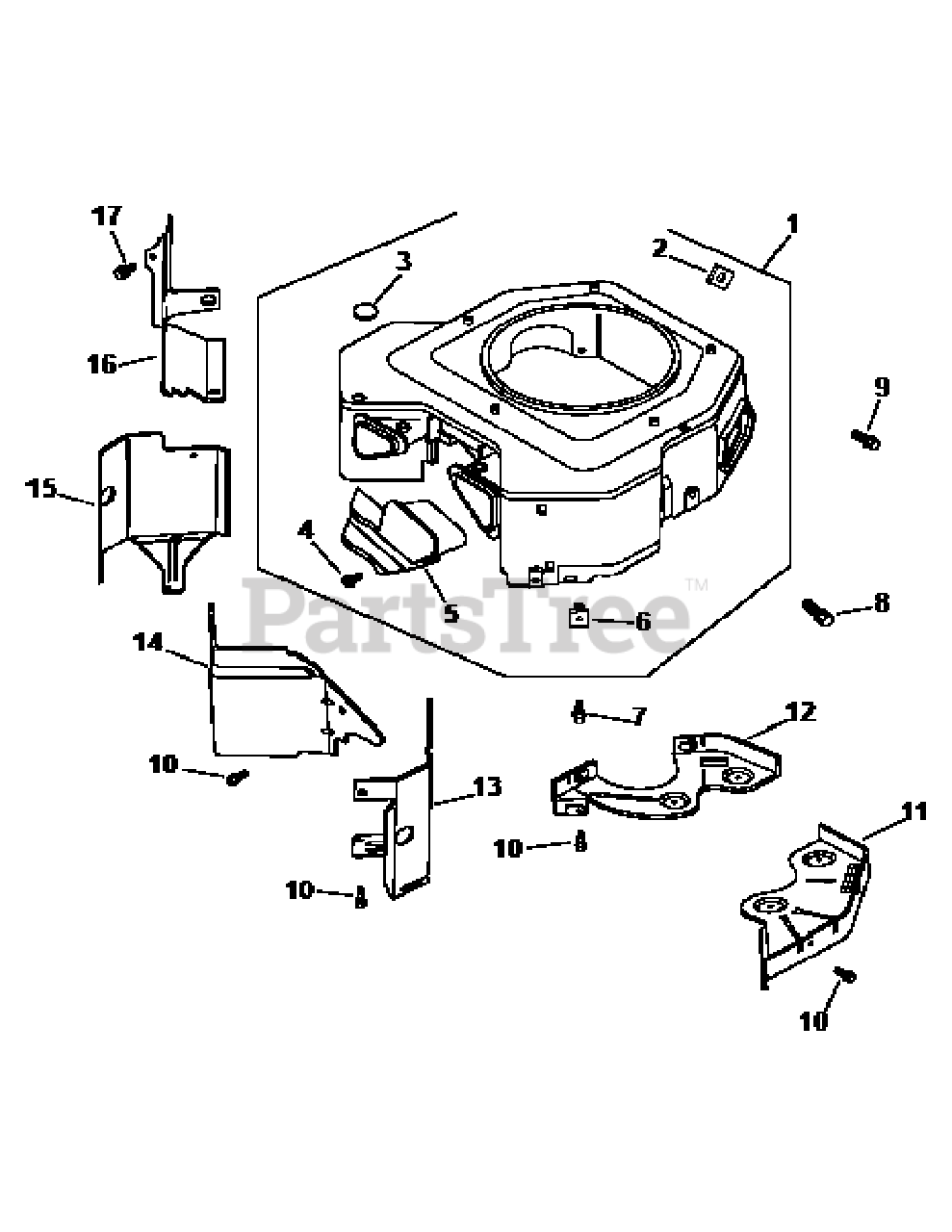

Blower Housing and Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-196-S

Blower Housing
(Superseded to KH-24-027-492-S)

$136.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-100-01

Plastic Nut
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 7

0

3

Cub Cadet KH-25-139-16

9/16" Button Plug

$

$

Not available

4

Cub Cadet KH-25-086-91-S

Tapping Screw

$3.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-096-85-S

Blower Housing Cover
(Superseded to KH-24-096-161-S)

$2.49

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-100-02

Plastic Nut

$

$

Not available

7

Cub Cadet KH-M-545016-S

Screw
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-M-551016-S

Screw

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-M-545020-S

Screw
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

10

Cub Cadet KH-M-645016-S

Screw

$3.99

$

In Stock, Qty 13

0

11

Cub Cadet KH-24-146-16-S

Backing Plate # 2 Side

$

$

Not available

12

Cub Cadet KH-24-146-20-S

Backing Plate # 1 Side

$

$

Not available

13

Cub Cadet KH-24-063-20

Cylinder Barrel Baffle # 2 Side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-063-69-S

Valley Baffle # 2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-063-58-S

Cylinder Barrel Baffle # 1 Side
(Superseded to KH-24-063-85-S)

$17.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-24-063-60-S

Valley Baffle # 1 Side

$

$

Not available

17

Cub Cadet KH-M-0545010

Screw

$

$

Not available

Cub Cadet KH-24-332-01-S

Threaded Insert (Not Illustrated)

$

$

Not available

Cub Cadet KH-24-113-12

20 HP Decal (Not Illustrated)

$

$

Not available

Cub Cadet KH-24-113-18-S

Grass Screen Decal (Not Illustrated)

$

$

Not available

Cub Cadet KH-25-113-39-S

Clear Lamination Decal (Not Illustrated)
(Superseded to KH-25-113-79-S)

$2.49

$

In Stock, only 4 left!

0
