Z-Force 44 (53AA5B6L709) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Lift Assembly (2006) Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

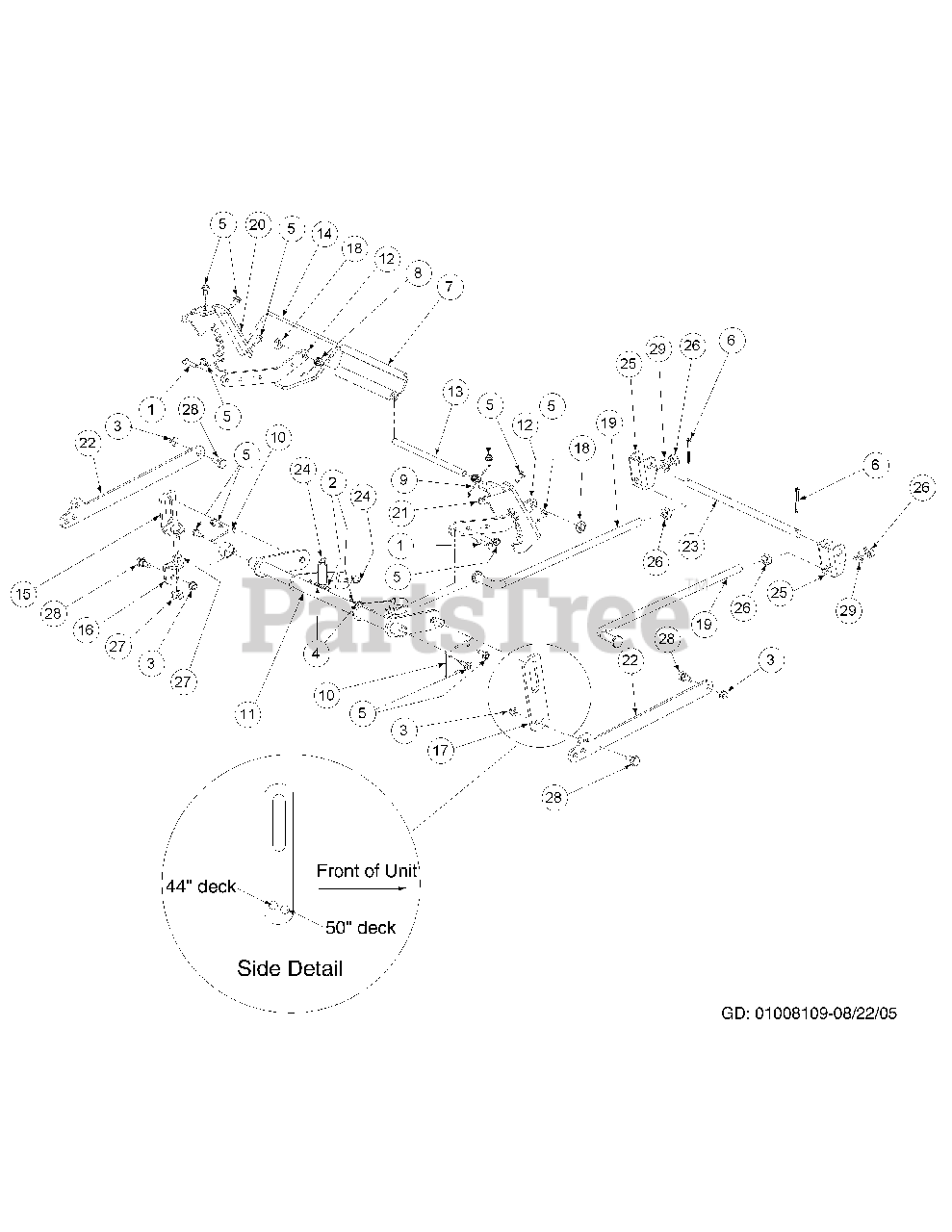

Lift Assembly (2006) Parts Diagram

  • Title
1

Cub Cadet 00012382

Hex Cap Screw, 5/16-18 x 1-1/2

$

$

Not available

2

Cub Cadet 00022547

Nut, 5/16-18, Center Lock

$

$

Not available

3

Cub Cadet 00022560

Nut, 3/8-16, Hex Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

5

Cub Cadet 01008620

Self Tapping Screw, 5/16-18 x 3/4
(Superseded to 710-04484)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00060018

Cotter Pin, 3/16 x 1-1

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01008139

Deck Lift Handle

$

$

Not available

8

Cub Cadet 01008140P

Deck Lift Spring, Left Hand

$34.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01008141P

Deck Lift Spring, Right Hand

$

$

Not available

10

Cub Cadet 01008477P

Lift Hub Assembly

$

$

Not available

11

Cub Cadet 01008459

Lift Shaft Assembly

$175.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01008494

Handle Lift Arm

$

$

Not available

13

Cub Cadet 01008175P

Lift Handle Rod

$

$

Not available

14

Cub Cadet 01008176P

Lift Rod Index

$

$

Not available

15

Cub Cadet 02000833P

Upper Link Lift Assembly, Left Hand

$51.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01008183P

Lower Lift Bracket, Left Hand

$

$

Not available

17

Cub Cadet 02000834P

Link Lift Plate, Right Hand

$

$

Not available

18

Cub Cadet 726-0221

Cap Lift Push Nut

Note: Replaces 01008187

$6.49

$

In Stock, only 1 left!

0

19

Cub Cadet 01008382

Front Lift Rod

$

$

Not available

20

Cub Cadet 01008188

Lift Index Weldment, Left Hand

$

$

Not available

21

Cub Cadet 01008189

Lift Index Weldment, Right Hand
(Superseded to 01008189-0637)

Variations

Cub Cadet 01008189-0637

PLATE-RH LIFT INDE - POWDER BLACK (0637)

$

$

Not available

$

$

22

Cub Cadet 01008465

Rear Lift Arm

$

$

Not available

23

Cub Cadet 01002586

Front Lift Rod

$46.99

$

In Stock, only 3 left!

0

24

Cub Cadet 01008573P

Lift Spring

$

$

Not available

25

Cub Cadet 01008638

Front Lift Bracket

$

$

Not available

26

Cub Cadet 912-3015

Jam Nut, 5/8-11
(Superseded to 712-3015)

Note: Replaces 00035632

$4.99

$

In Stock, only 2 left!

0

27

Cub Cadet 01008658

Jam Nut, 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

28

Cub Cadet 02000393

Shoulder Screw, 3/8-16, .56 x .27
(Superseded to 738-05008)

$8.49

$

In Stock, only 3 left!

0

29

Cub Cadet 02000671

Lock Washer, 5/8
(Superseded to 936-0158)

$4.49

$

In Stock, Qty 11

0
