Z-Force 44 (17AF3AGL010) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Lift Assembly Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

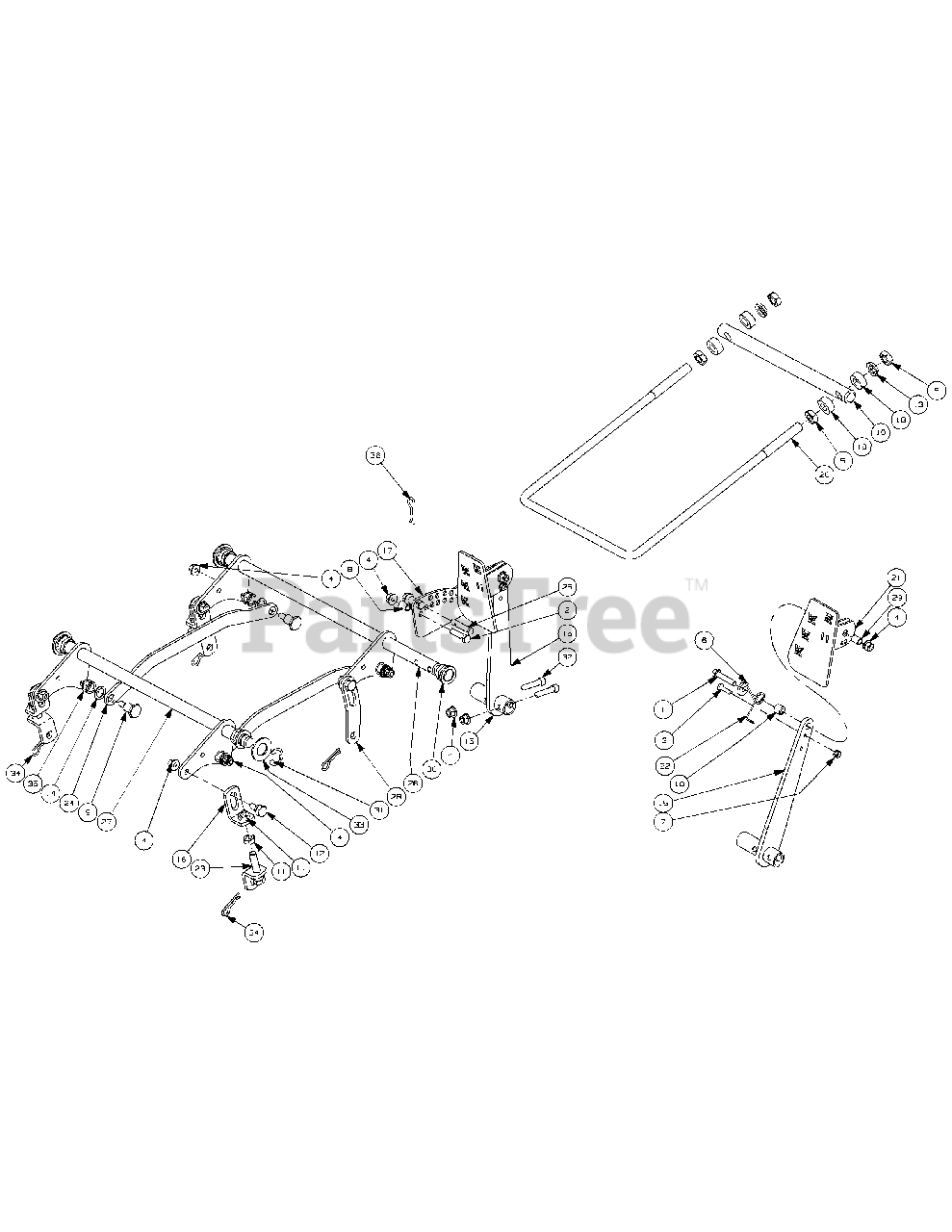

Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

2

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.99

$

In Stock, Qty 13

0

3

Cub Cadet 00013416

Hex Cap Screw, 1/4-20 x 1.00
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

4

Cub Cadet 00022560

Nut, 3/8-16, Hex Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3015

Jam Nut, 5/8-11

Note: replaces 00035632

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 01002766

Nut, 1/4-20, Hex Flange Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 01003468

Spacer, .375 x .50 x .75 Lg

$

$

Not available

9

Cub Cadet 01003536

Shoulder Screw, 0.625 OD x .830 Lg.
(Superseded to 738-05007)

$8.99

$

In Stock, only 4 left!

0

10

Cub Cadet 01007312

Spacer, .625 OD x .385 ID x 1/2

$22.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01008658

Jam Nut, 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

12

Cub Cadet 02000393

Shoulder Screw, 3/8-16, .56 x .27
(Superseded to 738-05008)

$8.49

$

In Stock, only 1 left!

0

13

Cub Cadet 02000671

Lock Washer, 5/8
(Superseded to 936-0158)

$4.49

$

In Stock, Qty 11

0

14

Cub Cadet 02001891

Washer, 1.00 OD x .625 ID x .048

$6.99

$

In Stock, only 1 left!

0

15

Cub Cadet 02002374

Foot Lift Pivot Assembly

Variations

Cub Cadet 02002374-0637

USE 02002374 PIVOT ASM - FOOT - POWDER BLACK (0637)

$103.99

$

Usually ships in 3-6 days

0

$103.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002382

Deck Lift Bracket

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02004694

Index Plate
(Superseded to 02004694-0637)

Variations

Cub Cadet 02004694-0637

PLATE-INDEX - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 02003751

Spacer, .635 ID x 1.188 OD x .406
(Superseded to 750-05621)

$4.49

$

In Stock, Qty 16

0

19

Cub Cadet 02004227

Trail Link Pivot Rod

$56.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02002879

Front Lift Rod

$38.99

$

In Stock, Qty 10

0

21

Cub Cadet 02002880

Foot Pedal Assembly
(Superseded to 02002880-0637)

Variations

Cub Cadet 02002880-0637

PEDAL ASM-FOOT - POWDER BLACK (0637)

$

$

Not available

$

$

22

Cub Cadet 02002882

Foot Lift Torsion Spring

$10.99

$

In Stock, only 1 left!

0

23

Cub Cadet 02002890

Lower Lift Bracket Assembly

$36.99

$

In Stock, only 2 left!

0

24

Cub Cadet 02002893

Lift Link

$27.99

$

In Stock, only 1 left!

0

25

Cub Cadet 02002907

Clevis Pin, .375 x 1.89 x 2.125
(Superseded to 711-06098)

$4.49

$

In Stock, only 3 left!

0

26

Cub Cadet 02002915

Front Shaft Assembly

$

$

Not available

27

Cub Cadet 02002916

Rear Shaft Assembly

$114.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02002979

Link Plate

$22.99

$

In Stock, only 2 left!

0

29

Cub Cadet 02003436

Spacer, .380 ID x .500 OD x .605

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02003685

Hex Flange Bearing, .875 ID

$9.49

$

In Stock, only 2 left!

0

31

Cub Cadet 02003716

E Clip, .875 Dia.
(Superseded to 716-0136)

$8.99

$

In Stock, Qty 20+

0

32

Cub Cadet 02003717

Sockethead Capscrew, 3/8-16 x 1.50
(Superseded to 710-06024)

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 02003720

Flat Washer, .94 x 1.75 x .11
(Superseded to 736-05011)

$

$

Not available

34

Cub Cadet 02000673

Hair Pin
(Superseded to 914-0209)

$3.99

$

In Stock, only 2 left!

0

35

Cub Cadet 02005334

Spacer, .628 ID x .875 OD x .500
(Superseded to 750-0547)

$5.99

$

In Stock, only 2 left!

0

36

Cub Cadet 00021956

Hair Pin
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0
