Z-Force 44 (17AF3AGL010) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Front Caster & Tire Assembly 44 Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

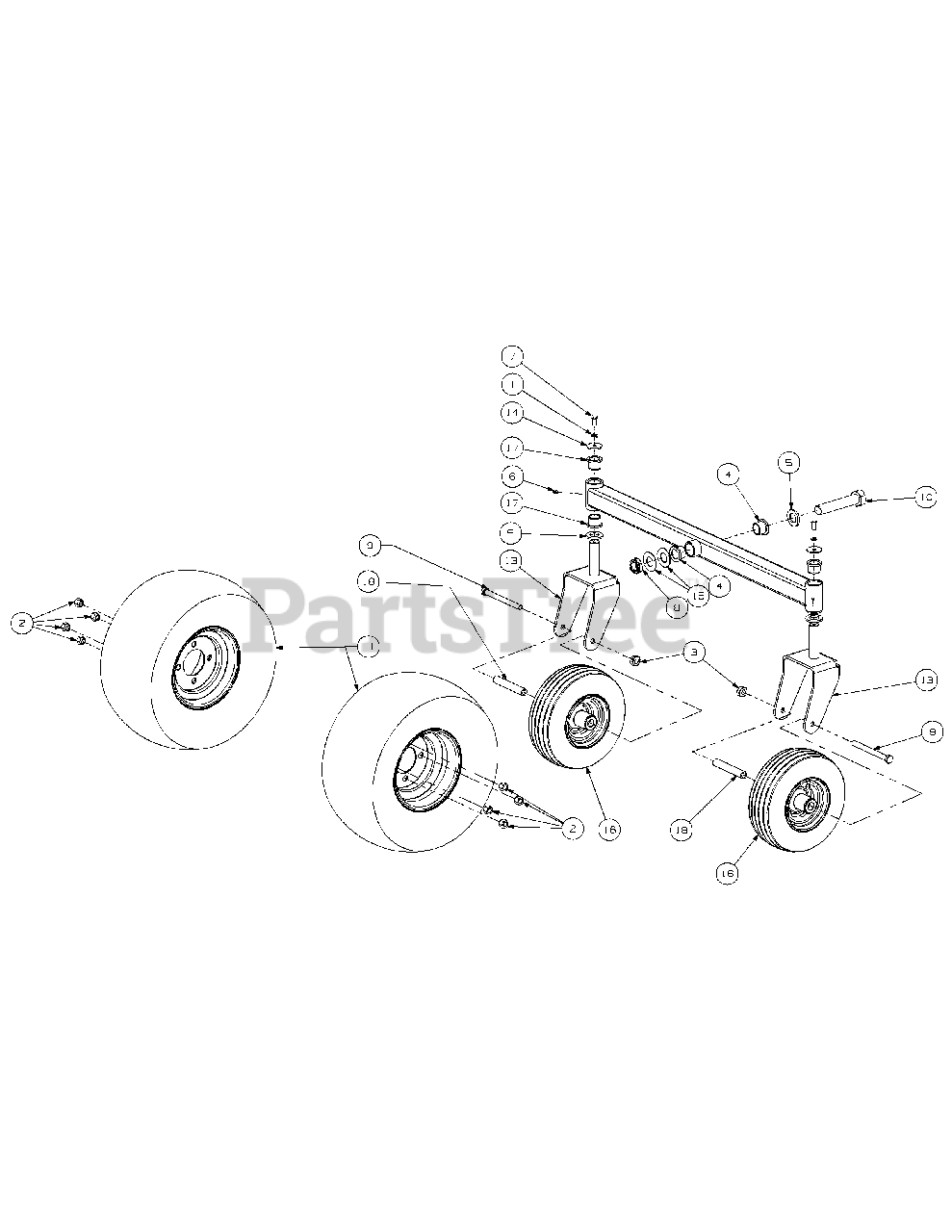

Front Caster & Tire Assembly 44 Parts Diagram

  • Title
1

Cub Cadet 736-0169

Lock Washer, 3/8 Zinc

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012187

Lug Nut, 1/2-20
(Superseded to 712-04311)

$3.99

$

In Stock, Qty 8

0

3

Cub Cadet 00023287

Nut, 1/2-20, Center Lock
(Superseded to 712-0239)

$

$

Not available

4

Cub Cadet 02003599

Flange Bearing, 1.001 ID
(Superseded to 741-04488)

$9.49

$

In Stock, only 4 left!

0

5

Cub Cadet 00023822

Washer Special
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

6

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet 01000368

Hex Cap Screw, 3/8-16 x .88
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

8

Cub Cadet 01000678

Nut Jam, 1.0-14, Nylon Insert
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet 01000745

Hex Cap Screw, 1/2-20 x 5.50
(Superseded to 710-0506)

$10.99

$

In Stock, only 2 left!

0

10

Cub Cadet 02003804

Hex Cap Screw, 1-14 x 5.5
(Superseded to 710-06026)

$46.99

$

In Stock, only 1 left!

0

11

Cub Cadet 01008320

Wheel Assembly, 18 x 8.5
(Superseded to 01008320P)

$

$

Not available

12

Cub Cadet 01008384

Front Axle Assembly
(Superseded to 01008384-0637)

Variations

Cub Cadet 01008384-0637

Front Axle Assembly - POWDER BLACK (0637)

$325.99

$

Usually ships in 3-6 days

0

$325.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01008549

Castor Wheel Mounting Bracket
(Superseded to 01008549-0637)

Variations

Cub Cadet 01008549-0637

Castet Mounting Bracket - POWDER BLACK (0637)

$103.99

$

In Stock, only 3 left!

0

$103.99

$

In Stock, only 3 left!

0

14

Cub Cadet 01009253

Flat Washer, .390 x 1.5 x .134
(Superseded to 936-0227)

$

$

Not available

15

Cub Cadet 02000588

Flat Washer, 1.00 ID x 2.25 OD x ,075
(Superseded to 736-04605)

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 02003488

Wheel Assembly, 11 x 4 - 4, Beige

$

$

Not available

16

Cub Cadet 02002107

Front Retainer Bushings

Note: not shown

$6.49

$

In Stock, only 3 left!

0

16

Cub Cadet 02002106

Front Roller Bearings

Note: not shown

$32.99

$

In Stock, only 2 left!

0

17

Cub Cadet 731-0374

Flange Bearing, 1.0 ID
(Superseded to 931-0374)

$7.49

$

In Stock, Qty 11

0

18

Cub Cadet 750-3197A

Wheel Spacer

$21.99

$

In Stock, Qty 13

0
