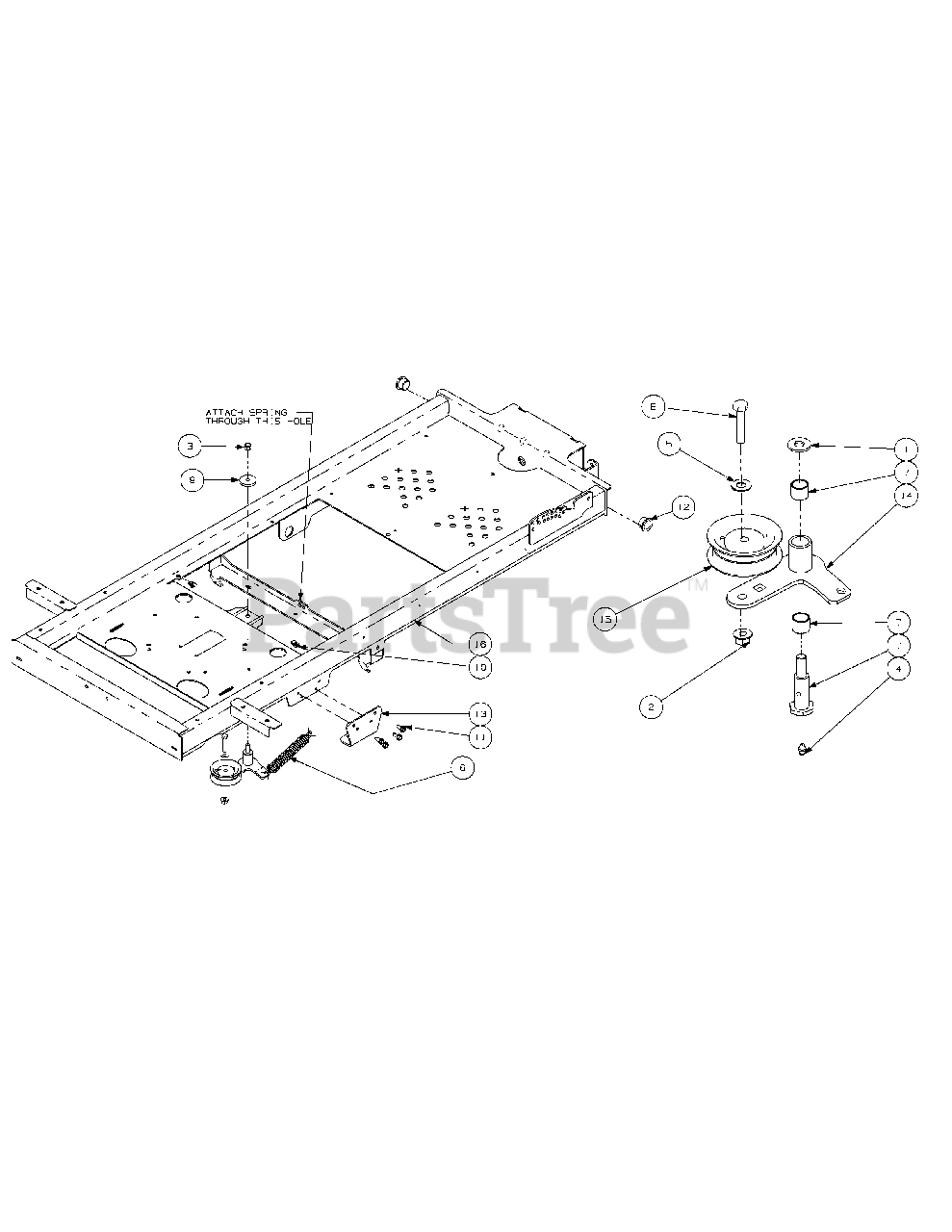

Z-Force 44 (17AF3AGL010) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Frame Assembly Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 00006168

Flat Washer, 3/8 zinc
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 712-05007

Hex Nut, 3/8-16 Flange Lock

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-0290

Nylock Nut, 7/16-14

$4.99

$

In Stock, Qty 11

0

4

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

5

Cub Cadet 00061053

Washer, 3/8, SS

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01000199

Extension Spring, 1.00 OD x 5.00 lg

$17.99

$

In Stock, only 4 left!

0

7

Cub Cadet 738-3108

Shoulder Bolt
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

8

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1-3/4

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

10

Cub Cadet 01008539P

U-Nut, 1/4-20
(Superseded to 726-3054)

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04484

Self Tapping Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 741-04552

Bronze Bushing, 1.00 ID x 1.50 OD

$9.49

$

In Stock, only 2 left!

0

13

Cub Cadet 02002641-0637

Transmission Mounting Bracket

$22.99

$

In Stock, only 1 left!

0

14

Cub Cadet 02003641

Idler Arm Assembly includes:

$136.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 741-04555

Bearing Sleeve

Note: not shown

$16.99

$

In Stock, Qty 18

0

15

Cub Cadet 02004558

Flat Idler Pully

$22.99

$

In Stock, only 2 left!

0

16

Cub Cadet 02004865-0637

Frame Assembly Weldment

$

$

Not available
