Z-Force 44 (17AE3AGF010) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kohler Deck Assembly 44-Inch Parts Diagram

44" Z-Force Zero-Turn Mower, Kohler

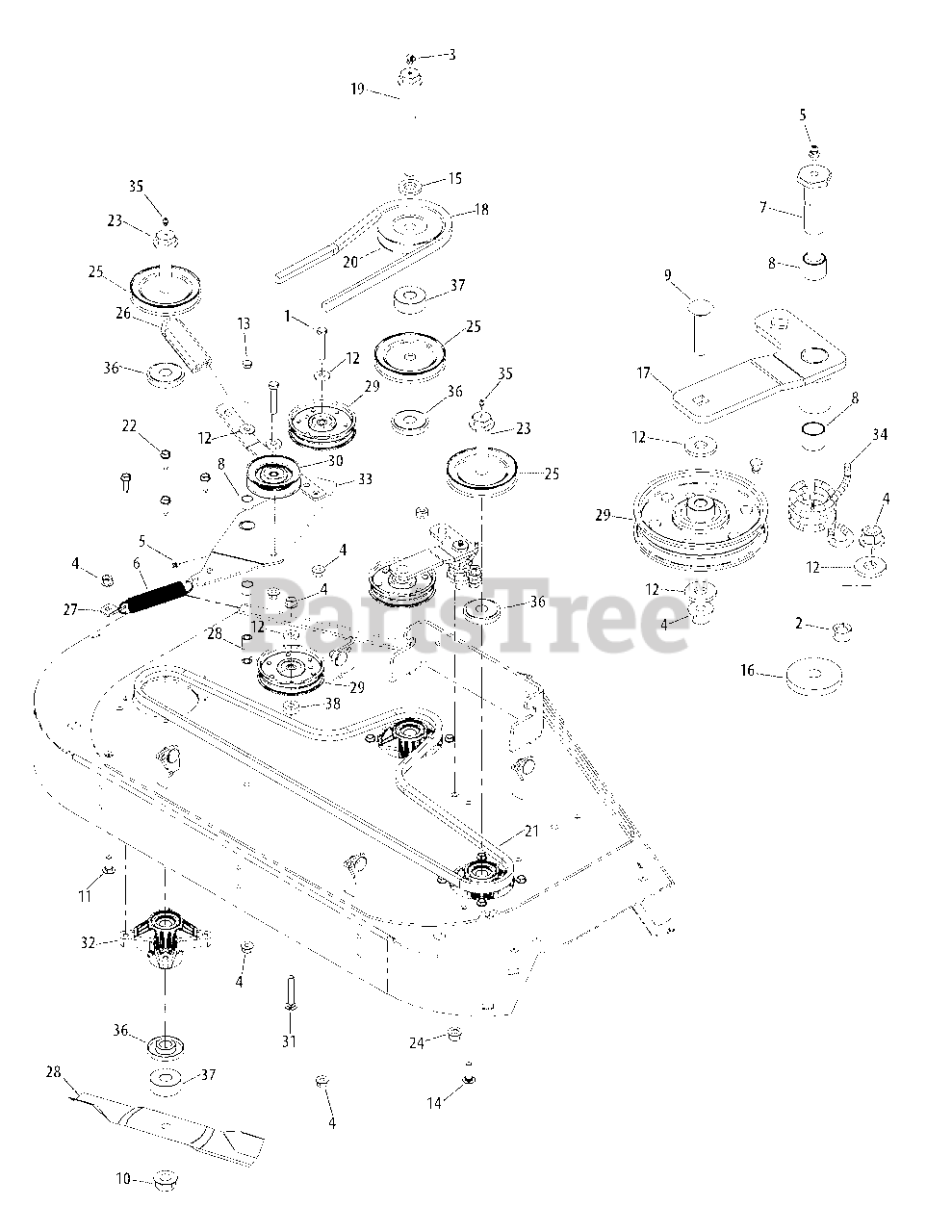

Deck Assembly 44-Inch Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Screw, 3.8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 912-3017

Nut, 3.8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 737-3004

Grease Fitting, 1.4-28 x .788

$11.99

$

In Stock, Qty 6

0

4

Cub Cadet 00022560

Flange Counterlock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00060078

Grease Fitting, 1.4-28
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

6

Cub Cadet 01000199

Extension Spring, 1.00 x 5.00 x .125

$17.99

$

In Stock, only 4 left!

0

7

Cub Cadet 01000302

Shoulder Bolt, .625 x 1.95
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

8

Cub Cadet 01000308

Sleeve Bearing, .628 x .753 x .625
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

9

Cub Cadet 710-0560

Carriage Bolt, 3.8-18 x 1.75

$6.99

$

In Stock, Qty 11

0

10

Cub Cadet 712-3078

Flange Nut, 3.4-16

$9.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01000643

Carriage Bolt, 3.8-16 x 1.00

$5.49

$

In Stock, Qty 7

0

12

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3022

Hex Screw, 3.8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

14

Cub Cadet 710-3034

Carriage Bolt, 3.8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

15

Cub Cadet 01003123

Spacer, .812 x 1.47 x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 01003269

Washer, .438 x 1.75 x .250
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

17

Cub Cadet 01005737

Idler Arm Assembly

$108.99

$

In Stock, only 2 left!

0

18

Cub Cadet 01009787

V-Belt
(Superseded to 01009787P)

$114.99

$

In Stock, only 1 left!

0

19

Cub Cadet 02000071

Spindle Bolt, 3.4-16 x 7.155

$39.99

$

In Stock, only 4 left!

0

20

Cub Cadet 02000079

Pulley

$111.99

$

In Stock, only 4 left!

0

21

Cub Cadet 02000103

V-Belt
(Superseded to 02000103P)

$87.99

$

In Stock, only 2 left!

0

22

Cub Cadet 02000762

Hex Washer Screw, 5.16-18 x 1.00
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 02000819

Spindle Bolt, 3.4-16 x 5.37

$36.99

$

In Stock, only 1 left!

0

24

Cub Cadet 02000948

Flange Lock Nut, 7.16-14
(Superseded to 712-04337)

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 756-3089

V-Type Pulley

$36.99

$

In Stock, only 3 left!

0

26

Cub Cadet 02003740

Flat Grip, 1.0 x 3.2 x .25

$10.99

$

In Stock, only 1 left!

0

27

Cub Cadet 02004195

Spring Mount Bracket

$31.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02005020

Hi-Lift Blade, 16"
(Superseded to 02005020-0637)

Variations

Cub Cadet 02005020-0637

Mower Blade, 15.94" Lg Hi-Lift Powder Black - POWDER BLACK (0637)

$28.99

$

In Stock, Qty 8

0

$28.99

$

In Stock, Qty 8

0

29

Cub Cadet 02005077

Riveted Idler Pulley

$35.99

$

In Stock, Qty 20+

0

30

Cub Cadet 02005078

V-Type Idler Pulley

$36.99

$

In Stock, only 4 left!

0

31

Cub Cadet 02005526

Carriage Bolt, 3.8-16 x 2.25
(Superseded to 710-06072)

$6.49

$

In Stock, only 1 left!

0

32

Cub Cadet 918-04426

Deck Spindle Assembly

$112.99

$

In Stock, Qty 20+

0

33

Cub Cadet 853-000029

Weld Idler Double

$

$

Not available

34

Cub Cadet 732-3067

Torsion Spring, 1.10 x 1.3

$23.99

$

In Stock, only 1 left!

0

35

Cub Cadet 937-3000

Drive Lube Fitting

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 748-3065A

Spindle Deck Spacer

$13.99

$

In Stock, Qty 14

0

37

Cub Cadet 750-05184

Spacer, .760 x 2.000 x .790

$37.99

$

In Stock, only 4 left!

0

38

Cub Cadet 750-3119

Spacer, .406 x 1.00 x .38

$11.99

$

In Stock, only 4 left!

0

Cub Cadet 02003700-0637

Deck Assembly

Note: Not Shown

$

$

Not available
