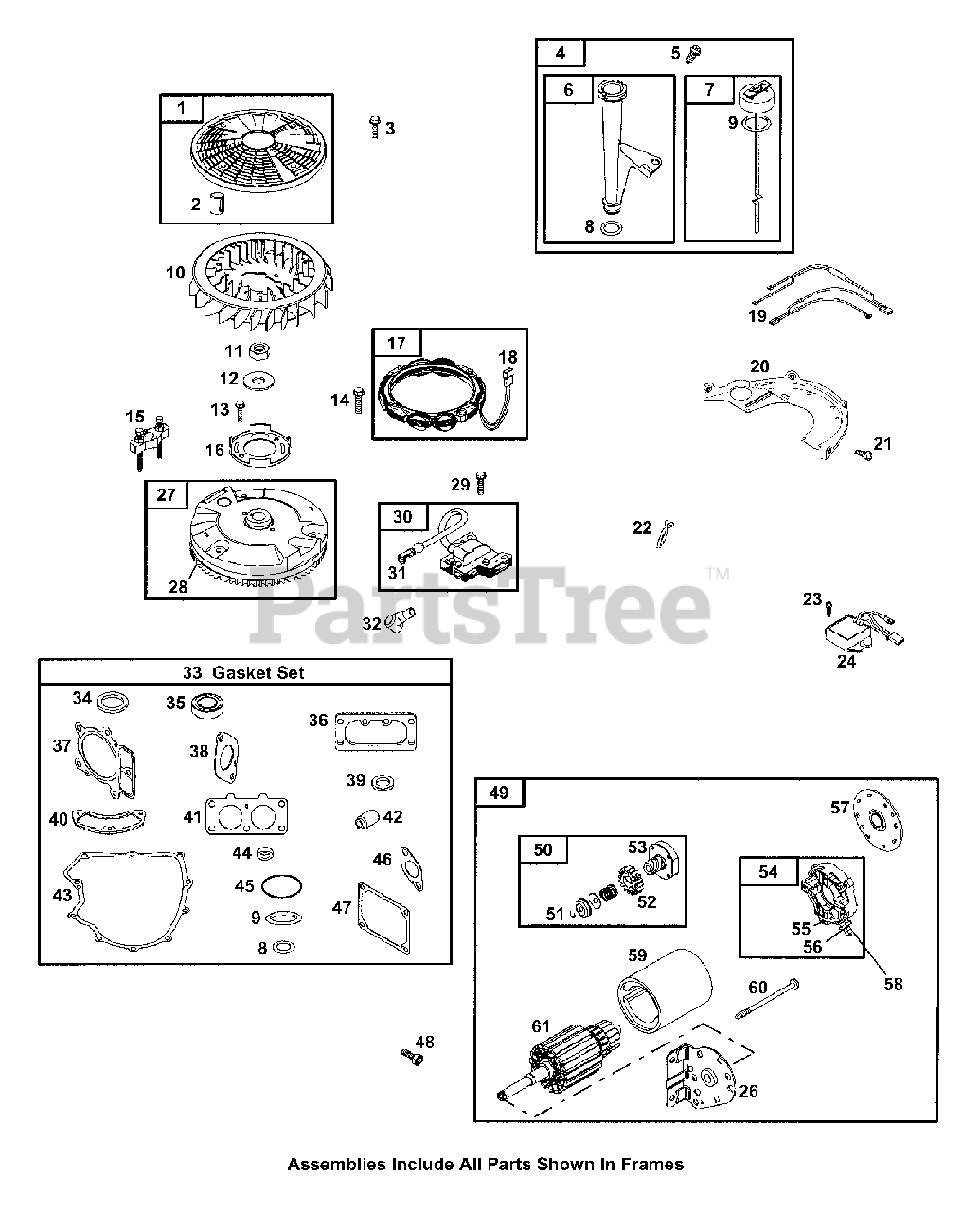

Z-Force 18 (53AA5A5L100) - Cub Cadet 44" Z-Force Zero-Turn Mower, Briggs & Stratton Engine (Part 3) Parts Diagram

44" Z-Force Zero-Turn Mower, Briggs & Stratton

Engine (Part 3) Parts Diagram

  • Title

1

Cub Cadet BS-691055

Rotating Screen
(Superseded to BS-494439)

$53.99

$

In Stock, Qty 10

0

2

Cub Cadet BS-691215

Spacer

$7.49

$

In Stock, only 1 left!

0

3

Cub Cadet BS-691057

Screw (Rotating Screen)

$

$

Not available

4

Cub Cadet BS-499602

Dipstick/Tube Assembly

$

$

Not available

5

Cub Cadet BS-690960

Screw (Dipstick Tube)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet BS-691037

Dipstick Tube

$

$

Not available

7

Cub Cadet BS-691036

Dipstick
(Superseded to BS-594528)

$18.99

$

In Stock, only 1 left!

0

8

Cub Cadet BS-691032

Dipstick Tube Seal

$5.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-499602

Dipstick/Tube Seal

$

$

Not available

10

Cub Cadet BS-691243

Flywheel Fan
(Superseded to BS-790692)

$

$

Not available

11

Cub Cadet BS-691059

Nut (Flywheel)

$4.49

$

In Stock, only 1 left!

0

12

Cub Cadet BS-691056

Washer (Flywheel)

$9.49

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-94627

Screw (Fan-Retainer)

$

$

Not available

14

Cub Cadet BS-93621

Screw (Alternator)
(Superseded to BS-691183)

$

$

Not available

15

Cub Cadet BS-19203

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-691247

Fan Retainer

$

$

Not available

17

Cub Cadet BS-393295

Alternator (Dual Circuit)
(Superseded to BS-592830)

$101.99

$

In Stock, Qty 20+

0

18

Cub Cadet BS-393456

Alternator Connector/Wire

$20.99

$

In Stock, only 1 left!

0

19

Cub Cadet BS-691220

Wiring Harness

$43.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-691009

Back Plate

$

$

Not available

21

Cub Cadet BS-690960

Screw (Back Plate)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-694123

Wire Clip

$4.49

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-690960

Screw (Regulator)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet BS-394890

Regulator (Regulated-16 Amp)
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 20+

0

26

Cub Cadet BS-691283

Drive Cap

$83.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-691053

Flywheel
(Superseded to BS-84004658)

$255.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-499612

Gear-Ring

$71.99

$

In Stock, Qty 20+

0

29

Cub Cadet BS-94731

Screw (Magneto Armature)

$

$

Not available

30

Cub Cadet BS-691060

Magneto Armature
(Superseded to BS-592846)

$56.99

$

In Stock, Qty 20+

0

31

Cub Cadet BS-493880

Sparkplug Terminal
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

32

Cub Cadet BS-66538

Sparkplug Boot
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 7

0

33

Cub Cadet BS-499889

Engine Gasket Set
(Superseded to BS-694012)

$113.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-391086

Oil Seal (Magneto Side)
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

35

Cub Cadet BS-690947

Oil Seal (PTO Side)
(Superseded to BS-795387)

$7.49

$

In Stock, Qty 20+

0

36

Cub Cadet BS-691001

Air Cleaner Gasket

$3.49

$

In Stock, Qty 5

0

37

Cub Cadet BS-690962

Cylinder Head Gasket
(Superseded to BS-693997)

$24.99

$

In Stock, Qty 20+

0

38

Cub Cadet BS-690949

Intake Gasket

$3.49

$

In Stock, Qty 20+

0

39

Cub Cadet BS-690997

Sealing Washer

$7.99

$

In Stock, Qty 6

0

40

Cub Cadet BS-690937

Breather Gasket

$8.49

$

In Stock, only 1 left!

0

41

Cub Cadet BS-690950

Intake Gasket

$2.99

$

In Stock, Qty 17

0

42

Cub Cadet BS-690968

Valve Seal

$10.99

$

In Stock, Qty 20+

0

43

Cub Cadet BS-690945

Crankcase Gasket
(Superseded to BS-594195)

$37.99

$

In Stock, Qty 20+

0

44

Cub Cadet BS-690657

Governor Shaft Seal
(Superseded to BS-790574)

$5.99

$

In Stock, Qty 20+

0

45

Cub Cadet BS-690589

O-Ring Seal (Oil Pump Cover)

$8.99

$

In Stock, Qty 20+

0

46

Cub Cadet BS-690970

Exhaust Gasket

$4.99

$

In Stock, Qty 20+

0

47

Cub Cadet BS-690971

Rocker Cover Gasket

$7.49

$

In Stock, Qty 20+

0

48

Cub Cadet BS-94951

Screw (Drive Cap)
(Superseded to BS-791680)

$3.99

$

In Stock, Qty 6

0

49

Cub Cadet BS-691262

Starter Motor
(Superseded to BS-795121)

$143.99

$

In Stock, Qty 20+

0

50

Cub Cadet BS-497606

Starter Drive
(Superseded to BS-696541)

$

$

Not available

51

Cub Cadet BS-263080

Retaining Ring
(Superseded to BS-691265)

$5.49

$

In Stock, Qty 7

0

52

Cub Cadet BS-693058

Pinion Gear
(Superseded to BS-695708)

$6.99

$

In Stock, only 3 left!

0

53

Cub Cadet BS-398003

Drive Clutch
(Superseded to BS-692024)

$21.99

$

In Stock, only 2 left!

0

54

Cub Cadet BS-497605

Brush Retainer
(Superseded to BS-691293)

$29.99

$

In Stock, Qty 6

0

55

Cub Cadet BS-497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

56

Cub Cadet BS-693167

Nut (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

57

Cub Cadet BS-497607

End Cap

$

$

Not available

58

Cub Cadet BS-92278

Nut (Brush Retainer)
(Superseded to 912-0121)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet BS-691262

Housing-Starter
(Superseded to BS-795121)

$143.99

$

In Stock, Qty 20+

0

60

Cub Cadet BS-95035

Bolt (Starter Motor)

$

$

Not available

61

Armature (Serviced By Starter Only)

$

$

Not available
