Z-Force 15 (53AA5D2L100) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kawasaki Valve/Camshaft Parts Diagram

44" Z-Force Zero-Turn Mower, Kawasaki

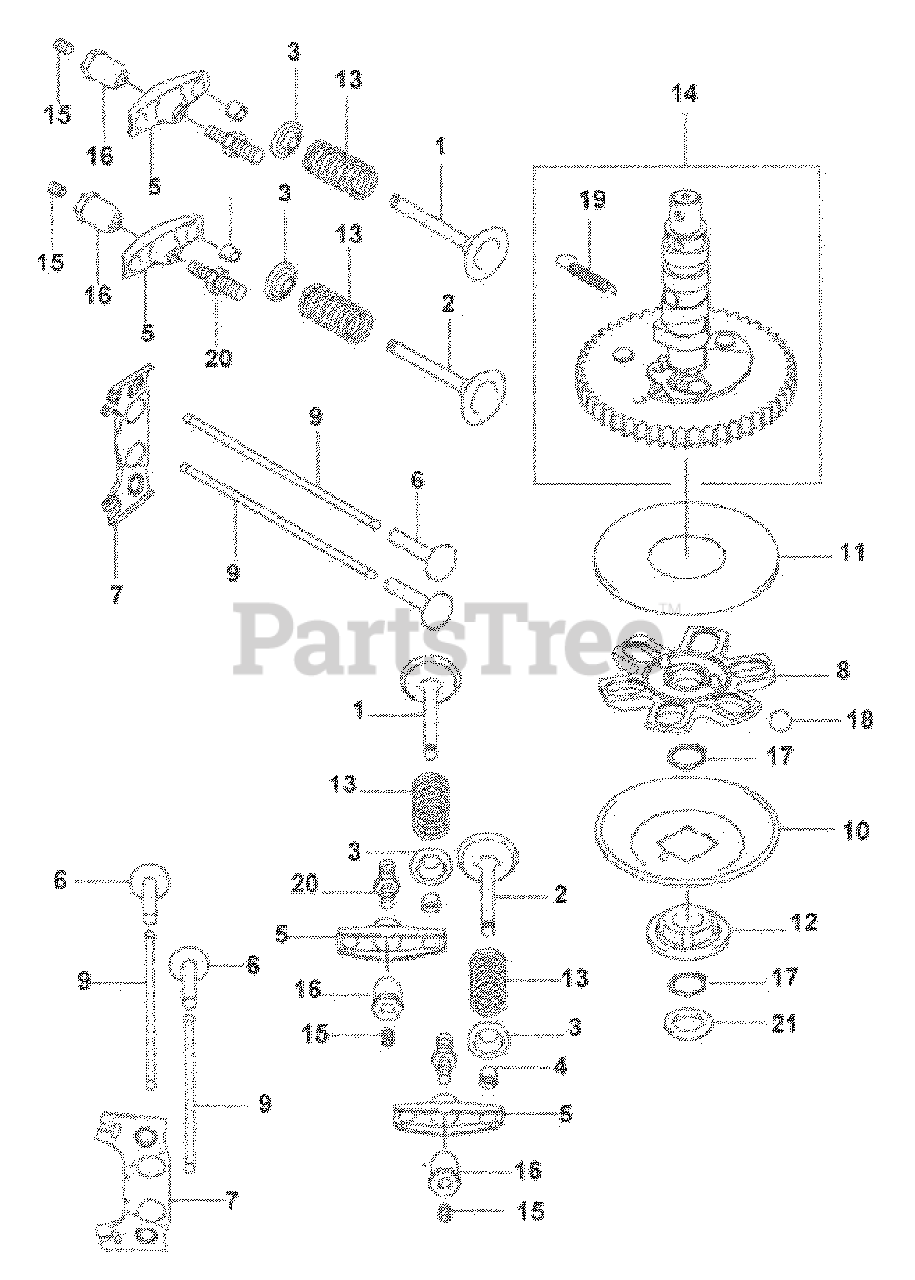

Valve/Camshaft Parts Diagram

  • Title

1

Cub Cadet KM-12004-7003

Intake Valve
(Superseded to KM-12004-7001)

$16.99

$

In Stock, only 3 left!

0

2

Cub Cadet KM-12005-7003

Exhaust Vale
(Superseded to KM-12005-7001)

$29.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-12009-7001

Valve Spring Retainer

$2.49

$

In Stock, Qty 5

0

4

Cub Cadet KM-12011-2056

Collet

$2.99

$

In Stock, Qty 20+

0

5

Cub Cadet KM-12016-7001

Rocker Arm
(Superseded to KM-12016-7008)

$7.99

$

In Stock, Qty 12

0

6

Cub Cadet KM-12032-7001

Tappet

$8.99

$

In Stock, only 3 left!

0

7

Cub Cadet KM-13070-7001

Guide

$4.99

$

In Stock, Qty 18

0

8

Cub Cadet KM-13070-7004

Guide

$5.99

$

In Stock, only 2 left!

0

9

Cub Cadet KM-13116-2057

Push Rod

$4.99

$

In Stock, Qty 9

0

10

Cub Cadet KM-13271-7021

Governor Plate

$5.49

$

In Stock, Qty 13

0

11

Cub Cadet KM-13271-7007

Plate

$5.49

$

In Stock, only 3 left!

0

12

Cub Cadet KM-42036-7009

Sleeve
(Superseded to KM-42036-7010)

$5.99

$

In Stock, only 1 left!

0

13

Cub Cadet KM-49078-7001

Valve Spring

$6.99

$

In Stock, Qty 19

0

14

Cub Cadet KM-49118-7002

Camshaft

$

$

Not available

15

Cub Cadet KM-92009-2341

Screw

$2.49

$

In Stock, only 3 left!

0

16

Cub Cadet KM-92015-2253

Nut

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet KM-92033-7001

Snap Ring
(Superseded to KM-92033-0778)

$0.99

$

In Stock, Qty 9

0

18

Cub Cadet KM-92140-7002

Ball
(Superseded to KM-92140-7005)

$2.49

$

Usually ships in 3-6 days

0

19

Cub Cadet KM-92145-7001

Spring
(Superseded to KM-92145-1653)

$1.49

$

In Stock, only 4 left!

0

20

Cub Cadet KM-92153-7019

Bolt

$2.49

$

Usually ships in 2-5 days

0

21

Cub Cadet KM-92200-7001

Washer

$1.99

$

In Stock, Qty 11

0
