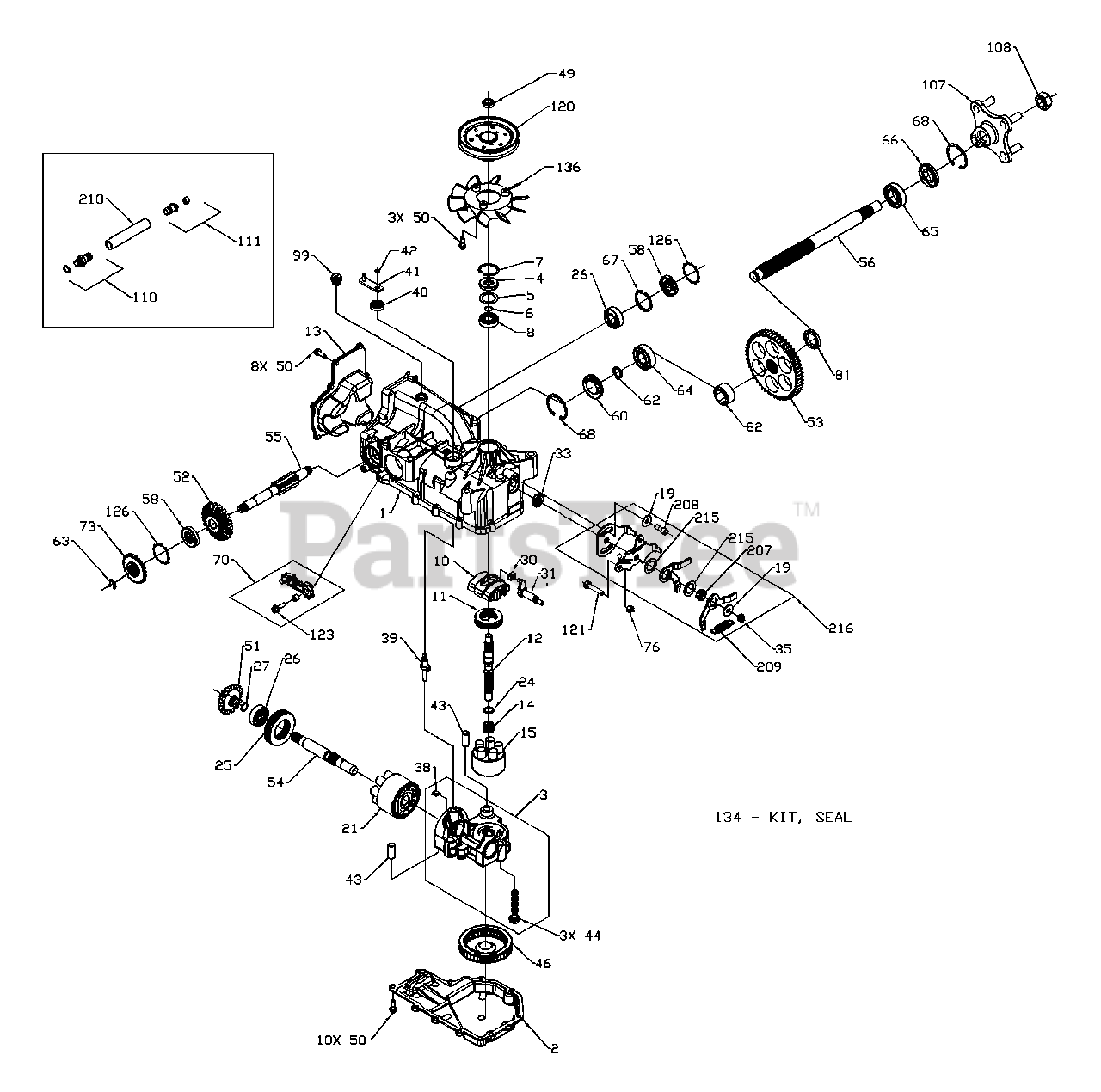

Z-Force 15 (53AA5D2L100) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kawasaki Transmission RH Parts Diagram

44" Z-Force Zero-Turn Mower, Kawasaki

Transmission RH Parts Diagram

  • Title

1

Cub Cadet HG-70627

KIT, HOUSING-MAIN

$

$

Not available

HOUSING, MAIN

$

$

Not available

CRADLE BEARING

$

$

Not available

TRUNNION BUSHING

$

$

Not available

SEAL, LIP 12 x 25 x 7

$

$

Not available

SCREW, HFHC 1/4-28 x 7/8 (PATCH)

$

$

Not available

2

Cub Cadet HG-50890RM

LOWER HOUSING

$

$

Not available

3

Cub Cadet HG-70667

KIT, CENTER SECTION

$290.99

$

Usually ships in 3-6 days

0

CENTER SECTION

$

$

Not available

BUSHING .67 x 1.03 x .75

$

$

Not available

PLATE, BYPASS

$

$

Not available

BOLT, HEX FLANGE 3/8-24 x 2.5

$

$

Not available

CHECK PLUG ASSEMBLY, .027

$

$

Not available

4

Cub Cadet HG-9008000-0128

SEAL, LIP 15 x 35 x 7

$19.99

$

In Stock, only 2 left!

0

5

Cub Cadet HG-2003018

SPACER

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet HG-2003016

RING, WIRE RETAINING

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-2003052

RING, RETAINING

$7.99

$

Usually ships in 3-6 days

0

8

Cub Cadet HG-2003043

BALL BEARING
(Superseded to HG-2003043P)

$73.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-2003087

VARIABLE SWASHPLATE

$220.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-50551

THRUST BEARING 30 x 52 x 13
(Superseded to HG-50551P)

$29.99

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-50005

SHAFT, INPUT

$

$

Not available

13

Cub Cadet HG-50891RM

COVER-BACK
(Superseded to HG-52169)

$65.99

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-2003014

SPRING, BLOCK

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet HG-70331

10cc CYLINDER BLOCK ASSY.

$188.99

$

Usually ships in 3-6 days

0

10cc CYLINDER BLOCK

$

$

Not available

10cc PISTON SPRING

$

$

Not available

PISTON SEAT WASHER

$

$

Not available

10cc PISTON

$

$

Not available

19

Cub Cadet HG-44130

WASHER, .34 x .88 x .06
(Superseded to 736-0371)

$4.49

$

In Stock, only 3 left!

0

21

Cub Cadet HG-70082

21cc CYLINDER BLOCK ASSY.
(Superseded to HG-72159)

$106.99

$

Usually ships in 3-6 days

0

21cc CYLINDER BLOCK

$

$

Not available

21cc PISTON SPRING

$

$

Not available

PISTON SEAT WASHER

$

$

Not available

21cc PISTON

$

$

Not available

24

Cub Cadet HG-2003017

WASHER, BLOCK THRUST

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet HG-50552

THRUST BEARING 42 x 68 x 16
(Superseded to HG-53341)

$37.99

$

Usually ships in 3-6 days

0

26

Cub Cadet HG-50315

BALL BEARING

$18.99

$

Usually ships in 3-6 days

0

27

Cub Cadet HG-2000022

RING, WIRE RETAINING

$4.49

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-2000015

SLOT GUIDE

$21.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-50807

TRUNNION ARM

$

$

Not available

33

Cub Cadet HG-9008000-0126

SEAL, LIP 12 x 25 x 7

$15.99

$

Usually ships in 3-6 days

0

35

Cub Cadet HG-50108

NUT, HEX LOCK LOCK 5/16-24 UNJF
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

38

Cub Cadet HG-70680

KIT, BYPASS PLATE

$

$

Not available

PLATE, BYPASS (BREAD)

$

$

Not available

PLATE, BYPASS

$

$

Not available

39

Cub Cadet HG-2003555

BYPASS ACTUATOR

$

$

Not available

40

Cub Cadet HG-45074

SEAL, LIP 10 x 25 x 7

$

$

Not available

41

Cub Cadet HG-50270

ARM, BYPASS

$

$

Not available

42

Cub Cadet HG-44870

RING, RETAINING

$

$

Not available

43

Cub Cadet HG-50002

PIN, HOLLOW .39 x .5 x 1

$7.99

$

Usually ships in 3-6 days

0

44

Cub Cadet HG-50016

BOLT, HEX FLANGE 3/8-24 x 2.5

$4.99

$

Usually ships in 3-6 days

0

46

Cub Cadet HG-50990

FILTER

$112.99

$

Usually ships in 3-6 days

0

49

Cub Cadet HG-51244

HEX LOCK NUT 1/2-20 (NYLON INSERT)
(Superseded to 912-0346)

$4.99

$

In Stock, Qty 6

0

50

Cub Cadet HG-50752

SCREW, 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

51

Cub Cadet HG-50744

14T BEVEL GEAR

$

$

Not available

52

Cub Cadet HG-50745

19T BEVEL GEAR

$

$

Not available

53

Cub Cadet HG-50746

53T SPUR GEAR

$

$

Not available

54

Cub Cadet HG-50757

SHAFT, MOTOR

$

$

Not available

55

Cub Cadet HG-51298

SHAFT, BRAKE

Note: (purchase from Hydro Gear)

$

$

Not available

56

Cub Cadet HG-50748

SHAFT, AXLE

$

$

Not available

58

Cub Cadet HG-51161

SEAL, LIP 17 x 40 x 7

$11.99

$

Usually ships in 3-6 days

0

60

Cub Cadet HG-50995

SEAL PLUG-SIDE

$

$

Not available

62

Cub Cadet HG-50759

RING, RETAINING-AXLE

$

$

Not available

63

Cub Cadet HG-51109

RING, RETAINING

$

$

Not available

64

Cub Cadet HG-50743

BEARING-BALL 20 x 47 x 14 (6204)

$

$

Not available

65

Cub Cadet HG-50740

BEARING-BALL 25 x 47 x 12 (6005)

$25.99

$

Usually ships in 3-6 days

0

66

Cub Cadet HG-50751

SEAL, LIP 25 x 47 x 7

$7.49

$

In Stock, only 1 left!

0

67

Cub Cadet HG-50329

RING, RETAINING

$11.99

$

Usually ships in 3-6 days

0

68

Cub Cadet HG-50760

RING, RETAINING-AXLE

$

$

Not available

70

Cub Cadet HG-70392

ASSEMBLY, BRAKE ARM SERVICE

$22.99

$

Usually ships in 3-6 days

0

ARM, BRAKE ZINC

$

$

Not available

CLEVIS PIN

$

$

Not available

CLEVIS PIN

$

$

Not available

BUSHING .255 x .394 x .330

$

$

Not available

SCREW, HFHC 1/4-28 x 7/8 (PATCH)

$

$

Not available

73

Cub Cadet HG-50754

BRAKE DISC

$

$

Not available

76

Cub Cadet HG-43083

NUT, HEX 5/16-18

$

$

Not available

81

Cub Cadet HG-50942-2

AXLE BUSHING

$

$

Not available

82

Cub Cadet HG-50942-1

AXLE BUSHING
(Superseded to HG-71062)

$

$

Not available

99

Cub Cadet HG-9005200-5600

PLUG, PLASTIC (Shipping)

Note: (purchase from Hydro Gear)

$

$

Not available

107

Cub Cadet HG-70314

HUB ASSEMBLY
(Superseded to HG-72073)

$214.99

$

Usually ships in 3-6 days

0

HUB

$

$

Not available

LUG BOLT

$

$

Not available

108

Cub Cadet HG-50863

NUT, HEX 3/4-16
(Superseded to 912-3018)

$

$

Not available

110

Cub Cadet HG-70110

FITTING O-RING ASSEMBLY

$31.99

$

In Stock, Qty 8

0

PLASTIC HOSE FITTING

$

$

Not available

O-RING

$

$

Not available

111

Cub Cadet HG-70109

CAP VENT ASSEMBLY

$12.99

$

Usually ships in 3-6 days

0

CAP-POPPET VALVE

$

$

Not available

PLASTIC VENT

$

$

Not available

120

Cub Cadet N/A

PULLEY, 4.5 x 1.625

Note: (furnish HG-70591 Kit)

$

$

Currently unavailable

120

Cub Cadet HG-70591

KIT, FAN/PULLEY

$

$

Currently unavailable

121

Cub Cadet HG-51753

BOLT, 5/16-18 x 1.50

$

$

Not available

123

Cub Cadet HG-51576

SCREW, HFHC 1/4-28 x 7/8 (PATCH)

$

$

Not available

126

Cub Cadet HG-51316

RING, RETAINING

$

$

Not available

134

Cub Cadet HG-70553

KIT, SEAL

$

$

Not available

136

Cub Cadet HG-51365

FAN, 6" 10 BLADE

$

$

Not available

207

Cub Cadet HG-51396

SPACER, RTN

$

$

Not available

208

Cub Cadet HG-51400

SHCS 5/16-24 x .75 (PATCH)

$

$

Not available

209

Cub Cadet HG-51399

SPRING, EXTENSION
(Superseded to HG-52401)

$4.99

$

In Stock, only 2 left!

0

210

Cub Cadet HG-51401

HOSE .5 x 4

$

$

Not available

215

Cub Cadet HG-51408

WASHER, PLASTIC 1.19 x .7

$

$

Not available

216

Cub Cadet HG-70609

KIT, RTN SCISSOR

$

$

Not available

WASHER, .34 x .88 x .06

$

$

Not available

NUT, HEX LOCK 5/16-24 UNJF

$

$

Not available

ARM, RTN

$

$

Not available

ARM, RTN SCISSOR, INNER

$

$

Not available

ARM, RTN SCISSOR, OUTER

$

$

Not available

ARM, CONTROL

$

$

Not available

SPACER, RTN

$

$

Not available

SPRING, EXTENSION

$

$

Not available

SHCS 5/16-24 x .75 (PATCH)

$

$

Not available

WASHER, PLASTIC 1.19 x .7

$

$

Not available

Cub Cadet HG-50928

Sealant

Note: (Not shown)

$103.99

$

In Stock, Qty 8

0
