Z-Force 15 (53AA5D2L100) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kawasaki Engine Assembly - 15HP Kawasaki Parts Diagram

44" Z-Force Zero-Turn Mower, Kawasaki

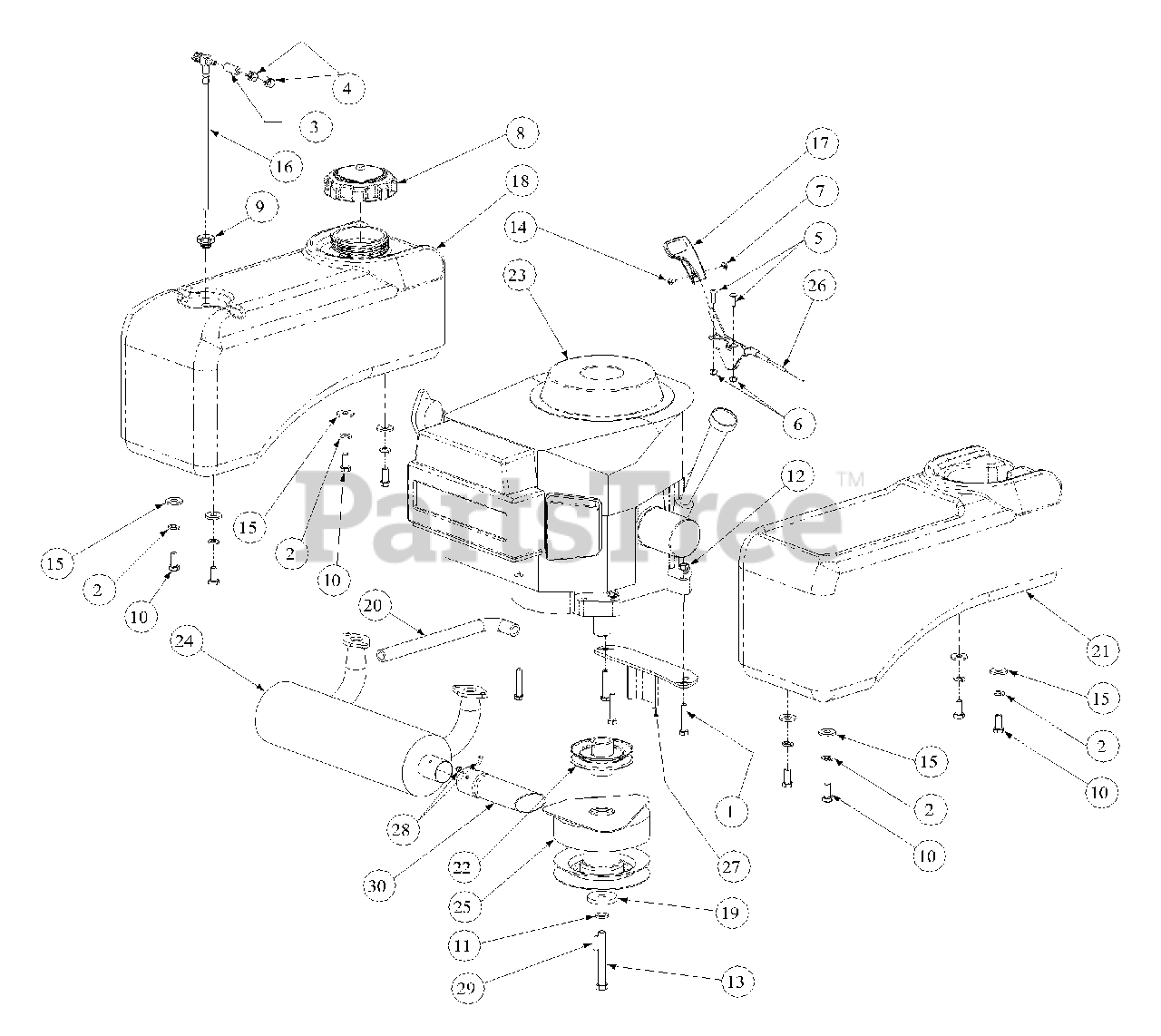

Engine Assembly - 15HP Kawasaki Parts Diagram

  • Title

1

Cub Cadet 00006129

Hex Head Cap Screw, 5/16-18 x 1-3/4

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012157

Lock Washer, 3/8 Zinc
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

3

Hose, 1/4" Fuel Line

$

$

Not available

4

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

5

Cub Cadet 00014602

Round Head Machine Screw, 10-32 x 3/4

$

$

Not available

6

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

7

Cub Cadet 00060056

Nut, w/ Star Washer

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 01000069

Fuel Cap
(Superseded to 951-3124E)

$36.99

$

In Stock, only 1 left!

0

9

Cub Cadet 01000281

Fuel Tank Groment
(Superseded to 02002253)

$4.99

$

In Stock, only 2 left!

0

10

Cub Cadet 01000368

Hex Cap Screw, 3/8-16 x .88
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

11

Cub Cadet 01000389

Lock Washer, 7/16
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 5

0

12

Cub Cadet 01000635

Lock Nut, Hex Flange, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 01008637

Hex Cap Screw, 7/16-20 x 4.0
(Superseded to 710-04248)

$10.99

$

In Stock, only 1 left!

0

14

Cub Cadet 01000721

Machine Screw, 8-32 x .375
(Superseded to 710-3217)

$6.99

$

In Stock, Qty 7

0

15

Cub Cadet 01000723

Flat Washer, .406 ID x 1.0 OD x .105
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 01003116

Fuel Pickup Fitting

$58.99

$

In Stock, only 4 left!

0

17

Cub Cadet 01004004

Throttle Control Knob
(Superseded to 731-04914)

$13.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01004350

Fuel Tank

$

$

Not available

19

Cub Cadet 01005314

Flat Washer, 7/16 ID x 1.75 OD x .250
(Superseded to 736-04131)

$15.99

$

In Stock, only 1 left!

0

20

Cub Cadet 01006223

Oil Drain Extension Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

21

Cub Cadet 01008138

Utility Bin
(Superseded to 01008138P)

$198.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01008381

Electric PTO Engine Pulley
(Superseded to 02003417)

Note: (Discontinued)

$62.99

$

In Stock, Qty 9

0

Cub Cadet 01008808

Electric PTO Engine Pulley
(Superseded to 02003417)

$62.99

$

In Stock, Qty 9

0

23

Cub Cadet 01008415

15HP Twin Kawasaki Engine
(Superseded to 01008415P)

$

$

Not available

24

Cub Cadet 01008424

Kawasaki Muffler
(Superseded to 01008424P)

$

$

Not available

25

Cub Cadet 01008544

Ogura JD08 Electric Clutch
(Superseded to 917-04127)

$604.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01008575

Choke Control Cable
(Superseded to 01008575P)

$

$

Not available

27

Cub Cadet 01008640

Clutch Retainer Assembly

$

$

Not available

28

Cub Cadet 01000811

Screw, 8-32 x .375, Hex Washer
(Superseded to 710-0148)

$4.49

$

In Stock, Qty 16

0

29

Cub Cadet 00025344

Key, 1/4 x 1/4 x 7/8

Note: (Discontinued)

$

$

Not available

Cub Cadet 01007533

Key, 1/4 x 1/4 x 2.75

$11.99

$

In Stock, only 1 left!

0

30

Cub Cadet 01008623

Exhaust Pipe

$

$

Not available
