Z-Force 15 (53AA5D2L100) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kawasaki Deck 44 Idler Driven Parts Diagram

44" Z-Force Zero-Turn Mower, Kawasaki

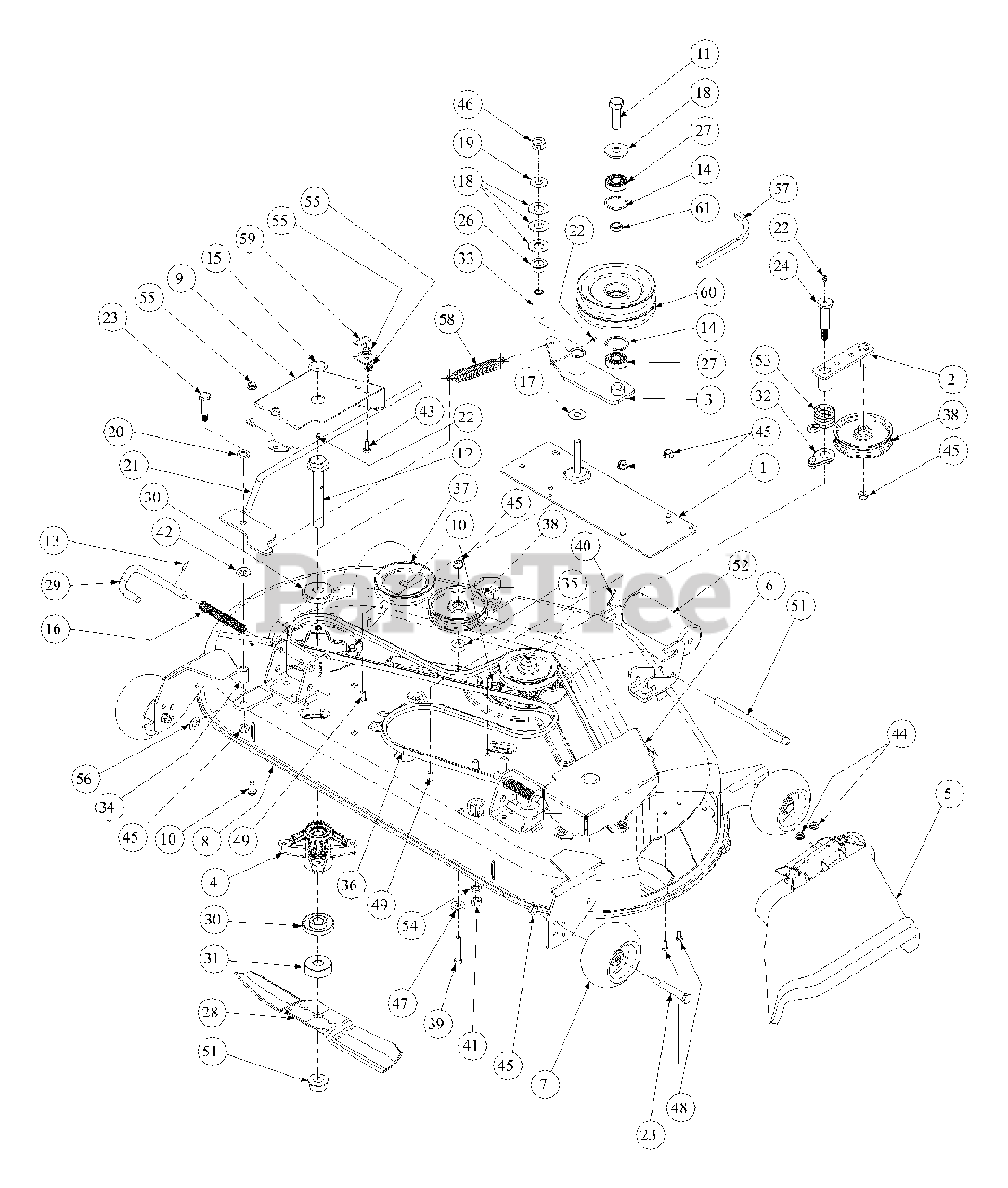

Deck 44 Idler Driven Parts Diagram

  • Title

1

Cub Cadet 01008590

Deck Mounting Plate Assembly

$

$

Not available

2

Cub Cadet 01008593

Idler Arm Assembly

$144.99

$

In Stock, only 2 left!

0

3

Cub Cadet 01008589

Idler Assembly

$139.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618-3129

Spindle Assembly
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0

5

Cub Cadet 631-0094

Chute Assembly
(Superseded to 631-0094B)

$78.99

$

In Stock, only 1 left!

0

6

Cub Cadet 01008587

Belt Cover Right Hand
(Superseded to 703-3743-4021)

$

$

Not available

7

Cub Cadet 703-1890

Deck Wheel
(Superseded to 703-1890A)

$39.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01008481

Deck Assembly 44"
(Superseded to 02000619)

$1536.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01008586

Belt Cover Left Hand
(Superseded to 703-3742-0716)

$53.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 01008620

Self Tapping Screw 5/16-18 x .750
(Superseded to 710-04484)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01008530

Hex Cap Screw 5/8-18 x 4.25
(Superseded to 01008530P)

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-1852

Spindle Bolt 3/4-16 x 5.37

$28.99

$

In Stock, only 2 left!

0

13

Cub Cadet 715-3003

Pin

$6.99

$

In Stock, Qty 7

0

14

Cub Cadet 716-3020

Internal Snap Ring
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 726-3045

Button Plug
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 7

0

16

Cub Cadet 732-0802

Compression Spring .63 OD x 6.3

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet 736-0100

Flat Washer .531 ID x 1.25 OD

$6.99

$

In Stock, Qty 7

0

18

Cub Cadet 736-0188

Flat Washer .76 ID x 1.49 OD

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0179

Flat Washer .50 ID x 1.25 OD

$4.99

$

In Stock, only 2 left!

0

20

Cub Cadet 01000873

Flat Washer .536 ID x .93 OD
(Superseded to 936-0160)

$4.49

$

In Stock, Qty 9

0

21

Cub Cadet 01008538

Deck Handle Weldment

$

$

Not available

22

Cub Cadet 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 738-3056

Shoulder Screw 1/2 x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

24

Cub Cadet 738-3172

Shoulder Screw .68 x 2.11

$20.99

$

In Stock, only 1 left!

0

?25

Cub Cadet 738-0213

Shoulder Screw .498 x 1.445

$7.99

$

In Stock, only 2 left!

0

26

Cub Cadet 741-0338

Flange Bearing .75 ID x .52

$9.49

$

In Stock, only 2 left!

0

27

Cub Cadet 741-0524

Bearing .625 ID x 1.574 OD
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

28

Cub Cadet 01008616

Blade
(Superseded to 02005020-0637)

$28.99

$

In Stock, Qty 8

0

29

Cub Cadet 747-3013

Support Pin

$22.99

$

In Stock, only 2 left!

0

30

Cub Cadet 748-3065

Spindle Spacer
(Superseded to 748-3065A)

$13.99

$

In Stock, Qty 14

0

31

Cub Cadet 748-3020

Blade Spacer
(Superseded to 948-3020)

$17.99

$

In Stock, only 2 left!

0

32

Cub Cadet 748-3100

Retainer Spring
(Superseded to 748-3100A)

$28.99

$

In Stock, only 1 left!

0

33

Cub Cadet 750-0656

Spacer .50 OD x .75 ID

$11.99

$

In Stock, only 1 left!

0

34

Cub Cadet 750-0150

Spacer .550 ID x .750 OD

$

$

Not available

35

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$11.99

$

In Stock, only 4 left!

0

36

Cub Cadet 754-3039

Belt
(Superseded to 954-3039)

$59.99

$

In Stock, only 2 left!

0

37

Cub Cadet 756-3089

Pulley

$36.99

$

In Stock, only 3 left!

0

38

Cub Cadet 01004081

Flat Pulley
(Superseded to 02005077)

$35.99

$

In Stock, Qty 20+

0

39

Cub Cadet 00002528

Hex Cap Screw 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

40

Cub Cadet 00003107

Cotter Pin .125 Dia x 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 00005763

Hex Nut 7/16-14
(Superseded to 912-3019)

$6.99

$

In Stock, only 1 left!

0

42

Cub Cadet 00010958

Flat Washer .50 ID x 1.065 OD

$

$

Not available

43

Cub Cadet 00013406

Hex Cap Screw 5/16-18 x .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 01002766

Nut, 1/4-20, hexflange Lock
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

45

Cub Cadet 00022560

Hex Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 00023287

Nut, 1/2-20, Center Lock
(Superseded to 712-0239)

$

$

Not available

47

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 01000038

Hex Cap Screw 1/4-20 x .620

$

$

Currently unavailable

49

Cub Cadet 01000372

Carriage Bolt 3/8-16 x .75
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

?50

Cub Cadet 01000375

Roller Pin 1/2 x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

51

Cub Cadet 01000380

Nut, 3/4-16, Hex Flange
(Superseded to 712-3078)

$9.99

$

In Stock, Qty 20+

0

52

Cub Cadet 01000385

Front Roller
(Superseded to 731-3005)

$28.99

$

In Stock, Qty 20+

0

53

Cub Cadet 732-3067

Idler Torsion Spring

$23.99

$

In Stock, only 1 left!

0

54

Cub Cadet 01000389

Lock Washer 7/16
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

55

Cub Cadet 01000635

Lock Nut 5/16-18 Hex Flange
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 01000930

Flat Washer .508 ID x 1.0 OD
(Superseded to 936-0369)

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 01002391

Belt
(Superseded to 01002391P)

$58.99

$

In Stock, Qty 5

0

58

Cub Cadet 01002874

Extension Spring .865 OD x 4.68

$11.99

$

In Stock, Qty 20+

0

59

Cub Cadet 01004863

Tension Rod Stop Bracket
(Superseded to 01004109)

$11.99

$

In Stock, only 1 left!

0

60

Cub Cadet 01008376

Double Pulley
(Superseded to 01008376P)

$113.99

$

In Stock, only 2 left!

0

61

Cub Cadet 01008404

Spacer .635 ID x .88 OD

$15.99

$

In Stock, only 1 left!

0
