Z-Force 15 (53AA5D2L100) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kawasaki Cooling System Parts Diagram

44" Z-Force Zero-Turn Mower, Kawasaki

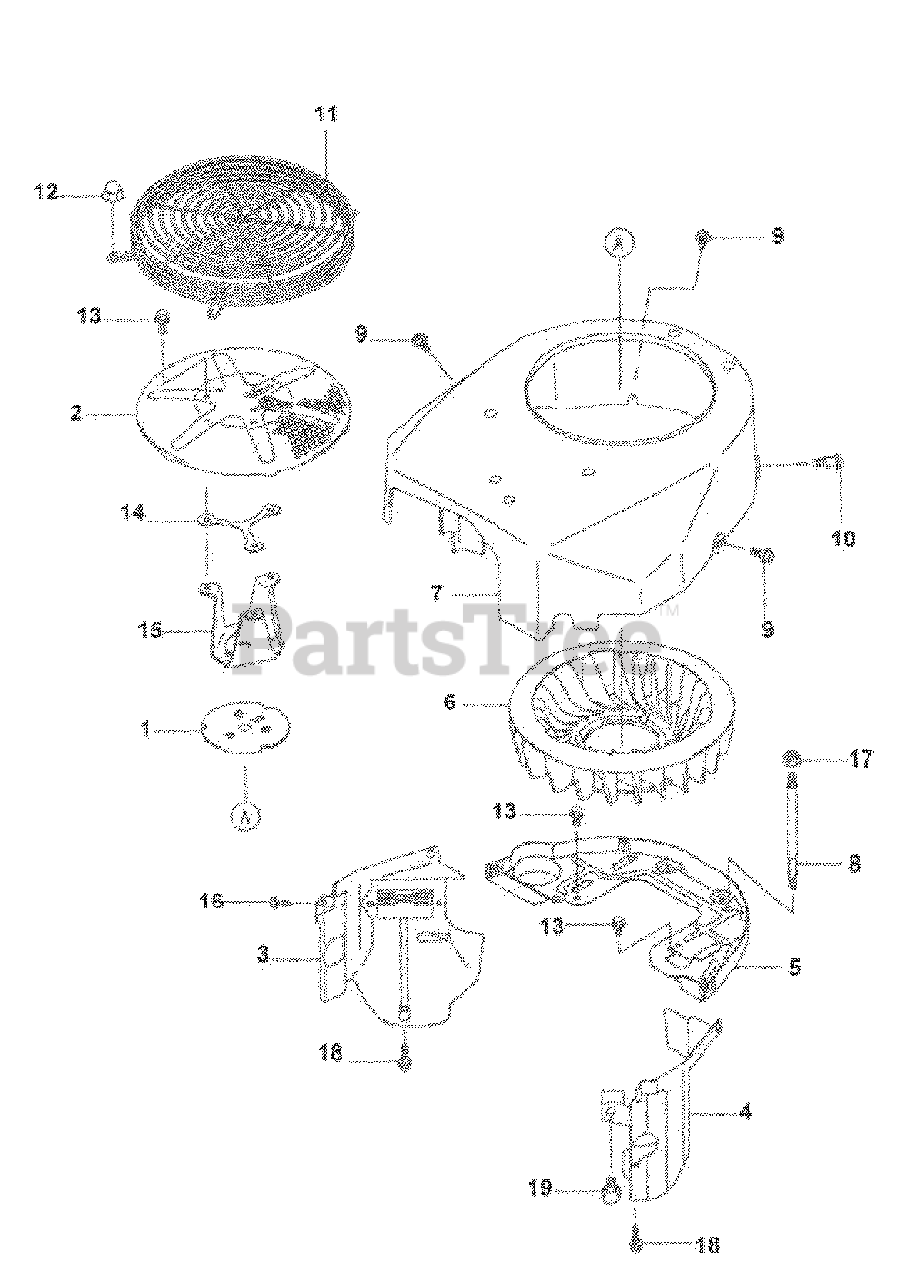

Cooling System Parts Diagram

  • Title

1

Cub Cadet KM-13270-7007

Plate

$5.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-14037-70109H

Screen
(Superseded to KM-14037-70209H)

$33.99

$

In Stock, Qty 12

0

3

Cub Cadet KM-49089-7034

Engine Shroud

$26.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-49089-7002

Engine Shroud

$28.99

$

In Stock, only 1 left!

0

5

Cub Cadet KM-49089-7032

Engine Shroud

$32.99

$

In Stock, only 1 left!

0

6

Cub Cadet KM-59041-7001

Fan
(Superseded to KM-59041-0020)

$19.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-59066-7002

Fan Housing

$

$

Not available

8

Cub Cadet KM-92004-2148

Stud
(Superseded to KM-92004-7025)

$6.99

$

In Stock, Qty 20+

0

9

Cub Cadet KM-92153-7007

Bolt

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet KM-92153-7008

Bolt
(Superseded to KM-92154-2823)

$0.99

$

In Stock, Qty 6

0

11

Cub Cadet KM-55020-7004

Guard

$32.99

$

In Stock, Qty 7

0

12

Cub Cadet KM-92210-0003

Nut

$0.99

$

In Stock, Qty 20+

0

13

Cub Cadet KM-130G0612

Flange Bolt
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

14

Cub Cadet KM-92026-7007

Spacer

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-23062-7010

Bracket

$10.99

$

In Stock, Qty 5

0

16

Cub Cadet KM-130B0616

Flange Bolt
(Superseded to KM-130BA0616)

$1.49

$

In Stock, only 2 left!

0

17

Cub Cadet KM-311B0600

Hex Nut
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 20+

0

18

Cub Cadet KM-130B0625

Flange Bolt
(Superseded to KM-130BA0625)

$1.49

$

In Stock, Qty 20+

0

19

Cub Cadet KM-130B0816

Flange Bolt
(Superseded to KM-130BA0816)

$1.99

$

In Stock, only 4 left!

0
