Z-Force 15 (53AA5D2L100) - Cub Cadet 44" Z-Force Zero-Turn Mower, Kawasaki Control Equipment Parts Diagram

44" Z-Force Zero-Turn Mower, Kawasaki

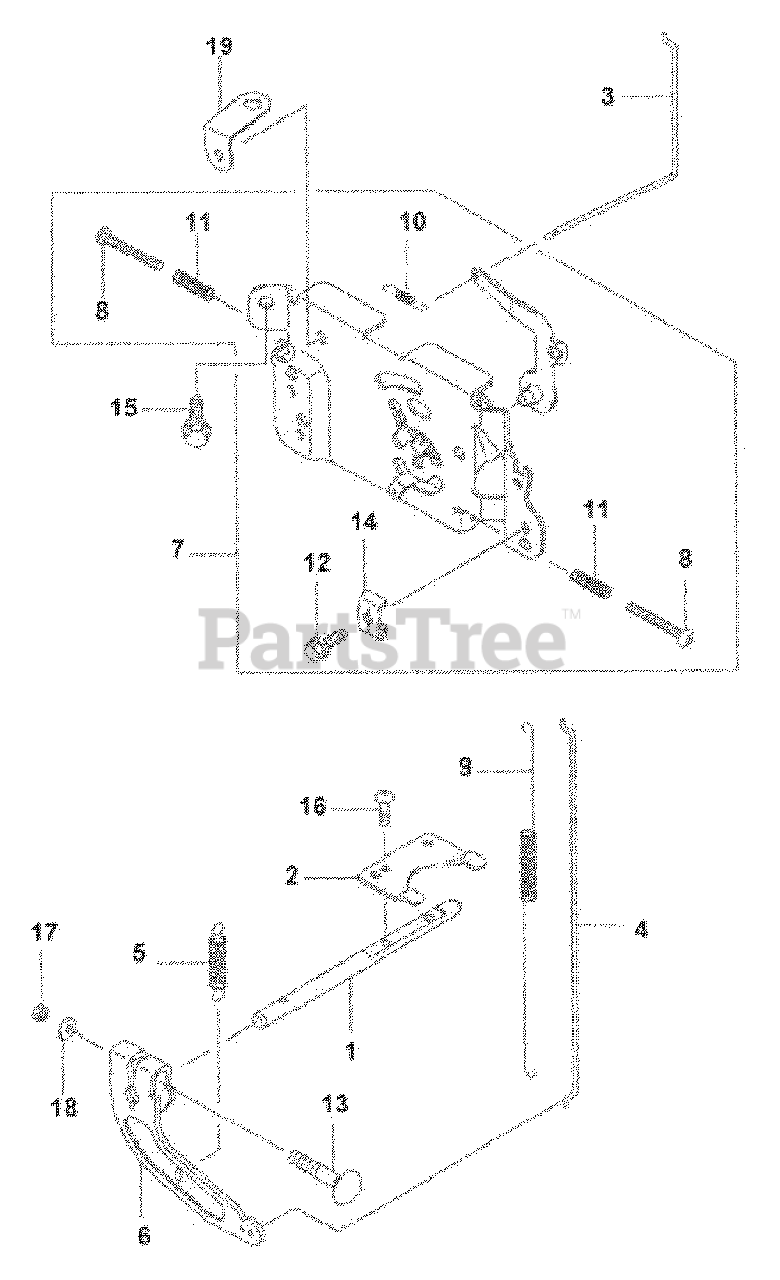

Control Equipment Parts Diagram

  • Title

1

Cub Cadet KM-13107-7010

Shaft

$12.99

$

In Stock, Qty 5

0

2

Cub Cadet KM-13271-7018

Plate
(Superseded to KM-13271-7032)

$3.99

$

In Stock, Qty 6

0

3

Cub Cadet KM-16169-7010

Choke Link

$2.49

$

In Stock, Qty 10

0

4

Cub Cadet KM-16171-7001

Link

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet KM-39129-7003

Governor Spring

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-49103-7004

Governor Arm

$7.99

$

In Stock, Qty 12

0

7

Cub Cadet KM-49113-7027

Control Panel
(Superseded to KM-49113-7056)

$26.99

$

In Stock, Qty 9

0

8

Cub Cadet KM-92009-7007

Screw, 4 x 35

$0.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-92145-7003

Spring

$2.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-92145-7004

Spring
(Superseded to KM-92145-2180)

$0.99

$

In Stock, Qty 20+

0

11

Cub Cadet KM-92145-7005

Spring

$0.99

$

In Stock, Qty 12

0

12

Cub Cadet KM-92150-2182

Bolt, 5 x 18

$0.99

$

In Stock, Qty 20+

0

13

Cub Cadet KM-92153-7005

Bolt, 6 x 35
(Superseded to KM-92154-2697)

$0.99

$

In Stock, Qty 9

0

14

Cub Cadet KM-92170-7001

Clamp

$2.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-130G0612

Flange Bolt
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-214B0408

Pan Screw
(Superseded to KM-214AA0408)

$3.99

$

In Stock, Qty 15

0

17

Cub Cadet KM-311B0600

Hex Nut
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 20+

0

18

Cub Cadet KM-411B0600

Plain Washer
(Superseded to KM-411AA0600)

$4.49

$

In Stock, Qty 12

0

19

Cub Cadet KM-11051-7008

Bracket

$5.99

$

Usually ships in 2-5 days

0
