Z 7600 (CMGN231702) (17RSHAC3A93) - Craftsman 54" Zero-Turn Mower (2023) Floorboard Parts Diagram

54" Zero-Turn Mower

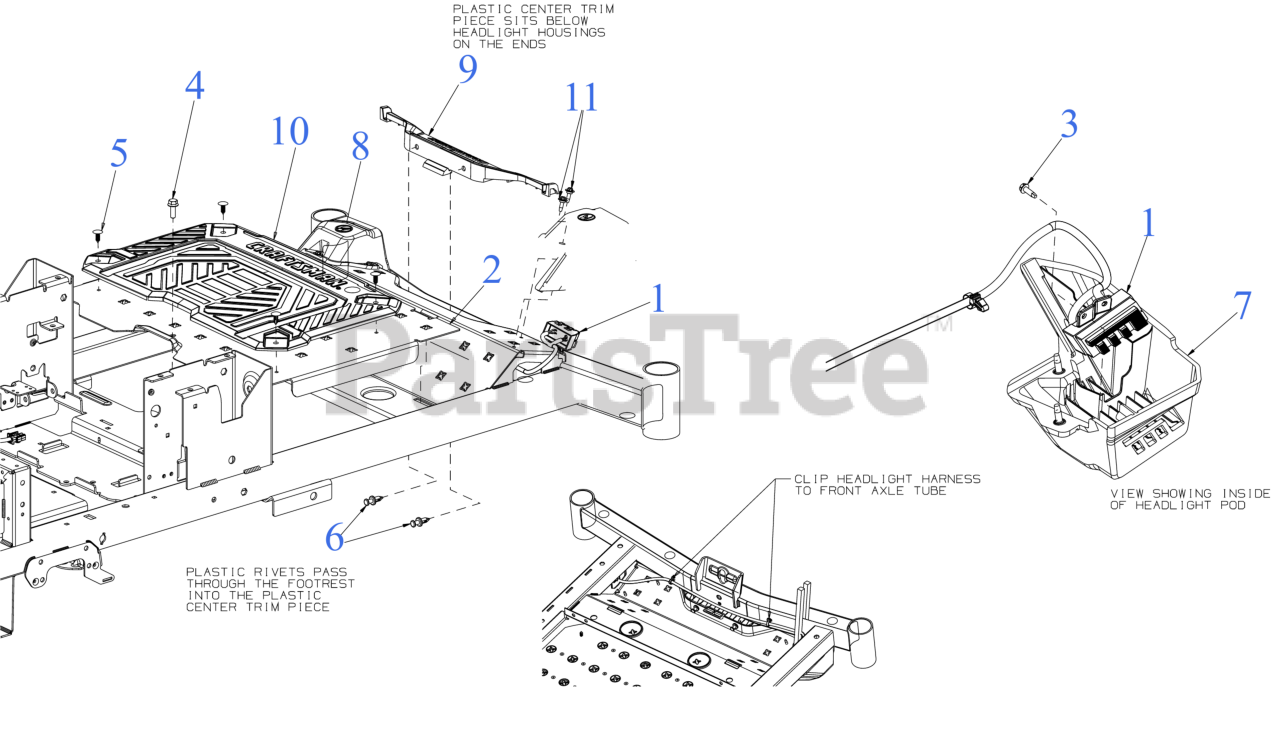

Floorboard Parts Diagram

  • Title
1

MTD 625P09109

HEADLIGHT HARNESS

$60.99

$

Usually ships in 3-6 days

0

2

MTD 703-12684A

FLOORBOARD

Note: *CHOOSE COLOR WHEN ORDERING*

$88.99

$

Usually ships in 3-6 days

0

3

MTD 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

4

MTD 710-1238A

SCREW 5/16-18 x .875 GR5 HXFLG HD

$4.49

$

In Stock, Qty 20+

0

5

MTD 726-3046

RATCHET CLIP .250

$3.99

$

In Stock, Qty 16

0

6

MTD 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 14

0

7

MTD 731P27397

HEADLIGHT COVER (RH)

$10.99

$

Usually ships in 3-6 days

0

8

MTD 731P27398

HEADLIGHT COVER (LH)

$10.99

$

Usually ships in 3-6 days

0

9

MTD 731P27399

HEADLIGHT COVER (CENTER)

$15.99

$

Usually ships in 3-6 days

0

10

MTD 735-07178

FLOORBOARD MAT

$40.99

$

In Stock, only 1 left!

0

11

MTD 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0
