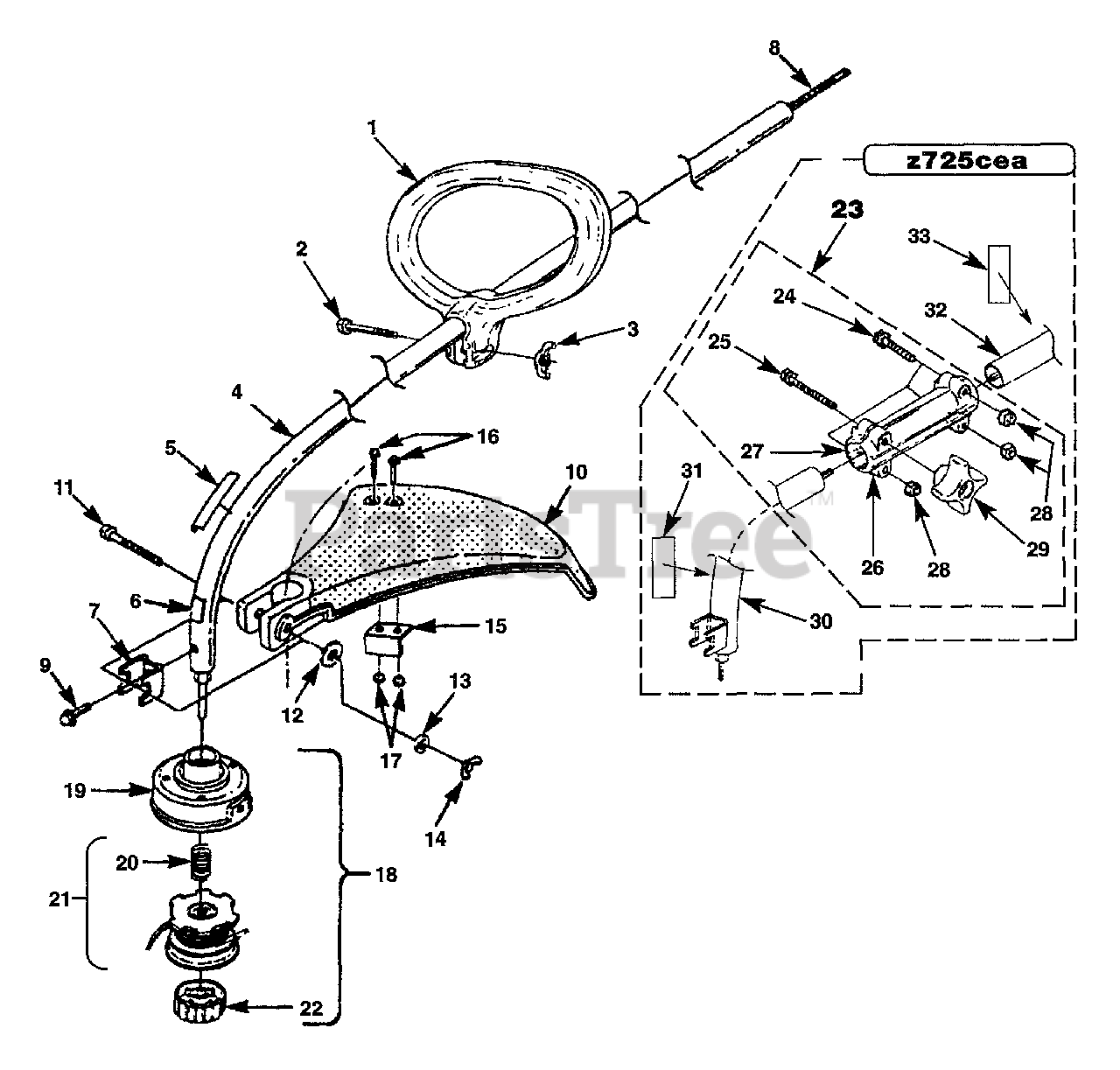

Z 725 CEA (UT-20644) - Homelite String Trimmer Shaft & Head Parts Diagram

String Trimmer

Shaft & Head Parts Diagram

  • Title

1

Homelite A07136

FRONT HANDLE ("D")
(Superseded to UP06959A)

$

$

Not available

2

Homelite 802951

SCREW-Cap Hex Hd. (10-24 X 2")
(Superseded to 80295)

$4.99

$

Usually ships in 3-7 days

0

3

Homelite 939921

NUT-Wing (10-24)
(Superseded to UP04262)

$

$

Not available

4

Homelite A07524

HOUSING-Drive Shaft
(Superseded to UP03005A)

$

$

Not available

5

Homelite 06551

DECAL-Starting Inst.
(Superseded to 06551B)

$

$

Not available

6

Homelite 04154

DECAL-Warning

$

$

Not available

7

Homelite 98853A

CLAMP
(Superseded to UP04137)

$

$

Not available

8

Homelite 07486

SHAFT-Flexible

$

$

Not available

9

Homelite 88077

SCREW
(Superseded to PS05243)

$

$

Not available

10

Homelite A04705

DEFLECTOR & BLADE KIT (55 Degree)
(Superseded to UP06710A)

$

$

Not available

11

Homelite 80295

SCREW-Cap Hex Hd. (1/4-20 X 2")

$4.99

$

Usually ships in 3-7 days

0

12

Homelite 84006

WASHER-Flat (1/4")

$

$

Not available

13

Homelite 83009

WASHER-Lock (1/4")

$8.49

$

Usually ships in 3-7 days

0

14

Homelite 93992

NUT-Wing (10-24)

$

$

Not available

15

Homelite A03832

BLADE-Cut-Off Kit
(Superseded to UP04119)

$

$

Not available

16

Homelite 82531

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 660616001)

$

$

Not available

17

Homelite 81261

NUT-Hex (10-24)

$

$

Not available

18

Homelite DA03001A

STRINGHEAD-Complete (.080" Line)
(Superseded to UP04408A)

$

$

Not available

19

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

20

Homelite 06713

SPRING-Compression

$1.99

$

In Stock, only 3 left!

0

21

Homelite DA98912E

SPOOL & STRING (.080" Line)
(Superseded to 308044002)

$

$

Not available

22

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

$

$

Not available

23

Homelite A07901

COUPLER ASSEMBLY

Note: For models z725cea & st725cea

$

$

Not available

24

Homelite 822781

BOLT-Hex Hd.
(Superseded to UP04153)

Note: For models z725cea & st725cea

$

$

Not available

25

Homelite 80295

SCREW-Cap Hex (1/4-20 x 2")

Note: For models z725cea & st725cea

$4.99

$

Usually ships in 3-7 days

0

26

Homelite GM236111

SPLIT BOOM (L.H.)
(Superseded to UP04143)

Note: For models z725cea & st725cea

$

$

Not available

27

Homelite GM236112

SPLIT BOOM (R.H.)
(Superseded to UP04144)

Note: For models z725cea & st725cea

$

$

Not available

28

Homelite 81267

NUT-Hex (1/4-20)

Note: For models z725cea & st725cea

$

$

Not available

29

Homelite GM285204

KNOB
(Superseded to UP04138)

Note: For models z725cea & st725cea

$

$

Not available

30

Homelite A07903

DRIVE SHAFT HOUSING-Curved (Lower)
(Superseded to UP02887)

Note: For models z725cea & st725cea

$

$

Not available

31

Homelite 04154

DECAL-Warning

Note: For models z725cea & st725cea; (Also includes #7 & #9)

$

$

Not available

32

Homelite A07902

DRIVE SHAFT HOUSING-Curved (Upper)
(Superseded to UP04545)

Note: For models z725cea & st725cea

$

$

Not available

33

Homelite 04458

DECAL-Start Instructions
(Superseded to UP04130)

Note: For models z725cea & st725cea

$

$

Not available
