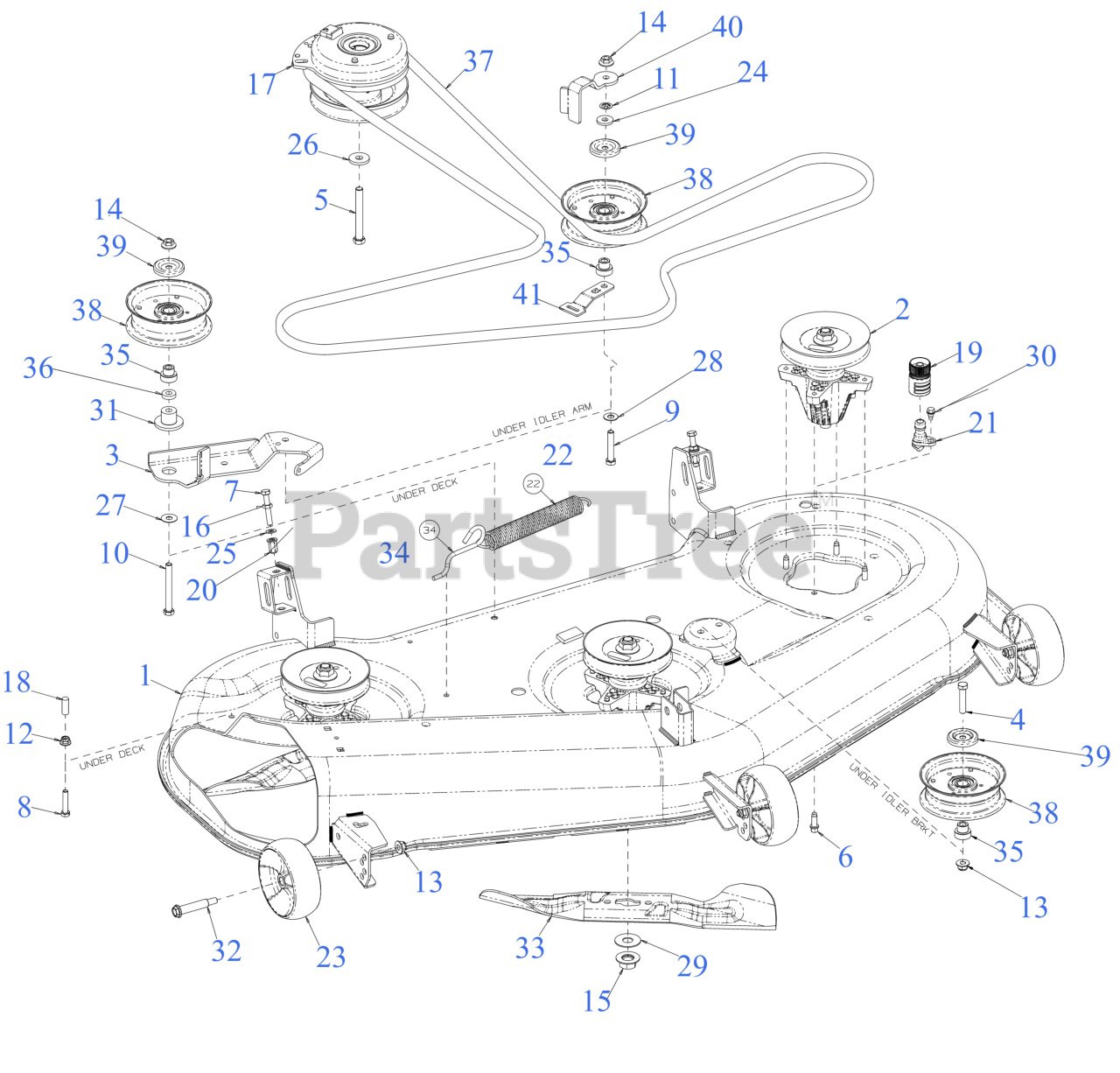

Z 5800 (CMXGNAM211704) (17RRFACW093) - Craftsman 54" Zero-Turn Mower (2023) Deck Parts Diagram

54" Zero-Turn Mower

Deck Parts Diagram

  • Title

1

MTD 603P05699A

54" DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$881.99

$

Usually ships in 3-6 days

0

2

MTD 618P09236

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$139.99

$

In Stock, only 2 left!

0

3

MTD 703-26144

DECK IDLER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$45.99

$

Usually ships in 3-6 days

0

4

MTD 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

5

MTD 710-04379A

SCREW 7/16-20 x 3.5 GR5

$6.49

$

In Stock, only 3 left!

0

6

MTD 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, Qty 20+

0

7

MTD 710-07494

SCREW-FULL THREAD 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-3096

SCREW 3/8-16 x 2.0 GR 8

$7.99

$

In Stock, only 1 left!

0

10

MTD 710-3130

SCREW 3/8-16 x 3.25 GR8

$10.99

$

In Stock, only 4 left!

0

11

MTD 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-07050

HEX FLANGE NUT 5/8-18 GR5

$5.99

$

In Stock, Qty 20+

0

16

MTD 712-3007

HEX NUT

$6.99

$

In Stock, only 2 left!

0

17

MTD 917-05209

ELECTRIC PTO CLUTCH

$545.99

$

In Stock, only 1 left!

0

18

MTD 720-05075

VINYL CAP

$4.49

$

In Stock, only 2 left!

0

19

MTD 921-04041

WATER NOZZLE ADAPTER

$23.99

$

In Stock, Qty 20+

0

20

MTD 728-05043

NUT RIVET 5/16-18

$5.49

$

In Stock, Qty 6

0

21

MTD 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 1 left!

0

22

MTD 732-04927

EXTENSION SPRING

$22.99

$

In Stock, Qty 20+

0

23

MTD 734-06305A

DECK WHEEL (5.0 DIA x 1.875)

$15.99

$

In Stock, only 4 left!

0

23

MTD 490-325-C073

Cub Cadet 5" DECK WHEEL SET (06305A) (W/BOLT)

Note: Retail Package Part

$39.99

$

In Stock, only 1 left!

0

24

MTD 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 4 left!

0

25

MTD 736-0264

FLAT WASHER

$6.99

$

In Stock, only 2 left!

0

26

MTD 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 8

0

27

MTD 736-0344

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

28

MTD 736-05080

FLAT WASHER .401X.88

$3.49

$

Usually ships in 3-6 days

0

29

MTD 736-3088

FLAT WASHER .635X1.585X.062 HDN

$4.49

$

In Stock, Qty 20+

0

30

MTD 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

31

MTD 738-05081

SHOULDER SPACER

$7.49

$

In Stock, Qty 20+

0

32

MTD 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

$7.99

$

In Stock, Qty 20+

0

33

MTD 742P05086

18.611" BLADE (2IN1) (S SHAPE CENTER HOLE)

$30.99

$

In Stock, Qty 20+

0

33

MTD 490-110-C194

Cub Cadet 54" HI LIFT BLADE SET (S SHAPE CENTER HOLE) (-05086)

Note: Retail Package Part

$97.99

$

In Stock, only 2 left!

0

33

MTD 490-110-Y194

Troy-Bilt 54" HI LIFT BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$92.99

$

In Stock, Qty 11

0

33

MTD 742P05086-X

18.611" XTREME BLADE (2IN1) (S SHAPE CENTER HOLE)

$35.99

$

In Stock, only 3 left!

0

33

MTD 490-110-C205

Cub Cadet 54" XTREME BLADE SET (S SHAPE CENTER HOLE) (-05086-X)

Note: Retail Package Part

$104.99

$

In Stock, only 2 left!

0

33

MTD 490-110-Y205

Troy-Bilt 54" XTREME BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$99.99

$

In Stock, only 2 left!

0

33

MTD 742P05086-L

18.611" LOW LIFT (S SHAPE CENTER HOLE)

$35.99

$

In Stock, only 2 left!

0

33

MTD 490-110-C201

Cub Cadet 54" LOW LIFT BLADE SET (S SHAPE CENTER HOLE) (-05086-L)

Note: Retail Package Part

$112.99

$

Usually ships in 3-6 days

0

33

MTD 490-110-Y201

Troy-Bilt 54" LOW LIFT BLADE SET (S SHAPE CENTER HOLE)

Note: Retail Package Part

$106.99

$

In Stock, only 1 left!

0

34

MTD 747-05608A

DECK SPRING HOOK

$3.49

$

In Stock, Qty 20+

0

35

MTD 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

36

MTD 750-06192A

SPACER

$4.49

$

In Stock, Qty 20+

0

37

MTD 954-04329A

V-BELT B SEC x 148.25

$100.99

$

In Stock, only 4 left!

0

37

MTD 490-501-C067

Cub Cadet 54" DECK DRIVE BELT

Note: Retail Packaged Part

$100.99

$

In Stock, only 3 left!

0

38

MTD 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

39

MTD 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

40

MTD 783E08619A

BELT KEEPER
(Superseded to 783Z08619A)

$24.99

$

In Stock, Qty 20+

0

41

MTD 783-08867

BELT KEEPER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-08867-0637

KEEPER-BELT - POWDER BLACK (0637)

$16.99

$

In Stock, only 2 left!

0

$13.99

$

Usually ships in 3-6 days

0
