Z 572x - Husqvarna 72" Zero-Turn Mower FUEL SYSTEM 2 Parts Diagram

72" Zero-Turn Mower

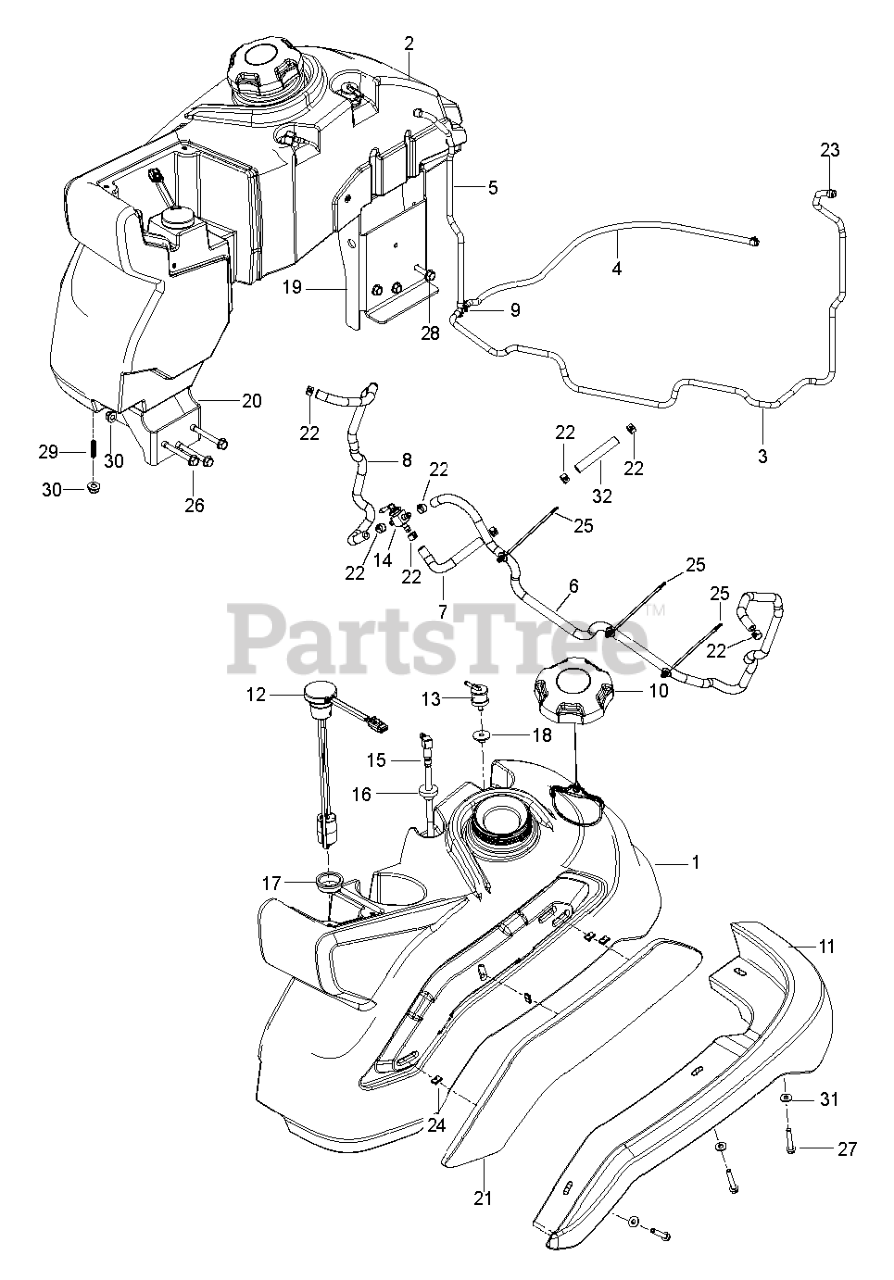

FUEL SYSTEM 2 Parts Diagram

  • Title

21

Husqvarna 582483401

COVER.LH.FUEL.TANK/CONSOLE APP

$

$

Not available

16

Husqvarna 532003645

BUSHING OUTLET T

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 584648201

GROMMET.CHECK.FUEL

$4.99

$

In Stock, only 4 left!

0

26

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

Husqvarna 525865403

TUBE.ASM.FUEL.TANK.PICK-UP.RH

$14.99

$

In Stock, only 1 left!

0

19

Husqvarna 582481502

BRACKET.FUEL.TANK.REAR.SUP.431

$39.99

$

Usually ships in 3-10 days

0

3

Husqvarna 587044541

HOSE 3/16" VAPOR LINE 41" LENG

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587044841

HOSE 1/4" LOW PERMEATION FUEL

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 590680405

TANK UNIT ASSY RH 2018 PROD. Y
(Superseded to 590680411)

Note: For 967930501

$683.99

$

Usually ships in 3-10 days

0

9

Husqvarna 574206602

TEE, FUEL LINE 3/16"

$3.49

$

In Stock, only 1 left!

0

32

Husqvarna 587044803

HOSE.1/4".LOW.PERM.FUEL.LN.3"

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 14

0

8

Husqvarna 587044824

HOSE.1/4".LOW.PERM.FUEL.LN.24"

$7.99

$

Usually ships in 3-10 days

0

29

Husqvarna 582484201

SCREW.5/16-18X1.25"THREADED

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 590209101

GROMMET, FUEL SENSOR

$5.99

$

In Stock, only 2 left!

0

31

Husqvarna 532126684

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539102679

FUEL VALVE

$56.99

$

In Stock, only 2 left!

0

15

Husqvarna 525865402

TUBE.ASM.FUEL.TANK.PICK-UP.LH

$14.99

$

Usually ships in 3-10 days

0

1

Husqvarna 582483105

FUEL.TANK.ASM.LH.PZ.REFRESH.18

Note: For 967679001, 967669801, 967669802

$

$

Not available

20

Husqvarna 582481602

BRACKET.FUEL.TANK.REAR.SUP.431

$22.99

$

Usually ships in 3-10 days

0

4

Husqvarna 587044507

HOSE 3/16" VAPOR LINE 7" LENGT

Note: For 967930501

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 590680505

TANK UNIT ASSY LH 2018 PROD. Y
(Superseded to 590680507)

Note: For 967930501

$

$

Not available

12

Husqvarna 590638801

SENSOR.FUEL.LVL.FLOAT.V500

$159.99

$

Usually ships in 3-10 days

0

24

Husqvarna 582482601

CLIP.U-TYPE

$4.99

$

In Stock, Qty 14

0

23

Husqvarna 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

27

Husqvarna 590257301

SCREW.1/4-20X1.5IN.HEX.MACH

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 591367101

CABLE.TIE.6".FIRTREE.PZ.REFRES

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 587044517

HOSE.3/16".VAPOR.LINE.17"LGTH

Note: For 967679001, 967669801, 967669802

$9.49

$

Usually ships in 3-10 days

0

10

Husqvarna 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 587044808

HOSE.1/4".LOW.PERM.FUEL.LN.8"

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 582482301

GUARD.MUD.RH

$79.99

$

Usually ships in 3-10 days

0

2

Husqvarna 582481705

FUEL.TANK.ASM.RH.PZ.REFRESH.18

Note: For 967679001, 967669801, 967669802

$

$

Not available

22

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 587044517

HOSE.3/16".VAPOR.LINE.17"LGTH

$9.49

$

Usually ships in 3-10 days

0

Husqvarna 582482401

COVER.RH.FUEL.TANK/CONSOLE APP

$

$

Not available

30

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 582483301

GUARD.MUD.LH

$74.99

$

Usually ships in 3-10 days

0

28

Husqvarna 817490516

SCREW
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0
