Z 572x (967669801-00) - Husqvarna 72" Zero-Turn Mower (2017-06) STEERING Parts Diagram

72" Zero-Turn Mower

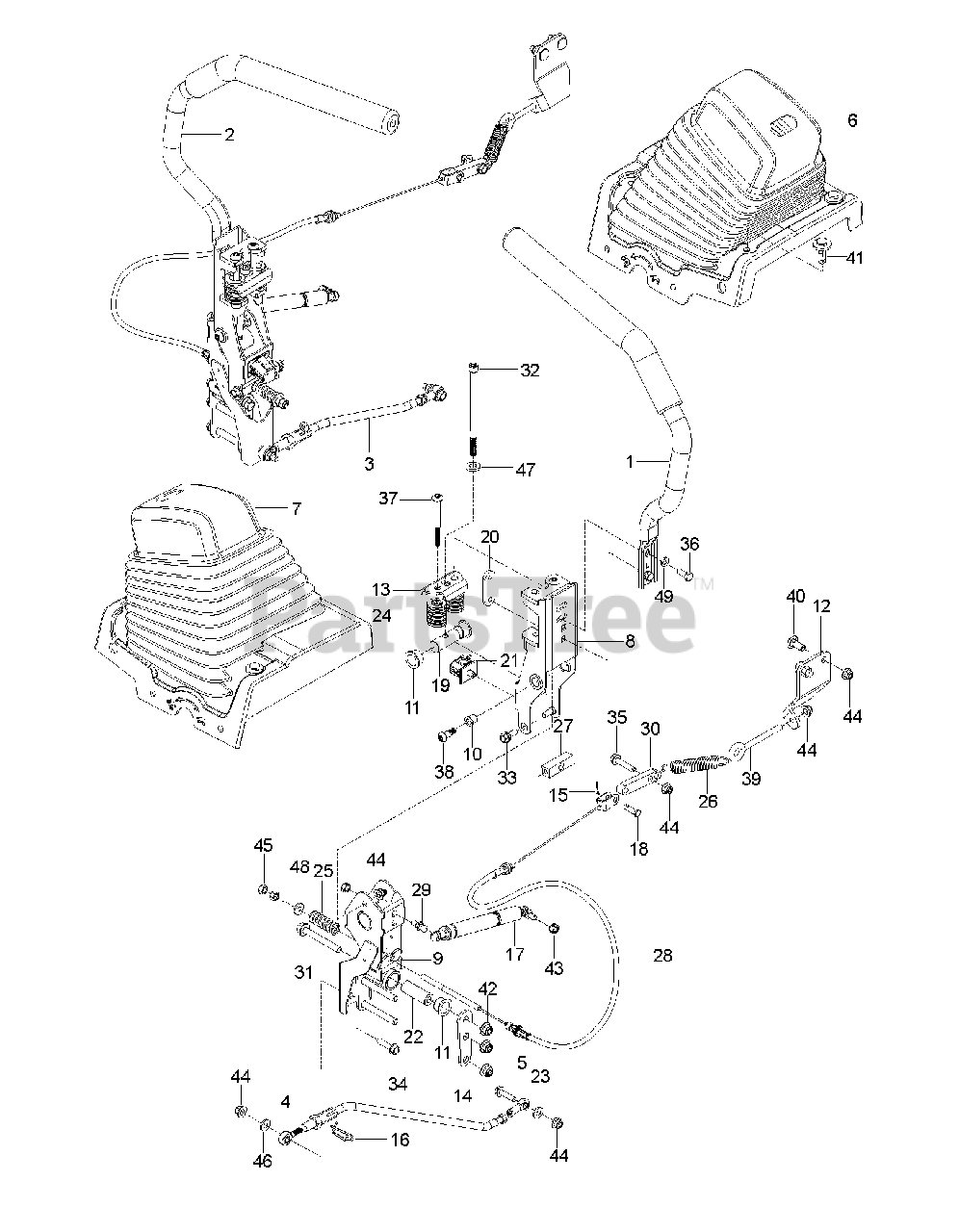

STEERING Parts Diagram

  • Title
1

Husqvarna 582475501

Drive Lever Assembly, LH

$51.99

$

In Stock, only 1 left!

0

2

Husqvarna 582475502

Drive Lever Assembly, RH

$51.99

$

Usually ships in 3-10 days

0

3

Husqvarna 501567001

ROD.ASM.CONTROL.PZ.5400.LH

$

$

Not available

3

Husqvarna 501567101

ROD.ASM.CONTROL.PZ.5400.RH

$

$

Not available

4

Husqvarna 588692502

ROD.END.MALE.LH.THREAD
(Superseded to 539116690)

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 579764601

Joint Heim, Feml.516.R

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 591193301

KIT.SERVICE.LEVER.BELLOW.LH

Note: . 6 41

$85.99

$

In Stock, only 1 left!

0

7

Husqvarna 591193302

KIT.SERVICE.LEVER.BELLOW.RH

Note: . 7 41

$85.99

$

Usually ships in 3-10 days

0

8

Husqvarna 582476502

CARRIER.PNT.WELD.UPPER.LH.EDIP

$45.99

$

Usually ships in 3-10 days

0

8

Husqvarna 582476504

CARRIER.PNT.WELD.UPPER.RH.EDIP
(Superseded to 593107304)

$34.99

$

Usually ships in 3-10 days

0

9

Husqvarna 582475802

CARRIER.PNT.WLDMT.LOWER.EDIP

$68.99

$

Usually ships in 3-10 days

0

10

Husqvarna 582476801

BEARING.FLG.3/8.SHAFT.1/2.HSG

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 6

0

12

Husqvarna 582477802

BRACKET.PNT.RETRN.SPRNG.LH.BLK

$13.99

$

Usually ships in 3-10 days

0

12

Husqvarna 582477804

BRACKET.PNT.RETRN.SPRNG.RH.BLK

$13.99

$

Usually ships in 3-10 days

0

13

Husqvarna 582476901

BRACKET.RETAINING.SPRING

$

$

Not available

14

Husqvarna 582475102

BRACKET.PNT.CONTROLS.MTG.EDIP

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

16

Husqvarna 582551901

CLIP.RETAINER.CONTROLS

$6.99

$

In Stock, only 1 left!

0

$66.99

$

Usually ships in 3-10 days

0

18

Husqvarna 582477401

PIN.CLEVIS.5/16.DIA.3/4.USABLE

$

$

Not available

$

$

Not available

20

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 589500901

SWITCH.SNPMNT.DELTA.NCNC.PZREF

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 582475001

SPACER.PIVOT

$

$

Not available

23

Husqvarna 582711303

SPACER.7_16OD;5_16ID;STEP.UP

$

$

Not available

24

Husqvarna 582477001

SPRING 1.25"ODX1.5"L
(Superseded to 582477002)

$22.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532151332

SPRING, BRAKE ROD

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 582477701

SPRING.RETURN.BRAKE

$

$

Not available

27

Husqvarna 582477201

CABLE.YOKE.PARK.BRAKE

$

$

Not available

28

Husqvarna 582477501

Parking Brake Cable

$37.99

$

In Stock, only 2 left!

0

29

Husqvarna 539110607

STUD.BALL.10MM

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 582477601

BRACKET.EXTENSION

$

$

Not available

31

Husqvarna 577117701

HHFS 3/8-16 X 3 GRD 5 ZD
(Superseded to 577117702)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 589505601

SCREW.SHCS.3/8-16 X 6L.ZY

$

$

Not available

33

Husqvarna 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 525465401

HHFS 5/16-18 X 1.5 GD 5

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 582477101

SCREW.SHCS.5/16-18 X 3-1/2"

$

$

Not available

38

Husqvarna 582476401

SCREW.SHLDR.3/8 X 1/2.5/16-18

$

$

Not available

39

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

40

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 582482901

RIVET.PUSH.PIN.0.25IN.HOLE

$3.49

$

Usually ships in 3-10 days

0

42

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

43

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

45

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

47

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

49

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0
