Z 572x (967669801-00) - Husqvarna 72" Zero-Turn Mower (2017-06) HYDRAULIC PUMP- MOTOR Parts Diagram

72" Zero-Turn Mower

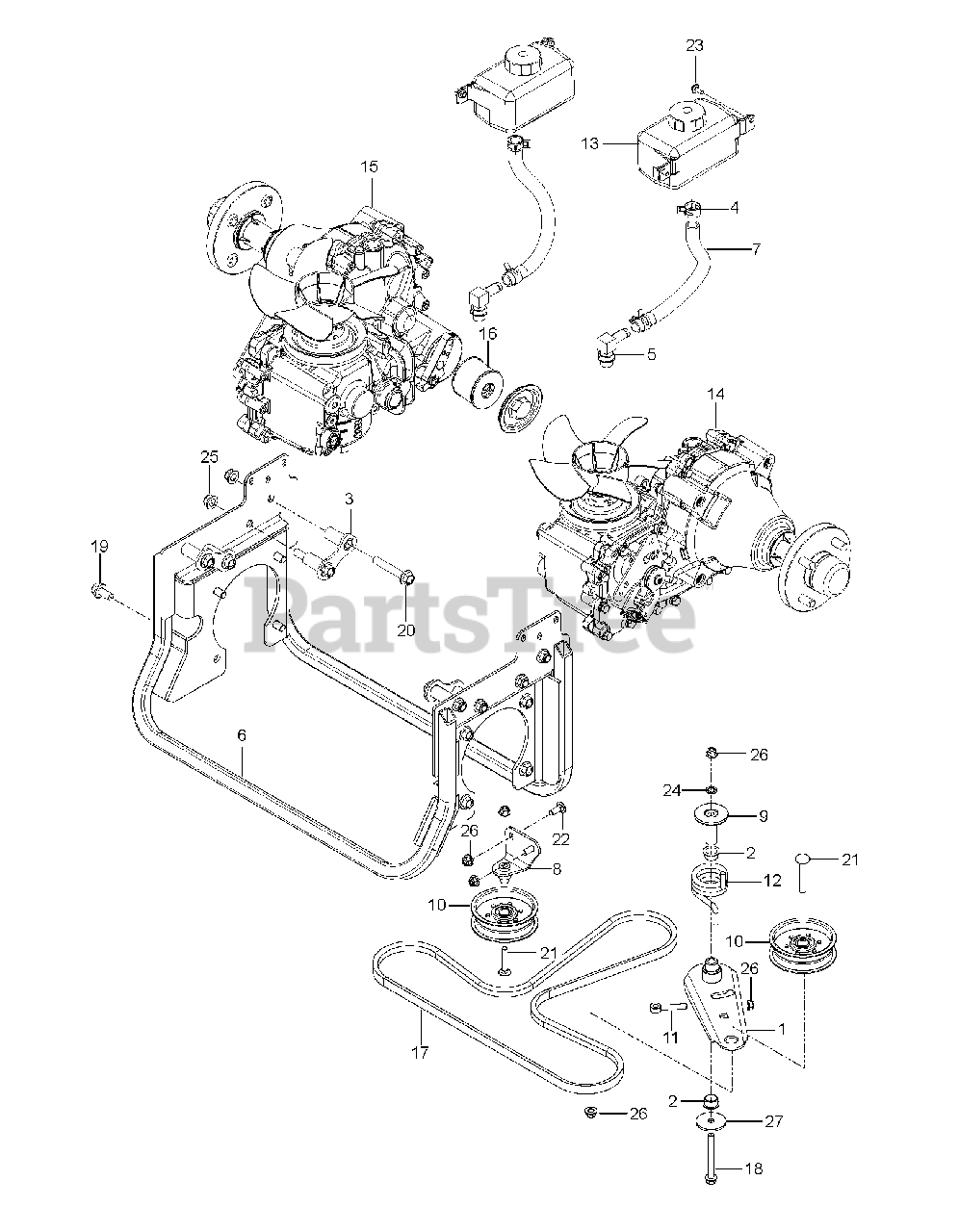

HYDRAULIC PUMP- MOTOR Parts Diagram

  • Title
1

Husqvarna 582463102

ARM.PNT.IDLER.WELDMENT.EDIP

$51.99

$

Usually ships in 3-10 days

0

2

Husqvarna 501603701

BEARING.FLANGED.PLASTIC.3/4ID

$6.99

$

In Stock, only 2 left!

0

3

Husqvarna 582479102

BRACKET.PNT.MTG.XMSN.EDIP

$37.99

$

Usually ships in 3-10 days

0

4

Husqvarna 582480101

CLAMP.CT.15/16"HOSE.OD

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 529311401

FITTING, 4601-10-10 NOW

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 582479404

FRAME XMSN ZT-5400, BLACK X431

$683.99

$

Usually ships in 3-10 days

0

7

Husqvarna 582480202

HOSE.HYD.5/8"ID.78"OD.350.PSI

$

$

Not available

8

Husqvarna 586933802

MOUNT.PNT.IDLER.FIXED.EDIP

$17.99

$

In Stock, only 2 left!

0

9

Husqvarna 582468101

SHAFT.MOUNT.ARM.IDLER

$

$

Not available

10

Husqvarna 587654101

Backside Idler Pulley

$40.99

$

In Stock, only 2 left!

0

11

Husqvarna 582716201

ROD.END.3/8-16 X 3.STEEL

$20.99

$

Usually ships in 3-10 days

0

12

Husqvarna 582468401

Torsion Spring

$34.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574499201

HG_TANK, EXPANSION

$34.99

$

Usually ships in 3-10 days

0

14

Husqvarna 582480001

TRANSMISSION.ZT-5400.LH

$2621.99

$

Usually ships in 3-10 days

0

15

Husqvarna 582480002

TRANSMISSION.ZT-5400.RH

$2791.99

$

Usually ships in 3-10 days

0

16

Husqvarna 576127201

HG_KIT, FILTER W/O-RING ZT5400

$66.99

$

Usually ships in 3-10 days

0

17

Husqvarna 582480402

Belt, BX 69 ZT-5

$51.99

$

In Stock, only 1 left!

0

18

Husqvarna 874490652

HHFS 3/8-16 X 3.5 GD 5 ZD

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD

$

$

Not available

20

Husqvarna 525828901

HFFS 1/2-13 X 3 GD 5 ZD

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, only 4 left!

0

22

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

23

Husqvarna 532165857

SCREW.HX.WSH.HD

$6.49

$

In Stock, only 3 left!

0

24

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

26

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

27

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available
