Z 560x (967930403-00) - Husqvarna 60" Zero-Turn Mower (2020-09) MOWER LIFT / DECK LIFT 2 Parts Diagram

60" Zero-Turn Mower

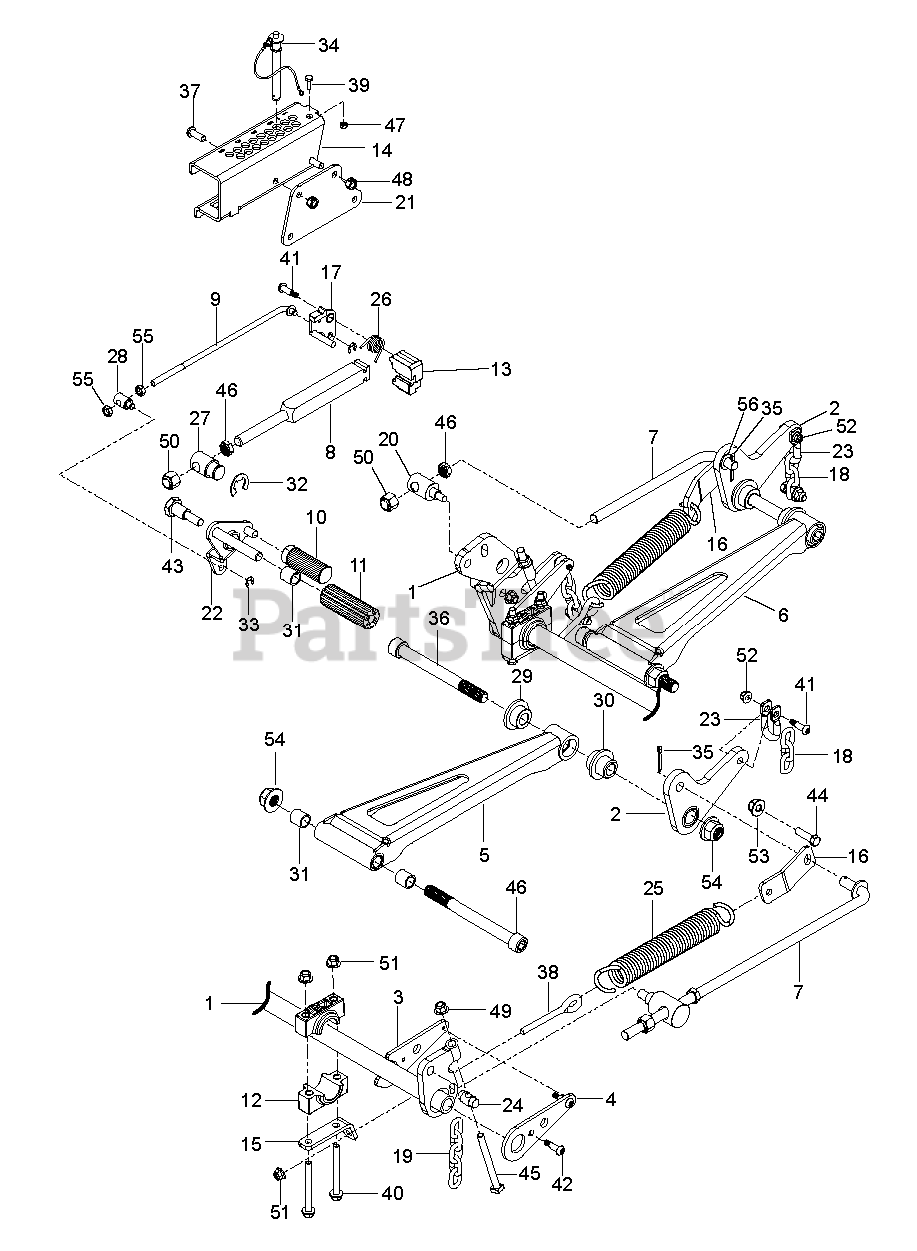

MOWER LIFT / DECK LIFT 2 Parts Diagram

  • Title

23

Husqvarna 582469001

SHACKLE.CHAIN

$

$

Not available

6

Husqvarna 582462002

ARM.DRAWBAR.RH

$113.99

$

Usually ships in 3-10 days

0

21

Husqvarna 582763902

PLATE.HEIGHT.GAUGE.MOUNT.PNT

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 582471301

SPRING.TORSION.RELEASE.LEVER
(Superseded to 582471302)

$3.49

$

In Stock, Qty 5

0

42

Husqvarna 501064101

SCREW.SHLDR..375.5/16-18.88.LG

$

$

Not available

53

Husqvarna 539132019

NUT 7/16-14 HEX WHIZ LK
(Superseded to 873900700)

$7.49

$

In Stock, Qty 20+

0

41

Husqvarna 501064102

SCREW.SHOULDER.375X875.5/16-18

$

$

Not available

31

Husqvarna 510089201

BUSHING, SLEEVE 3/4 X 1.0

$17.99

$

In Stock, only 4 left!

0

7

Husqvarna 582464601

ROD. CONNECTING

$

$

Not available

44

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 593091801

SPRING EXTENSION, DECK LIFT, H
(Superseded to 593091802)

$31.99

$

Usually ships in 3-10 days

0

37

Husqvarna 582472601

SCREW.BUTTON.HEAD.CAP.3/8-16X1

$

$

Not available

16

Husqvarna 593091902

BRACKET SPRING BLACK (X428)

$22.99

$

Usually ships in 3-10 days

0

3

Husqvarna 582465402

ARM.DECK.LIFT.INNER.BLACK

$28.99

$

Usually ships in 3-10 days

0

15

Husqvarna 582468902

BRACKET.PILLOW.BLOCK.PNT.BLACK

$17.99

$

Usually ships in 3-10 days

0

56

Husqvarna 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 592654001

KIT.ARM.BELLCRANK/BUSHINGS.LT

$56.99

$

Usually ships in 3-10 days

0

1

Husqvarna 582462602

SHAFT.WLDMNT.FRNT.DECK.LFT.PNT

$96.99

$

Usually ships in 3-10 days

0

24

Husqvarna 582464201

SHAFT.TRUNNION.ATTACH

$

$

Not available

50

Husqvarna 594977001

Nuts

$5.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

52

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

36

Husqvarna 582466701

SCREW.SOCKET.HEADCP.3/4-10X7.5

$

$

Not available

34

Husqvarna 590465502

Pins

$40.99

$

Usually ships in 3-10 days

0

5

Husqvarna 582462001

ARM.DRAWBAR.LH

$62.99

$

Usually ships in 3-10 days

0

22

Husqvarna 589453201

LEVER ASSY TOE RELEASE

$

$

Not available

13

Husqvarna 582467201

BLOCK.ROD.END

$

$

Not available

4

Husqvarna 582463902

ARM.LIFT.DECK.OUTER.POWER.BLK

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510089501

PAD, FOOT PEDAL

$6.99

$

In Stock, Qty 9

0

38

Husqvarna 574202001

EYE BOLT, 3/8 X 4"

$

$

Not available

10

Husqvarna 510408301

PEDAL, DECK HEIGHT

$

$

Not available

45

Husqvarna 582465601

SCREW.HHC.7/16-14 X 4.50

$

$

Not available

40

Husqvarna 589786001

SCREW.HHFS3/8-16X3.75.GR8

$

$

Not available

48

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

2

Husqvarna 592654002

KIT.ARM.BELLCRANK/BUSHINGS.RT

$56.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990870

E RING 3/8"

$6.49

$

In Stock, only 1 left!

0

47

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

49

Husqvarna 582464302

Nuts

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 582471401

ROD.RELEASE.CONNECTING.TOE

$

$

Not available

30

Husqvarna 582469801

BUSHING.DECK.OUTER

$

$

Not available

51

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

32

Husqvarna 539912730

E-RING 1"
(Superseded to 812000053)

$7.49

$

In Stock, Qty 10

0

29

Husqvarna 582469901

BUSHING.DECK.INNER

$

$

Not available

19

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

14

Husqvarna 582466902

BRACKET.ADJUSTMENT.HEIGHT.ORNG

$56.99

$

Usually ships in 3-10 days

0

43

Husqvarna 510408201

BOLT, SHOULDER

$

$

Not available

46

Husqvarna 589677701

NUT.HH.THIN.NYL.5/8-11 GR5

$

$

Not available

18

Husqvarna 539109693

LIFT CHAIN - 3 LINK

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 582467001

SWIVEL.HEIGHT.BAR

$

$

Not available

54

Husqvarna 582466601

NUT.HEX.FLANGED.3/4-10.NYLOK

$

$

Not available

20

Husqvarna 582464801

PIVOT.CONNECTING.ROD

$

$

Not available

8

Husqvarna 582472801

ROD.HEIGHT.GAUGE

$

$

Not available

17

Husqvarna 592654101

KIT.LEVER.LOCK.W/BUSHING

$17.99

$

In Stock, only 2 left!

0

12

Husqvarna 510023902

BLOCK, PILLOW

$14.99

$

In Stock, only 1 left!

0

28

Husqvarna 582467101

SWIVEL.TOP.RELEASE

$

$

Not available

39

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0
