Z 560x (967678802-00) - Husqvarna 60" Zero-Turn Mower (2017-09) WHEELS TIRES Parts Diagram

60" Zero-Turn Mower

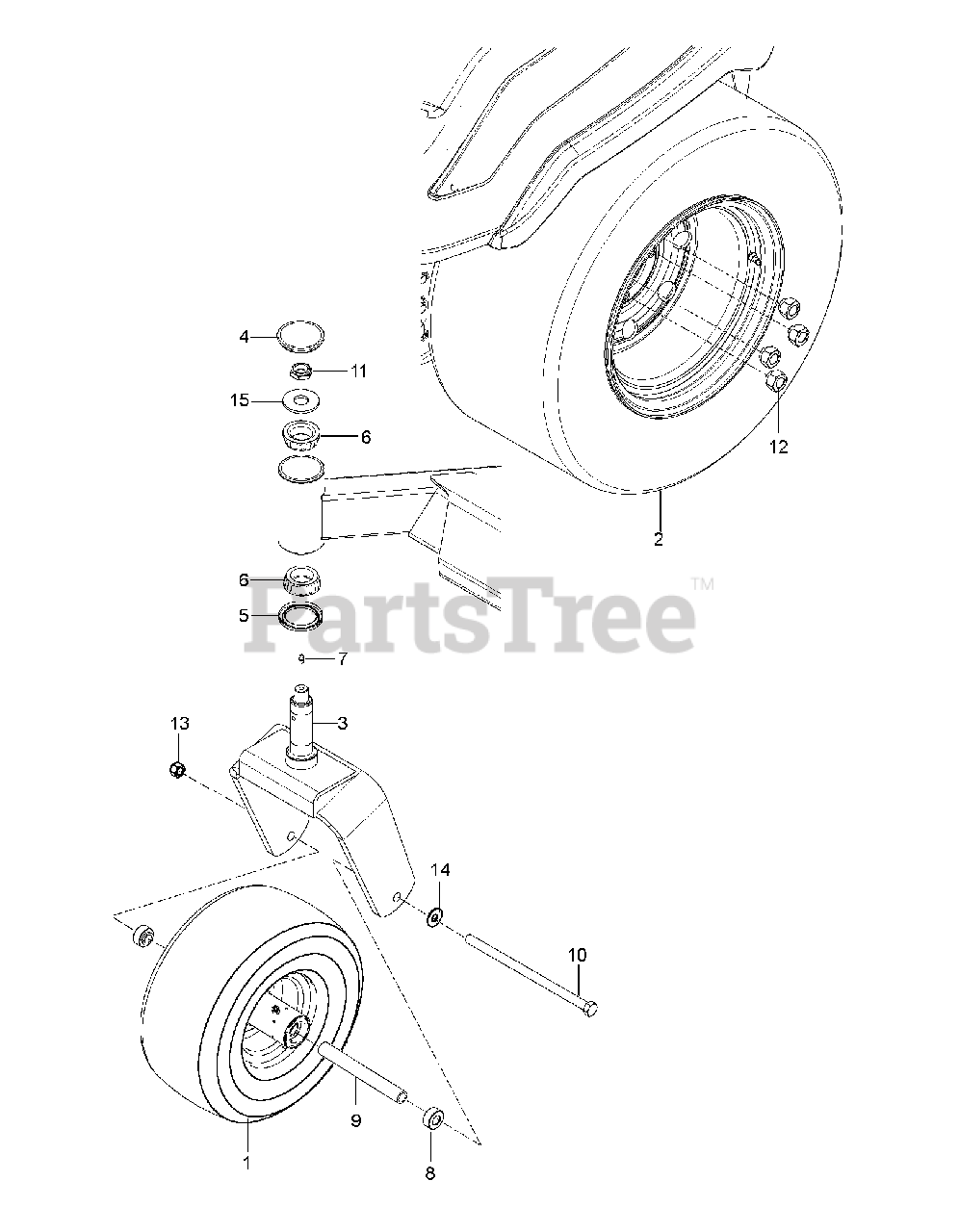

WHEELS TIRES Parts Diagram

  • Title

1

Husqvarna 510154601

TIRE, 13 X 6.5-6 NO FLAT

$265.99

$

In Stock, only 2 left!

0

2

Husqvarna 510154501

WHEEL/TIRE.ASM.24X12-12.SILVER

$545.99

$

In Stock, only 1 left!

0

Husqvarna 539105152

TIRE.24X12-12.TURF.MASTER

$278.99

$

Usually ships in 3-10 days

0

Husqvarna 510154502

RIM, 12 X 8.5 W/1.75 NEG OS

$182.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525611902

FORK.CASTER.ORANGE

$250.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510034001

CAP, DUST

$

$

Not available

5

Husqvarna 510034301

SEAL, BEARING

$6.49

$

In Stock, only 3 left!

0

6

Husqvarna 510034403

CONE, LM67048

$14.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 590690701

Axle Spacer

$

$

Not available

9

Husqvarna 590704901

Hub Spacer

$

$

Not available

10

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5

$

$

Not available

11

Husqvarna 522842601

NUT, 3/4-16 HEX THIN NYLOC ZD

$

$

Not available

12

Husqvarna 587653902

NUT.1/2-20.UNF-2B.GR.8.YL

$

$

Not available

13

Husqvarna 873930800

NUT. 1/2-13 HEX CNTRLK GR 5 ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

14

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

15

Husqvarna 574824701

WASHER, 3/4 HARDENED

$

$

Not available
