Z 560x (967678802-00) - Husqvarna 60" Zero-Turn Mower (2017-09) CONSOLE Parts Diagram

60" Zero-Turn Mower

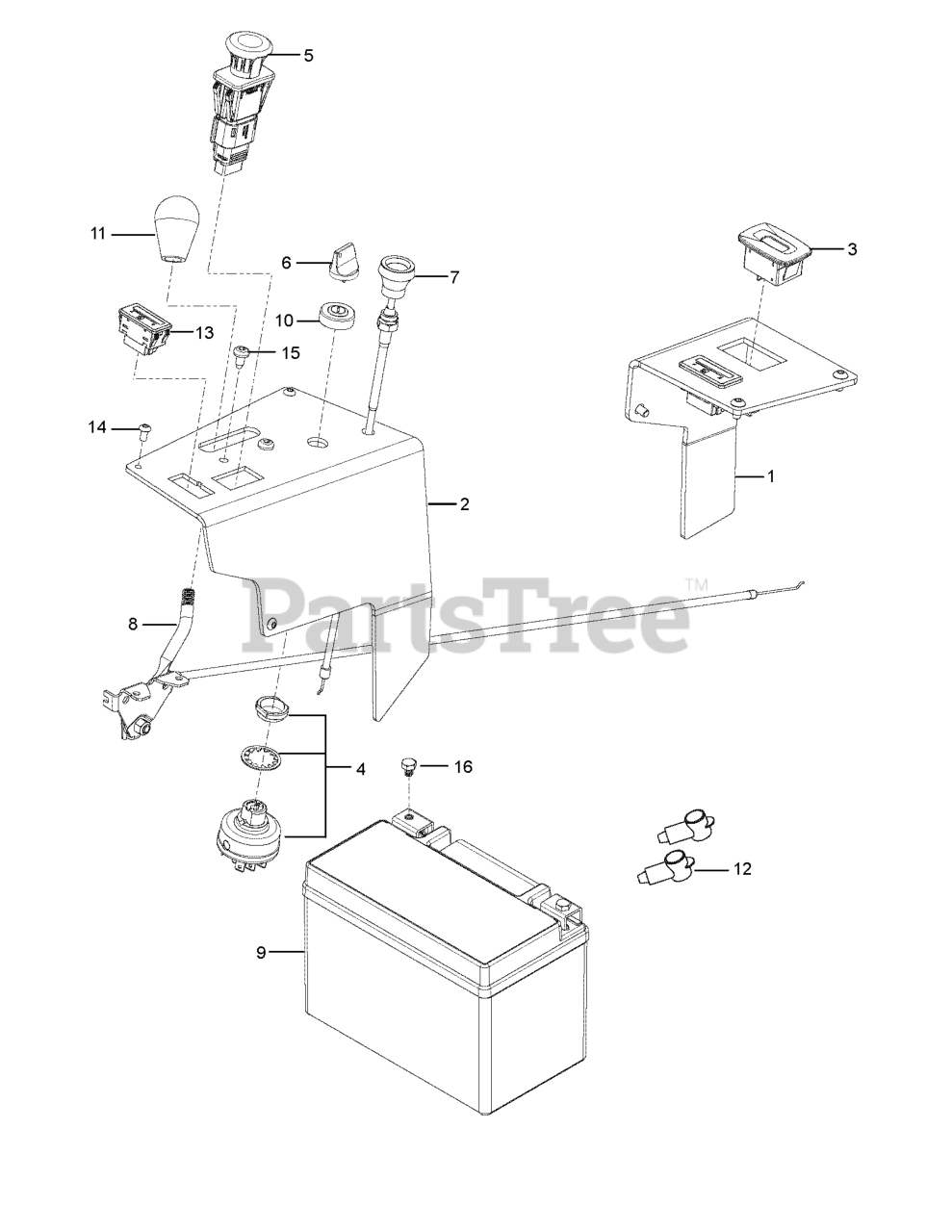

CONSOLE Parts Diagram

  • Title

1

Husqvarna 582483902

PANEL.LH.CONTROL.PNT.X498

$20.99

$

Usually ships in 3-10 days

0

2

Husqvarna 582483602

PANEL.RH.CONTROL.PNT.X498

$28.99

$

Usually ships in 3-10 days

0

3

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

4

Husqvarna 574455401

SWITCH, IGNITION, INDAK

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 589887201

SWITCH.PTO.10AMP.SEALED.6P.SPS

$60.99

$

In Stock, only 1 left!

0

6

Husqvarna 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 574206901

CABLE, CHOKE, 48"
(Superseded to 531077202)

Note: CHOKE

$31.99

$

In Stock, Qty 8

0

8

Husqvarna 582120301

THROTTLE.CONTROL.POST.MZ/PZ.46

Note: 46

$

$

Not available

9

Husqvarna 589819501

Starter Battery, 8AH Agm Leoch

$125.99

$

In Stock, only 1 left!

0

10

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

12

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 592872701

FUEL.GAUGE.LED.LEVEL.Z500

$31.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 532199855

SCREW T-30 1/4-20 X
(Superseded to 583254901)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 582460801

SCREW M6 X 8MM HEX CAP

$

$

Not available

Husqvarna 593777801

HARNESS.MAIN.Z500X.Z500.CARB

Note: NOT SHOWN

$265.99

$

Usually ships in 3-10 days

0

Husqvarna 574514001

TIMER, SEAT

Note: NOT SHOWN

$120.99

$

In Stock, only 1 left!

0

Husqvarna 590632101

Cable Assembly, Battery 6GA PZRF

Note: NOT SHOWN

$68.99

$

Usually ships in 3-10 days

0

Husqvarna 589838501

HARNESS.ADAPTER.KAWASAKI.FX.PZ

Note: NOT SHOWN

$22.99

$

Usually ships in 3-10 days

0
