Z 560x (967669702-00) - Husqvarna 60" Zero-Turn Mower (2018-01) MOWER DECK / CUTTING DECK Parts Diagram

60" Zero-Turn Mower

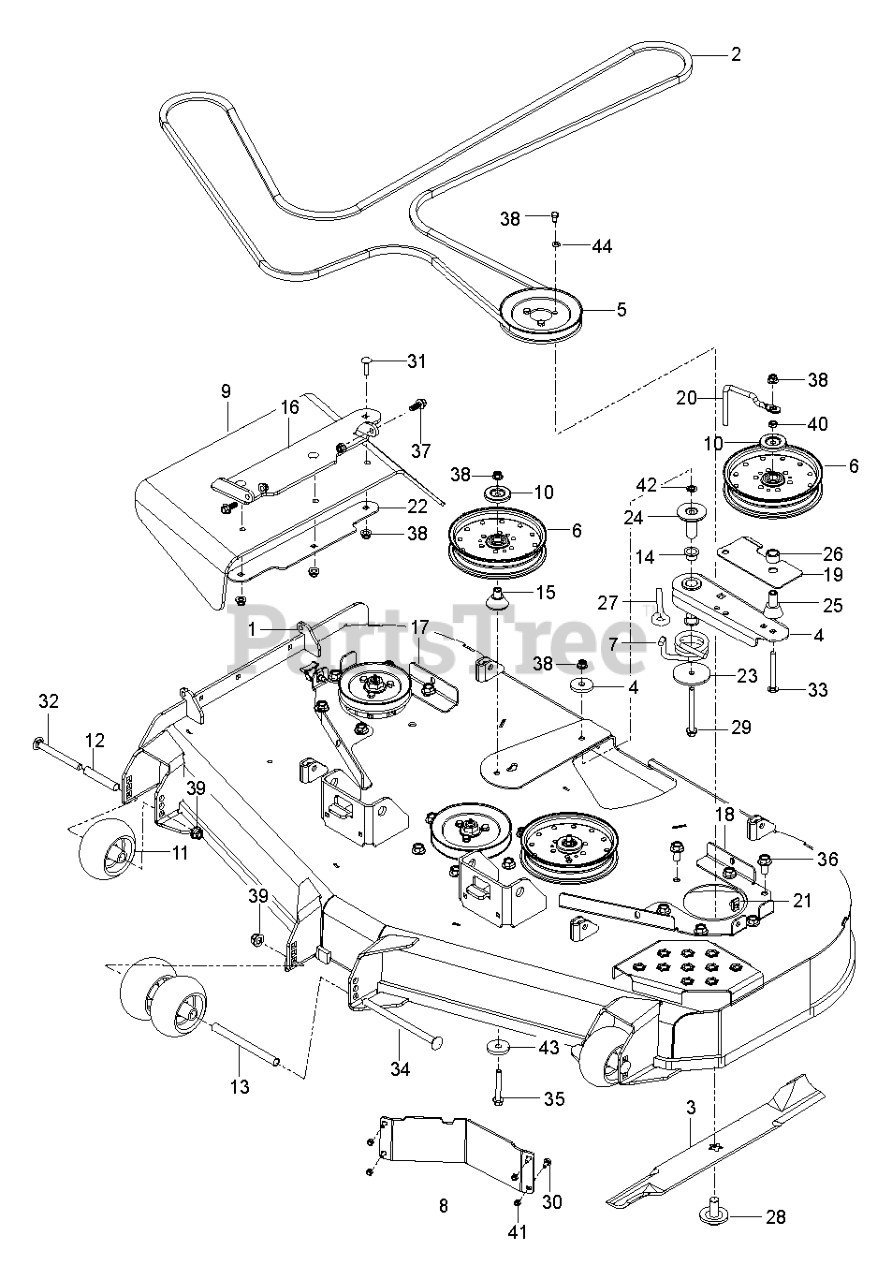

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

16

Husqvarna 582467302

BRACKET.CHUTE.ORG

$74.99

$

Usually ships in 3-10 days

0

39

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

2

Husqvarna 588264801

BELT 5V 176.00

$113.99

$

In Stock, Qty 10

0

29

Husqvarna 521996601

HHFS 3/8-16 X 4 GR5 ZD

$

$

Not available

25

Husqvarna 582468301

SPACER
(Superseded to 599502401)

$9.49

$

In Stock, only 1 left!

0

26

Husqvarna 589455201

SPACER.PULLEY.INTERMEDIATE
(Superseded to 589455202)

$7.99

$

In Stock, only 3 left!

0

44

Husqvarna 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

22

Husqvarna 590523702

PLATE.BACKING.DISCHARGE.CHT.BK

$22.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574196501

TUBE, ROLLER AXLE LONG

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 582468101

SHAFT.MOUNT.ARM.IDLER

$

$

Not available

1

Husqvarna 591359705

DECK.W/DECALS.60".7GA.ORG

$2393.99

$

Usually ships in 3-10 days

0

3

Husqvarna 592894901

BLADE 21" MID LIFT WITH HOLES

$51.99

$

Usually ships in 3-10 days

0

6

Husqvarna 510015101

PULLEY - IDLER 7"

$

$

Not available

28

Husqvarna 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 4 left!

0

7

Husqvarna 582468001

SPRING.TORSION.DECK.IDLER.TMSN

$

$

Not available

43

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

23

Husqvarna 582466401

PLATE.SPRING.RETAINER

$

$

Not available

27

Husqvarna 574202001

EYE BOLT, 3/8 X 4"

$

$

Not available

15

Husqvarna 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, Qty 9

0

32

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

20

Husqvarna 582470201

KEEPER KEEPER., BELT

$

$

Not available

14

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 7

0

34

Husqvarna 872140864

RHSNB 1/2-13 X 8 GR5 ZD

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

4

Husqvarna 582462702

ARM.PNT.WLD.TENSIONR.IDLER.BLK

$43.99

$

In Stock, only 1 left!

0

19

Husqvarna 594913302

BELT.GUIDE.LOWER.PLATE.MS431

$9.49

$

In Stock, only 2 left!

0

5

Husqvarna 539130646

PULLEY - 6.57

$26.99

$

In Stock, only 2 left!

0

11

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

37

Husqvarna 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

35

Husqvarna 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD

$

$

Not available

18

Husqvarna 582463208

BRACKET PULLEY COVER MOUNT RH

$56.99

$

Usually ships in 3-10 days

0

31

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

33

Husqvarna 872140628

BOLT.RDHD SQNK 3/8-16 X 3-1/2

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 582468801

CHUTE.DISCHARGE

$79.99

$

In Stock, only 2 left!

0

8

Husqvarna 510437502

BAFFLE, DIVERTER 54"/60" LH

$60.99

$

Usually ships in 3-10 days

0

36

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD

$

$

Not available

12

Husqvarna 574196401

TUBE, ROLLER AXLE

$

$

Not available

10

Husqvarna 510254501

DUST SHIELD

$

$

Not available

38

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

21

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

30

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 582463207

BRACKET PULLEY COVER MOUNT LH

$43.99

$

Usually ships in 3-10 days

0
