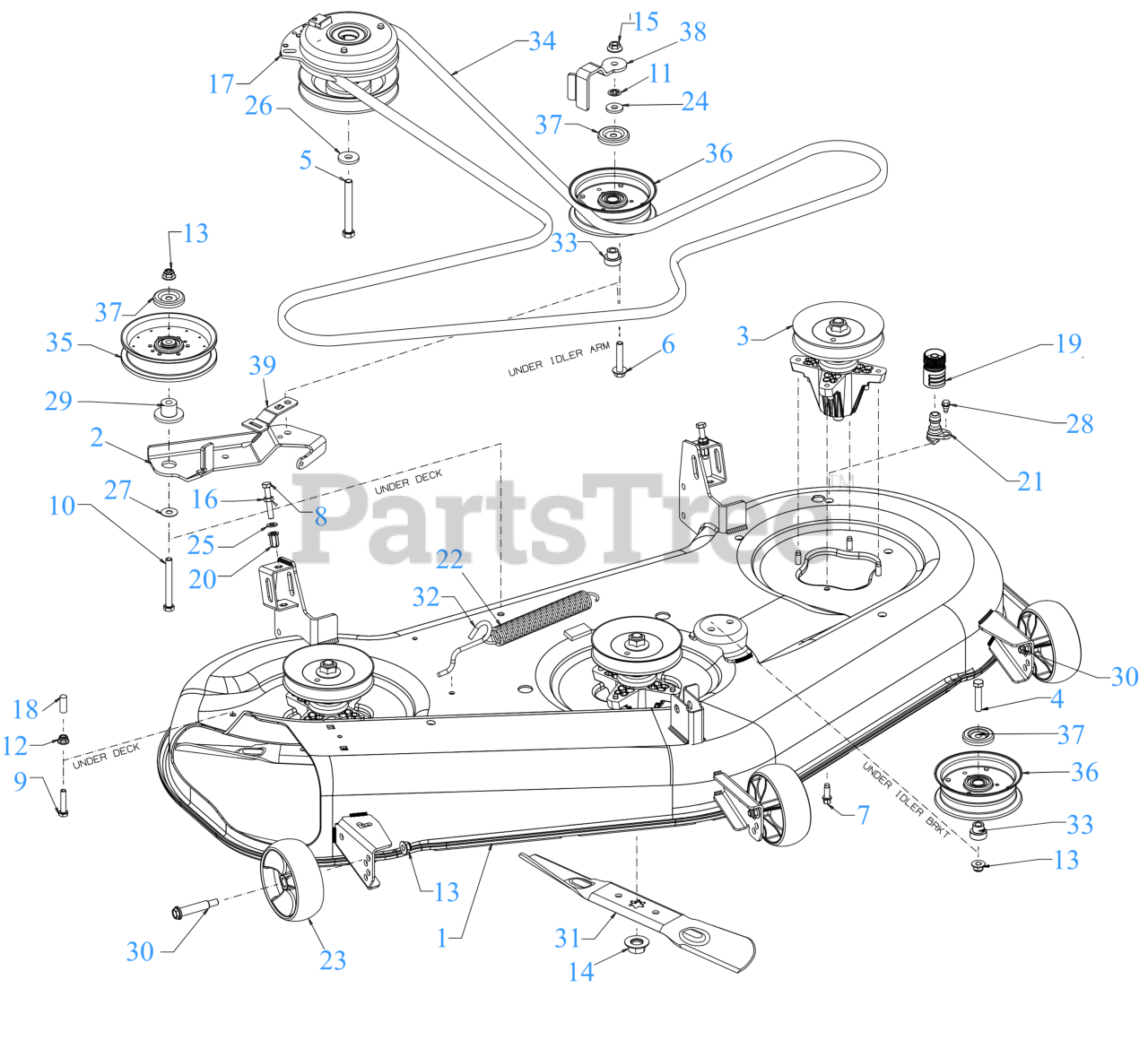

Z 560 (CMXGNAM1130054) (17ADFACW093) - Craftsman 54" Zero-Turn Mower (2020) Deck Parts Diagram

54" Zero-Turn Mower

Deck Parts Diagram

  • Title

1

MTD 603P05699

54" DECK SHELL
(Superseded to 603P05699A)

Note: *CHOOSE COLOR WHEN ORDERING*

$881.99

$

Usually ships in 3-6 days

0

2

MTD 603-06899

DECK IDLER BRACKET

$66.99

$

Usually ships in 3-6 days

0

3

MTD 918-06978

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$140.99

$

In Stock, Qty 20+

0

3

MTD 490-130-C013

Cub Cadet 54" SPINDLE (06978 W/HDW)

Note: Retail Packaged Part

$132.99

$

Usually ships in 3-6 days

0

4

MTD 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

5

MTD 710-04379A

SCREW 7/16-20 x 3.5 GR5

$6.49

$

Usually ships in 3-6 days

0

6

MTD 710-06178

SCREW 3/8-16 x 2.0

$6.49

$

In Stock, Qty 20+

0

7

MTD 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, Qty 6

0

8

MTD 710-07494

SCREW-FULL THREAD 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-3130

SCREW 3/8-16 x 3.25 GR8

$10.99

$

In Stock, only 1 left!

0

11

MTD 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

15

MTD 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 16

0

16

MTD 712-3007

HEX NUT

$6.99

$

In Stock, only 3 left!

0

17

MTD 917-05209

ELECTRIC PTO CLUTCH

$545.99

$

In Stock, only 1 left!

0

18

MTD 720-05075

VINYL CAP

$4.49

$

In Stock, only 2 left!

0

19

MTD 921-04041

WATER NOZZLE ADAPTER

$23.99

$

In Stock, Qty 20+

0

20

MTD 728-05043

NUT RIVET 5/16-18

$5.49

$

In Stock, only 2 left!

0

21

MTD 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 1 left!

0

22

MTD 732-04927

EXTENSION SPRING

$22.99

$

In Stock, Qty 20+

0

23

MTD 734-06305

DECK WHEEL (5.0 DIA x 1.875)
(Superseded to 734-06305A)

$15.99

$

In Stock, Qty 15

0

24

MTD 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 2 left!

0

25

MTD 736-0264

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

26

MTD 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 7

0

27

MTD 736-0344

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

28

MTD 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

29

MTD 738-05081

SHOULDER SPACER

$7.49

$

In Stock, Qty 20+

0

30

MTD 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

$7.99

$

In Stock, Qty 20+

0

31

MTD 942-05056A

18.61" BLADE (2N1)

$30.99

$

In Stock, Qty 20+

0

31

MTD 490-110-C143

Cub Cadet 54" HI LIFT BLADE SET

Note: Retail Packaged Part

$92.99

$

In Stock, only 3 left!

0

31

MTD 490-110-M143

Genuine Factory Parts 54" BLADE SET

Note: Retail Packaged Part

$92.99

$

In Stock, only 2 left!

0

31

MTD 942-05056-L

54" 6 PT STAR LOW LIFT/SAND BLADE

$35.99

$

Usually ships in 3-6 days

0

31

MTD 490-110-C183

Cub Cadet 54" LOWLIFT BLADE SET

Note: Retail Packaged Part

$106.99

$

Usually ships in 3-6 days

0

31

MTD 490-110-M183

Genuine Factory Parts 54" LOWLIFT BLADE SET

Note: Retail Packaged Part

$99.99

$

In Stock, only 2 left!

0

31

MTD 942-05056-X

54" 6 PT STAR XTREME MULCH BLADE

$33.99

$

In Stock, only 4 left!

0

31

MTD 490-110-C179

Cub Cadet 54" XTREME BLADE SET

Note: Retail Packaged Part

$99.99

$

In Stock, only 3 left!

0

31

MTD 490-110-M179

Genuine Factory Parts 54" XTREME MULCH BLADE SET

Note: Retail Packaged Part

$99.99

$

In Stock, only 2 left!

0

32

MTD 747-05608A

DECK SPRING HOOK

$3.49

$

In Stock, Qty 20+

0

33

MTD 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

34

MTD 954-04329A

V-BELT B SEC x 148.25

$100.99

$

In Stock, only 4 left!

0

34

MTD 490-501-C067

Cub Cadet 54" DECK DRIVE BELT

Note: Retail Packaged Part

$100.99

$

In Stock, only 3 left!

0

34

MTD 490-501-Y067

Troy-Bilt 54" DECK DRIVE BELT

Note: Retail Packaged Part

$

$

Currently unavailable

35

MTD 756-04511B

FLAT IDLER PULLEY

$53.99

$

In Stock, Qty 20+

0

36

MTD 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

37

MTD 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

38

MTD 783-08619

BELT KEEPER
(Superseded to 783Z08619A)

$24.99

$

In Stock, Qty 20+

0

39

MTD 783-08867

BELT KEEPER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-08867-0637

KEEPER-BELT - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0
