Z 560 (967929902-00) - Husqvarna 60" Zero-Turn Mower (2019-06) FRAME Parts Diagram

60" Zero-Turn Mower

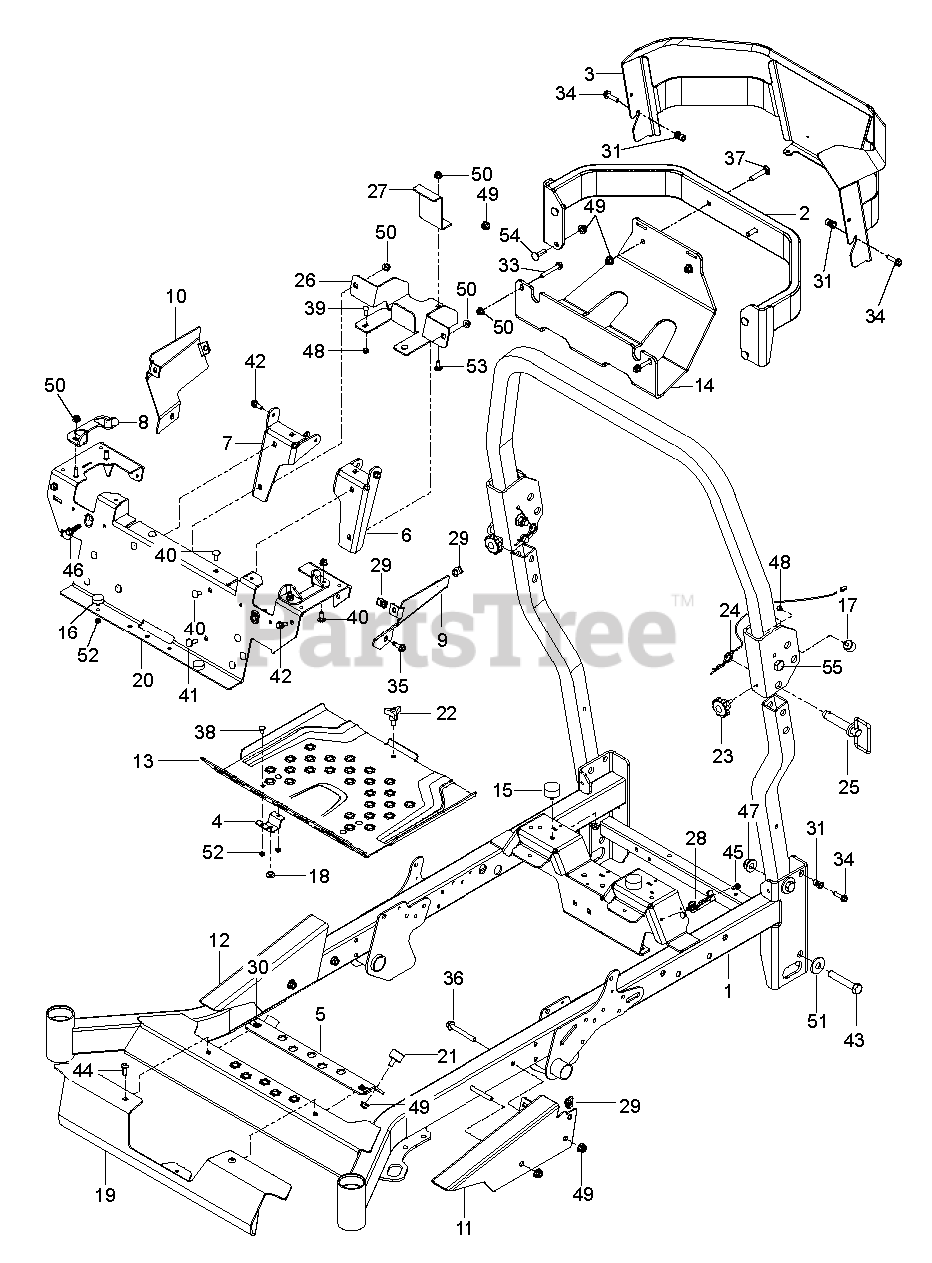

FRAME Parts Diagram

  • Title

42

Husqvarna 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 582478701

BUMPER 5/16-18
(Superseded to 582478702)

$10.99

$

In Stock, only 1 left!

0

16

Husqvarna 575811501

BUMPER, 1/4-20 STUD, 1/4

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 589744001

ISOLATOR.PZ.FOOTREST

$

$

Not available

27

Husqvarna 582460602

BRACKET.PNT.MOUNT.BATTERY.EDIP

$

$

Not available

54

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

4

Husqvarna 589808802

COVER.PNT.VALANCE.PZ.GREY

$14.99

$

Usually ships in 3-10 days

0

30

Husqvarna 589806801

SCREW.BUTTON.HEAD.TORX.3/8-161

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 817490516

SCREW
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 817490408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 589797201

SCREW.BUTTON.HEAD.TORX.3/8-161

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 522801401

BUMPER, MALE STUD, 1/4-20

$4.99

$

In Stock, only 2 left!

0

39

Husqvarna 539115620

1/4-20X3/4 CARR BLT
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 591101701

PIN.HAIR.DOUBLE.LOOP.W/LANYARD

$

$

Not available

19

Husqvarna 589745202

COVER.PNT.VALANCE.PZ.GREY

$113.99

$

Usually ships in 3-10 days

0

38

Husqvarna 872140404

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 591101601

PIN.ROPS.W/HANDLE

$15.99

$

Usually ships in 3-10 days

0

28

Husqvarna 589500701

BRACKET.FUSE.RELAY.HOUSING.PZ

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 589448202

BRACKET.PNT.MTG.SEAT.LH.EDIP

$31.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

51

Husqvarna 539102653

WASHER, 5/8 FLAT

$3.99

$

In Stock, only 4 left!

0

10

Husqvarna 595327504

PANEL CLOSE OUT RH ORANGE MS-6

$14.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 522675702

BUMPER.REAR.ORANGE

$241.99

$

Usually ships in 3-10 days

0

13

Husqvarna 589304602

PLATE.PNT.FOOTREST.PZ.ORANGE

$113.99

$

Usually ships in 3-10 days

0

49

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

22

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 591176601

BOLT.HEXAG.5/8-11X4-1/4.G5.ZPY

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 574233801

HHFS 5/16-18 X 2.25 GD 5

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 591359801

FRAME.W/DECALS.48-60".ORG

Note: w/ SAFETY DECALS

$1937.99

$

Usually ships in 3-10 days

0

3

Husqvarna 587898002

GUARD.PNT.ENGINE.GREY

$194.99

$

Usually ships in 3-10 days

0

8

Husqvarna 582481101

CABLE.YOKE.PARK.BRAKE

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 582460702

PLATE.PNT.BATTERY.EDIP
(Superseded to 596750302)

$27.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

46

Husqvarna 585986101

SCREW.SHAKEPROOF.1.25.BLACK

$4.99

$

In Stock, only 1 left!

0

41

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 582460801

SCREW M6 X 8MM HEX CAP

$

$

Not available

47

Husqvarna 525829101

NUT 5/8-11 FLG NYLOC ZD

$4.99

$

In Stock, only 3 left!

0

12

Husqvarna 582480804

PANEL.PNT.WEDGE.RH.ORG

$56.99

$

Usually ships in 3-10 days

0

23

Husqvarna 591344501

KNOB.5/16-18X1"BLACK

$9.49

$

In Stock, only 2 left!

0

29

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

52

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 596694102

PLATE SKID, Z500 LONG YAMAHA G

$96.99

$

Usually ships in 3-10 days

0

Husqvarna 590877803

ROPS.KIT.W/BOX.GREY

Note: ROPS ASSY

$1025.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539111028

NUTSERT 5/16-18 THICK GRIP

$

$

Not available

20

Husqvarna 582480502

CROSS.MEMBER.PNT.SEAT.FRONT.OR

$193.99

$

Usually ships in 3-10 days

0

34

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 589807202

BRACKET.PNT.ISOLATOR.SUPPT.BLK

$45.99

$

Usually ships in 3-10 days

0

9

Husqvarna 595327502

PANEL CLOSE OUT LH ORANGE MS-6

$14.99

$

Usually ships in 3-10 days

0

43

Husqvarna 580754601

5/8-11 X 3-1/2 HHB GRADE 5

$

$

Not available

7

Husqvarna 589448204

BRACKET.PNT.MTG.SEAT.RH.EDIP

$31.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 582480803

PANEL.PNT.WEDGE.LH.ORG

$56.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, only 4 left!

0

36

Husqvarna 577117701

HHFS 3/8-16 X 3 GRD 5 ZD
(Superseded to 577117702)

$4.99

$

Usually ships in 3-10 days

0
