Z 554x - Husqvarna 54" Zero-Turn Mower ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

54" Zero-Turn Mower

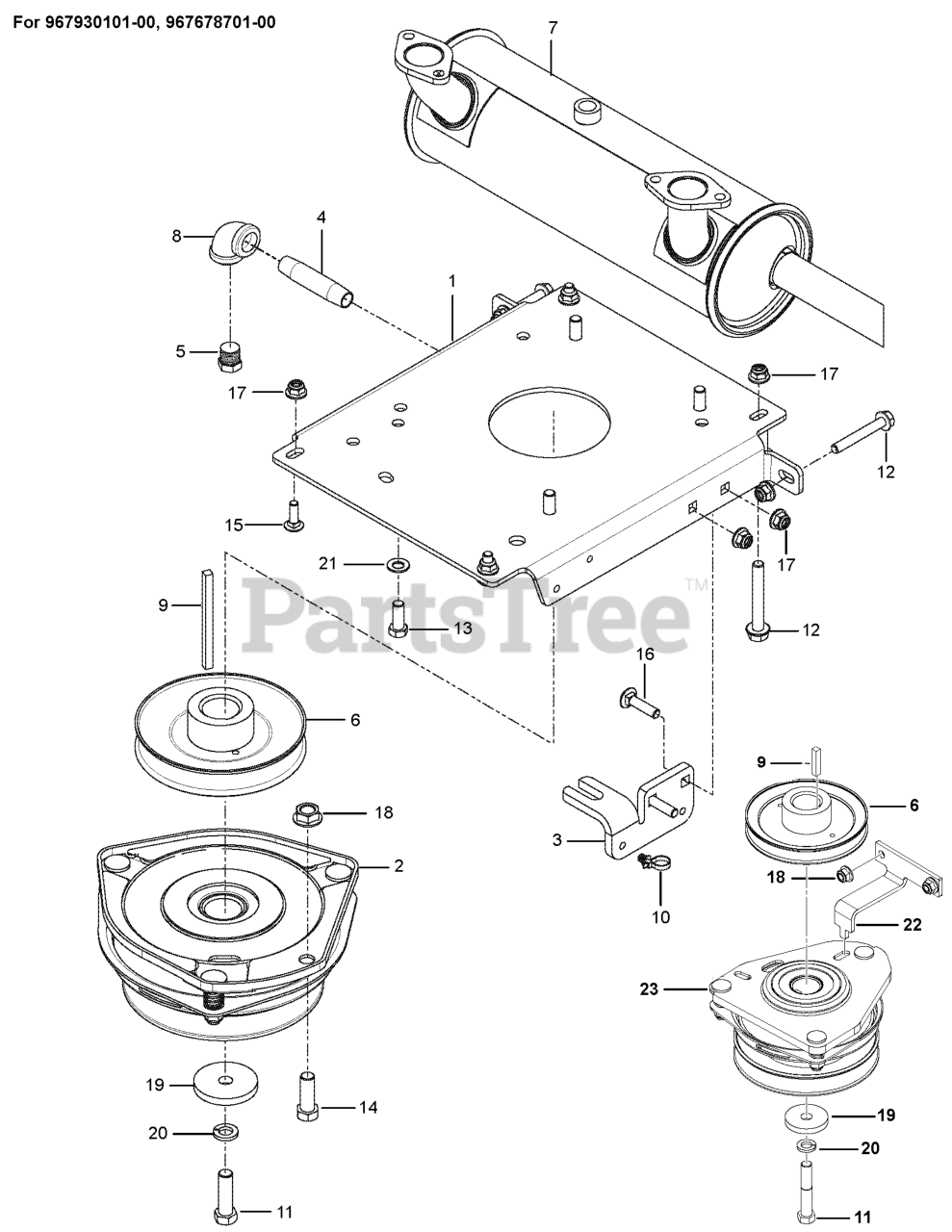

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title
9

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

Note: For 967930101-00

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 582733302

PLATE.PNT.ENGINE.PZ/PZT.EDIP

$68.99

$

Usually ships in 3-10 days

0

6

Husqvarna 585813701

PULLEY.DRIVE.XMSN

Note: For 967930101-00

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 522837001

PLUG, DRAIN 3/8 NPTF

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 581332806

Bolts

Note: For 967930101-00

$8.99

$

In Stock, Qty 10

0

18

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

Note: For 967930101-00

$6.99

$

In Stock, Qty 20+

0

17

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

16

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

20

Husqvarna 596238901

Washers

Note: For 967930101-00

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 574233801

HHFS 5/16-18 X 2.25 GD 5

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 510019801

PULLEY, ENGINE

Note: For 967678701-00

$56.99

$

In Stock, only 1 left!

0

21

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

15

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

22

Husqvarna 585813602

BRACKET.CLUTCH.STOP.PNTX431
(Superseded to 585813601)

Note: For 967930101-00

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 596770301

Washers

Note: For 967930101-00

$5.99

$

In Stock, Qty 20+

0

18

Husqvarna 539102582

NUT 7/16C WHIZ

Note: For 967678701-00

$

$

Not available

11

Husqvarna 581332801

CLUTCH BOLT7/16-20X1.5GR5.96HR

Note: For 967678701-00

$

$

Not available

9

Husqvarna 525749901

KEY, 1/4 SQ X 3.5

Note: For 967678701-00

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522676702

STOP, CLUTCH, OGURA
(Superseded to 522676703)

$

$

Not available

4

Husqvarna 539118911

PIPE NIPPLE 3/8 X 3

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

Note: For 967930101-00

$341.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539125626

BLADE WASHER

Note: For 967678701-00

$9.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525749501

CLUTCH, GT3.5

$683.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990247

WASHER 7/16 LOCK

Note: For 967678701-00

$

$

Not available

8

Husqvarna 539105072

90 DEG.ELBOW 3/8NPT

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 596844201

MUFFLER YAMAHA PN: 7UD-E4711-

$512.99

$

Usually ships in 3-10 days

0
