Z 554x (967678601-00) - Husqvarna 54" Zero-Turn Mower (2017-09) STEERING Parts Diagram

54" Zero-Turn Mower

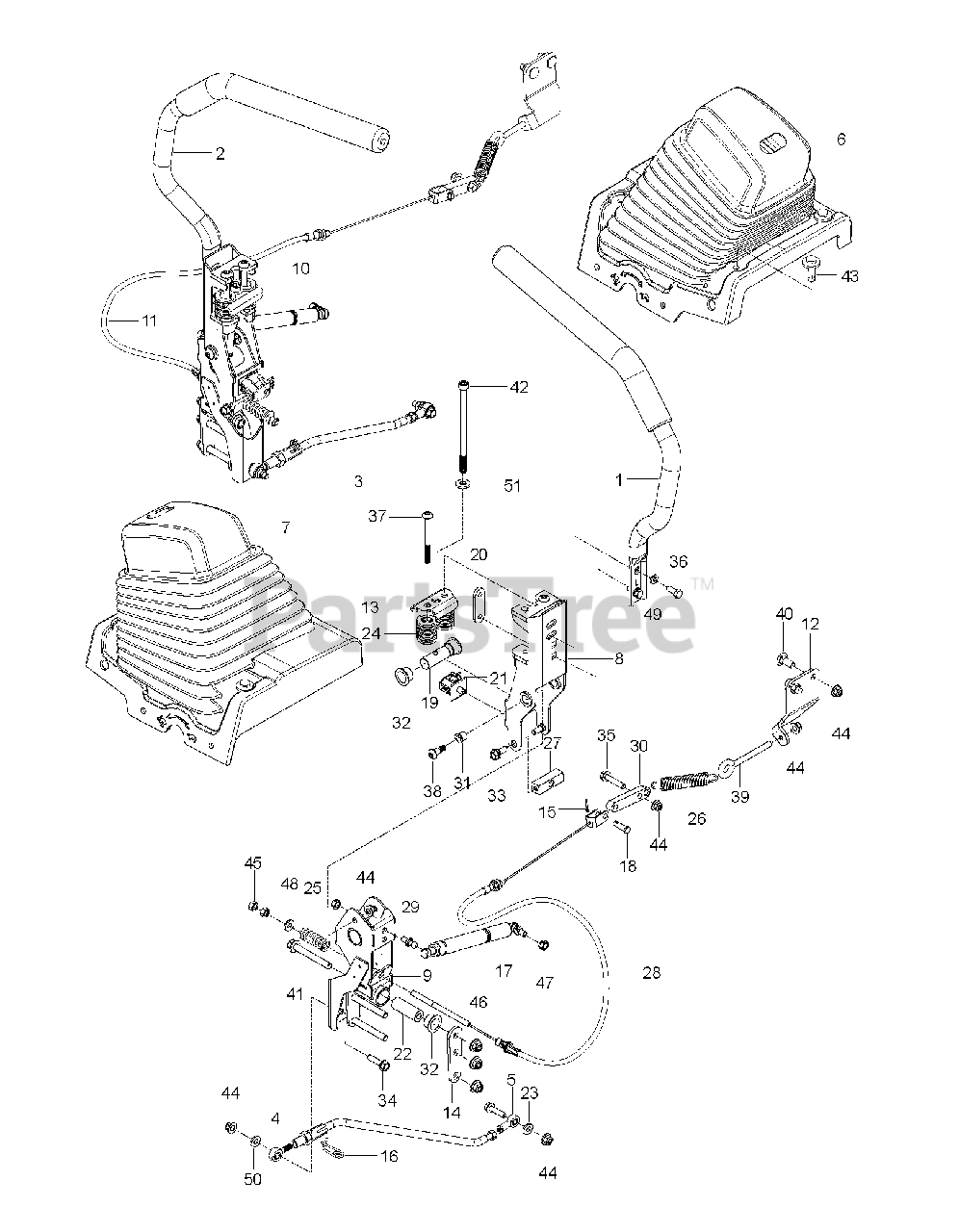

STEERING Parts Diagram

  • Title

1

Husqvarna 582475501

Drive Lever Assembly, LH

$51.99

$

In Stock, only 1 left!

0

2

Husqvarna 582475502

Drive Lever Assembly, RH

$51.99

$

Usually ships in 3-10 days

0

3

Husqvarna 592653702

KIT.CONTROL.LINKAGE.RIGHT

Note: . 4 5 16 23

$37.99

$

Usually ships in 3-10 days

0

Husqvarna 592653701

KIT.CONTROL.LINKAGE.LEFT

Note: . 4 5 16 23

$37.99

$

Usually ships in 3-10 days

0

4

Husqvarna 588692502

ROD.END.MALE.LH.THREAD
(Superseded to 539116690)

$10.99

$

In Stock, only 1 left!

0

5

Husqvarna 579764601

Joint Heim, Feml.516.R

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 591193301

KIT.SERVICE.LEVER.BELLOW.LH

Note: . 43

$85.99

$

In Stock, only 1 left!

0

7

Husqvarna 591193302

KIT.SERVICE.LEVER.BELLOW.RH

Note: . 43

$85.99

$

Usually ships in 3-10 days

0

8

Husqvarna 592653801

Carrier Kit with Bushings, Upper LT

Note: w /BEARINGS LEFT. 31

$85.99

$

Usually ships in 3-10 days

0

Husqvarna 592653802

Carrier Kit with Bushings, Upper RT

Note: w /BEARINGS RIGHT. 31

$85.99

$

Usually ships in 3-10 days

0

9

Husqvarna 592653901

Carrier Kit with Bushings, Lower

$62.99

$

Usually ships in 3-10 days

0

10

Husqvarna 592724001

KIT.CONTROL.MECHANISM.LEFT

Note: . without 3 17

$227.99

$

Usually ships in 3-10 days

0

Husqvarna 592724002

KIT.CONTROL.MECHANISM.RIGHT

Note: . without 3 17

$227.99

$

Usually ships in 3-10 days

0

11

Husqvarna 592653501

KIT.CABLE.BRAKE.PARKING.LEFT

Note: . 15 16 25 28 45 48

$34.99

$

Usually ships in 3-10 days

0

12

Husqvarna 582477802

BRACKET.PNT.RETRN.SPRNG.LH.BLK

$13.99

$

Usually ships in 3-10 days

0

Husqvarna 582477804

BRACKET.PNT.RETRN.SPRNG.RH.BLK

$13.99

$

Usually ships in 3-10 days

0

13

Husqvarna 582476901

BRACKET.RETAINING.SPRING

$

$

Not available

14

Husqvarna 582475102

BRACKET.PNT.CONTROLS.MTG.EDIP

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

16

Husqvarna 582551901

CLIP.RETAINER.CONTROLS

$6.99

$

In Stock, only 1 left!

0

17

Husqvarna 588775401

DAMPER

$66.99

$

Usually ships in 3-10 days

0

18

Husqvarna 582477401

PIN.CLEVIS.5/16.DIA.3/4.USABLE

$

$

Not available

19

Husqvarna 589505101

PIVOT

$

$

Not available

20

Husqvarna 589489601

RETAINER

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 589500901

SWITCH.SNPMNT.DELTA.NCNC.PZREF

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 582475001

SPACER.PIVOT

$

$

Not available

23

Husqvarna 582711303

SPACER.7_16OD;5_16ID;STEP.UP

$

$

Not available

24

Husqvarna 582477001

SPRING 1.25"ODX1.5"L
(Superseded to 582477002)

$22.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532151332

SPRING, BRAKE ROD

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 582477701

SPRING.RETURN.BRAKE

$

$

Not available

27

Husqvarna 582477201

CABLE.YOKE.PARK.BRAKE

$

$

Not available

28

Husqvarna 582477501

Parking Brake Cable

$37.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539110607

STUD.BALL.10MM

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 582477601

BRACKET.EXTENSION

$

$

Not available

31

Husqvarna 582476801

BEARING.FLG.3/8.SHAFT.1/2.HSG

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 7

0

33

Husqvarna 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 525465401

HHFS 5/16-18 X 1.5 GD 5

$7.49

$

Usually ships in 3-10 days

0

36

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 582477101

SCREW.SHCS.5/16-18 X 3-1/2"

$

$

Not available

38

Husqvarna 582476401

SCREW.SHLDR.3/8 X 1/2.5/16-18

$

$

Not available

39

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

40

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 577117701

HHFS 3/8-16 X 3 GRD 5 ZD
(Superseded to 577117702)

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 589505601

SCREW.SHCS.3/8-16 X 6L.ZY

$

$

Not available

43

Husqvarna 582482901

RIVET.PUSH.PIN.0.25IN.HOLE

$3.49

$

Usually ships in 3-10 days

0

44

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

45

Husqvarna 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

47

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

49

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

50

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

51

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0
