Z 554 (967844301-00) - Husqvarna 54" Zero-Turn Mower (2017-09) ENGINE MOUNTING GUARDS MUFFLER Parts Diagram

54" Zero-Turn Mower

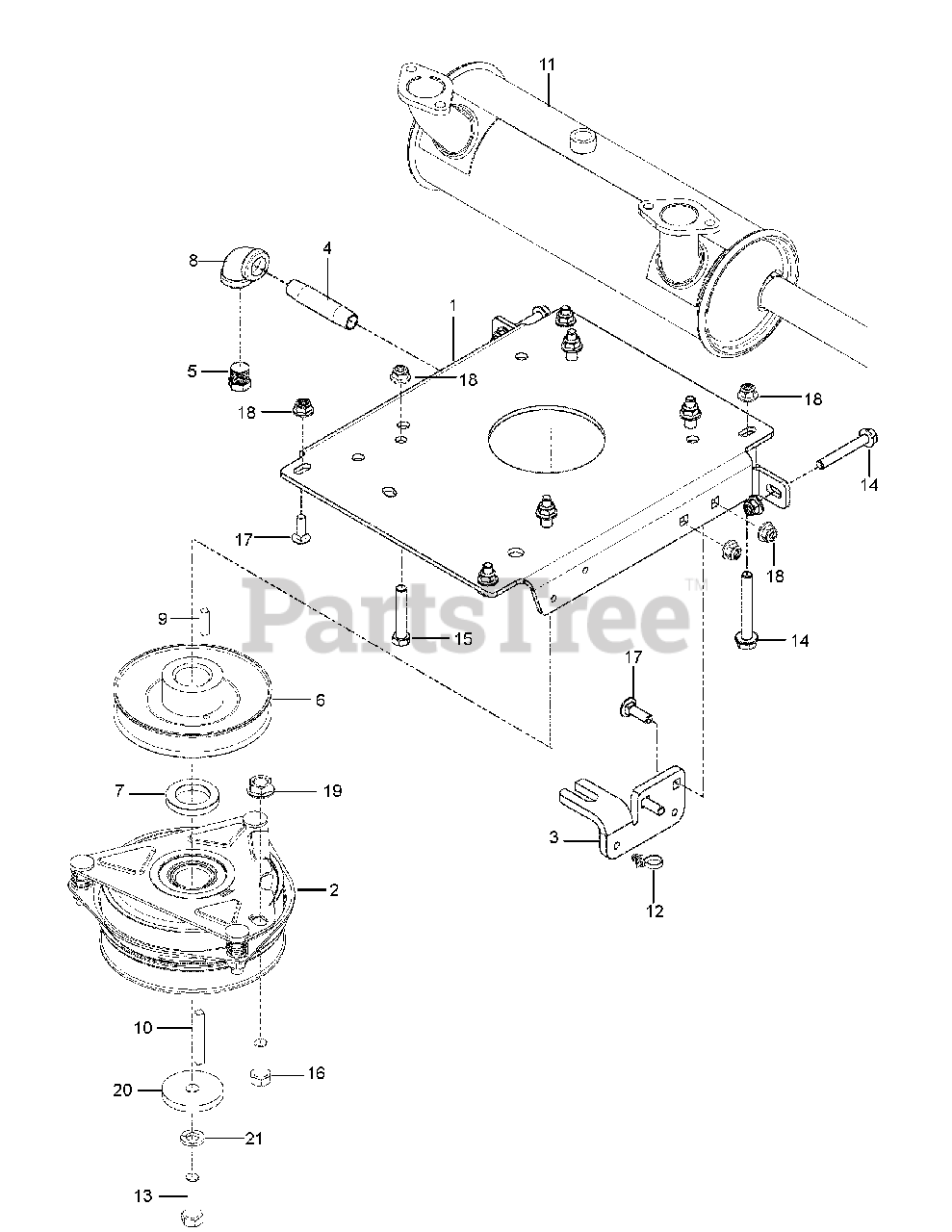

ENGINE MOUNTING GUARDS MUFFLER Parts Diagram

  • Title

1

Husqvarna 582733302

PLATE.PNT.ENGINE.PZ/PZT.EDIP

$68.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539113437

CLUTCH, 150 FT/LBS

$484.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522676702

STOP, CLUTCH, OGURA
(Superseded to 522676703)

$

$

Not available

4

Husqvarna 539118911

PIPE NIPPLE 3/8 X 3

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 522837001

PLUG, DRAIN 3/8 NPTF

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 510019801

PULLEY, ENGINE

$56.99

$

In Stock, only 1 left!

0

7

Husqvarna 525313901

SPACER, .25 X 1.135 I.D.

$

$

Not available

8

Husqvarna 539105072

90 DEG.ELBOW 3/8NPT

$7.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539105308

KEY 1/4 SQ X 1.0

$4.99

$

In Stock, Qty 5

0

10

Husqvarna 539910210

KEY 1/4 SQ X 2

$7.49

$

In Stock, only 1 left!

0

11

Husqvarna 583901001

MUFFLER.KOH.EFI.W/O2.SENSOR

$376.99

$

Usually ships in 3-10 days

0

12

Husqvarna 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 581332801

CLUTCH BOLT7/16-20X1.5GR5.96HR

$

$

Not available

14

Husqvarna 574233801

HHFS 5/16-18 X 2.25 GD 5

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 525465401

HHFS 5/16-18 X 1.5 GD 5

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539104867

HCS 7/16-14 X 1-1/4 GR 5 ZD

$

$

Not available

17

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

19

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

20

Husqvarna 539125626

BLADE WASHER

$9.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available
