Z 548 (967669501-00) - Husqvarna 48" Zero-Turn Mower (2017-09) GUARDS Parts Diagram

48" Zero-Turn Mower

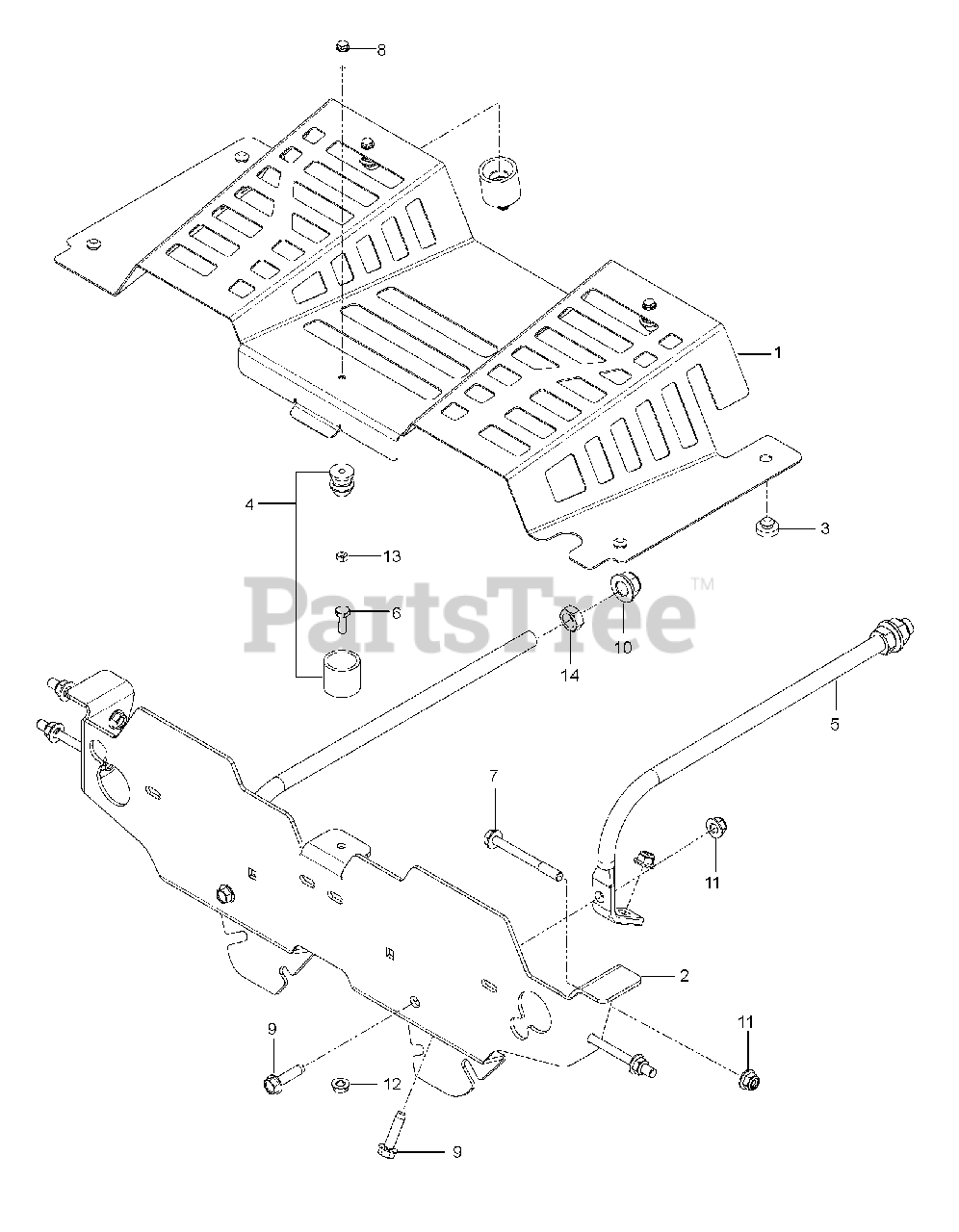

GUARDS Parts Diagram

  • Title

1

Husqvarna 591359901

SHIELD.FAN.W/DECALS

$51.99

$

Usually ships in 3-10 days

0

2

Husqvarna 582461206

BRACKET ANCHOR CABLE ORANGE X6

$85.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

4

Husqvarna 582461701

HOLDER.ASM.STEM.BASE.WASHER

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 582461303

ROD.CROSS.MEMBER.ANVH.CAB.YZIN

$

$

Not available

6

Husqvarna 874780412

BOLT
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

8

Husqvarna 503200001

SCREW M6SF 5X20

$6.49

$

In Stock, only 3 left!

0

9

Husqvarna 587592101

SCREW.THDROL.5/16-18X1.25.TYTT

$

$

Not available

10

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

11

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

12

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

13

Husqvarna 731231405

NUT M6M M5

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 873350800

NUT.HEX.JAM.1/2-13

$

$

Not available
