Z 5426 (968999508) - Husqvarna 54" Zero-Turn Mower (2007-04) Mower Lift / Deck Lift Parts Diagram

54" Zero-Turn Mower

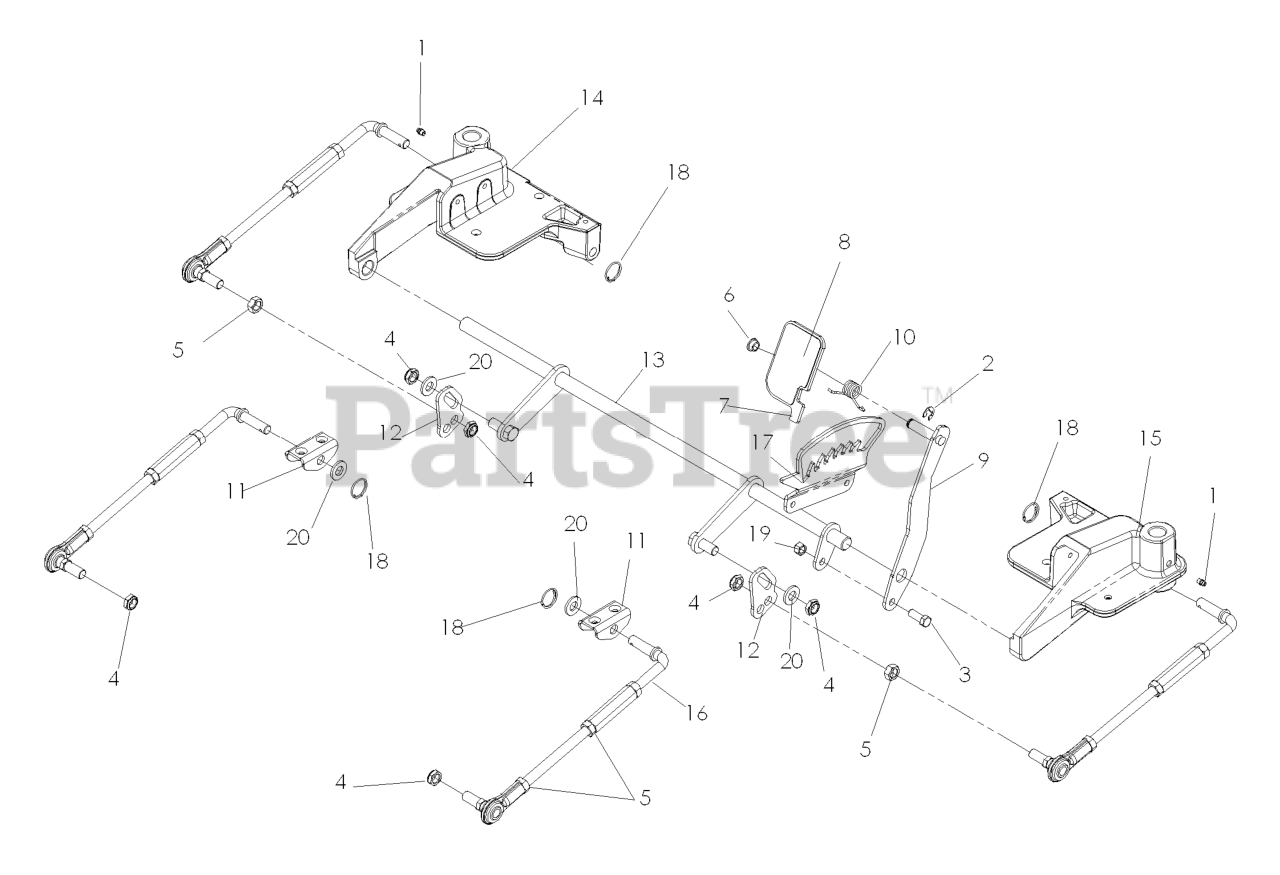

Mower Lift / Deck Lift Parts Diagram

  • Title

1

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539106791

HEX BOLT 3/8 X 1"

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 539108736

NUT 1/2-20 HEX JAM ZD

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

7

Husqvarna 539110292

FOOT PEDAL

$

$

Not available

8

Husqvarna 539110308

FOOT PAD, NON-SLIP

$

$

Not available

9

Husqvarna 539110266

LIFT FOOT, LEVER WELDED
(Superseded to 539110275)

$

$

Not available

10

Husqvarna 539110295

SPRING, PEDAL, LIFT

$6.49

$

In Stock, only 4 left!

0

11

Husqvarna 539113561

BRACKET, DECK HANGER

$34.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539113562

CONNECTOR, DECK LIFT

$

$

Not available

13

Husqvarna 539113565

LIFT SHAFT WLDT

$

$

Not available

14

Husqvarna 539113586

CASTING, CASTER, LT

$159.99

$

In Stock, only 1 left!

0

15

Husqvarna 539113587

CASTING, CASTER, RT

$121.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539113923

LINKAGE ASM, LIFT

$

$

Not available

17

Husqvarna 539113931

HEIGHT PLATE, DECK

$

$

Not available

18

Husqvarna 539916459

RETAINER

$6.49

$

In Stock, Qty 5

0

19

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0
