Z 5426 (968999508) - Husqvarna 54" Zero-Turn Mower (2007-04) 54" Cutting Deck Parts Diagram

54" Zero-Turn Mower

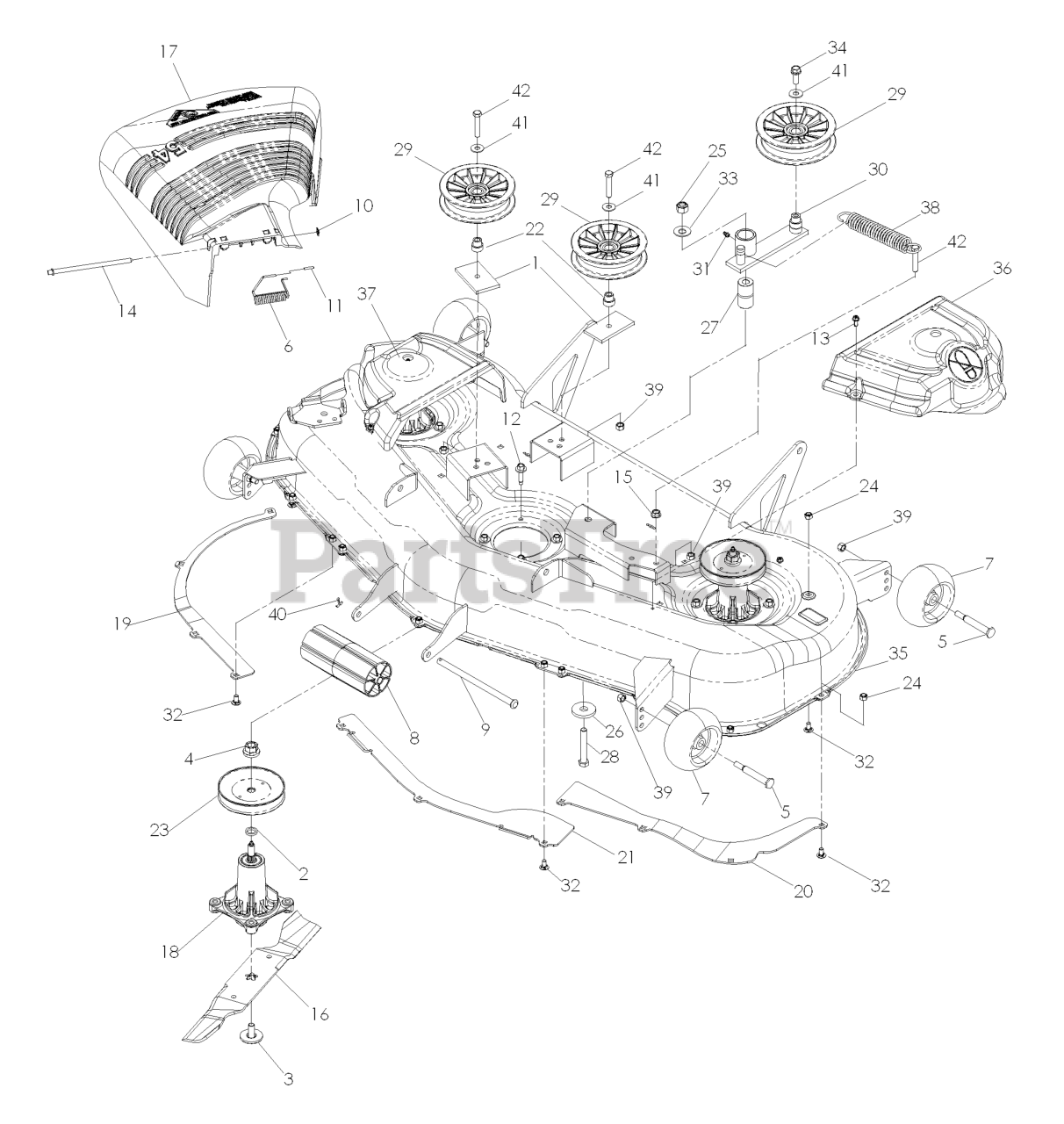

54" Cutting Deck Parts Diagram

  • Title

1

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

2

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532174365

BOLT 7/16 ASM BLADE
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

5

Husqvarna 532137644

BOLT, SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

6

Husqvarna 539107609

TORSION SPRING

$5.99

$

In Stock, Qty 20+

0

7

Husqvarna 532133957

WHEEL GAGE DONUT

$13.99

$

In Stock, Qty 10

0

8

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 13

0

9

Husqvarna 539107613

NOSE ROLLER ROD
(Superseded to 594092501)

$6.99

$

In Stock, Qty 19

0

10

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

13

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539112053

BLADE STANDARD 54
(Superseded to 532187255)

$22.99

$

In Stock, Qty 20+

0

17

Husqvarna 539112054

DEFLECTOR, 54"
(Superseded to 532187257)

$80.99

$

In Stock, Qty 8

0

18

Husqvarna 539112057

MANDREL GREASABLE
(Superseded to 587820301)

$56.99

$

In Stock, Qty 11

0

19

Husqvarna 539112059

BAFFLE, RIGHT 54"
(Superseded to 532187342)

$12.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539112060

BAFFLE LEFT 54
(Superseded to 532187344)

$

$

Not available

21

Husqvarna 539112062

BAFFLE, CENTER, 54"
(Superseded to 532187607)

$

$

Not available

22

Husqvarna 539112076

IDLER BUSHING

$

$

Not available

23

Husqvarna 539112171

PULLEY
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

27

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, Qty 8

0

28

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

29

Husqvarna 539131148

PULLEY - IDLER, NYLON
(Superseded to 589766102)

$31.99

$

In Stock, Qty 11

0

30

Husqvarna 539112198

IDLER ARM

$121.99

$

In Stock, only 3 left!

0

31

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

35

Husqvarna 539114046

DECK W/DECALS 54" HUS ORANGE

$

$

Not available

36

Husqvarna 539113557

BELT SHIELD, LT

$40.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539113558

BELT SHIELD, RT

$

$

Not available

38

Husqvarna 539113934

SPRING

$10.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

41

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

42

Husqvarna 539110832

DECK BELT
(Superseded to 510201101)

Note: NOT SHOWN

$

$

Not available
