Z 54 XP (17ASFAC3A66) - Troy-Bilt Mustang 54" Zero-Turn Mower (2023) Drive Parts Diagram

Mustang 54" Zero-Turn Mower

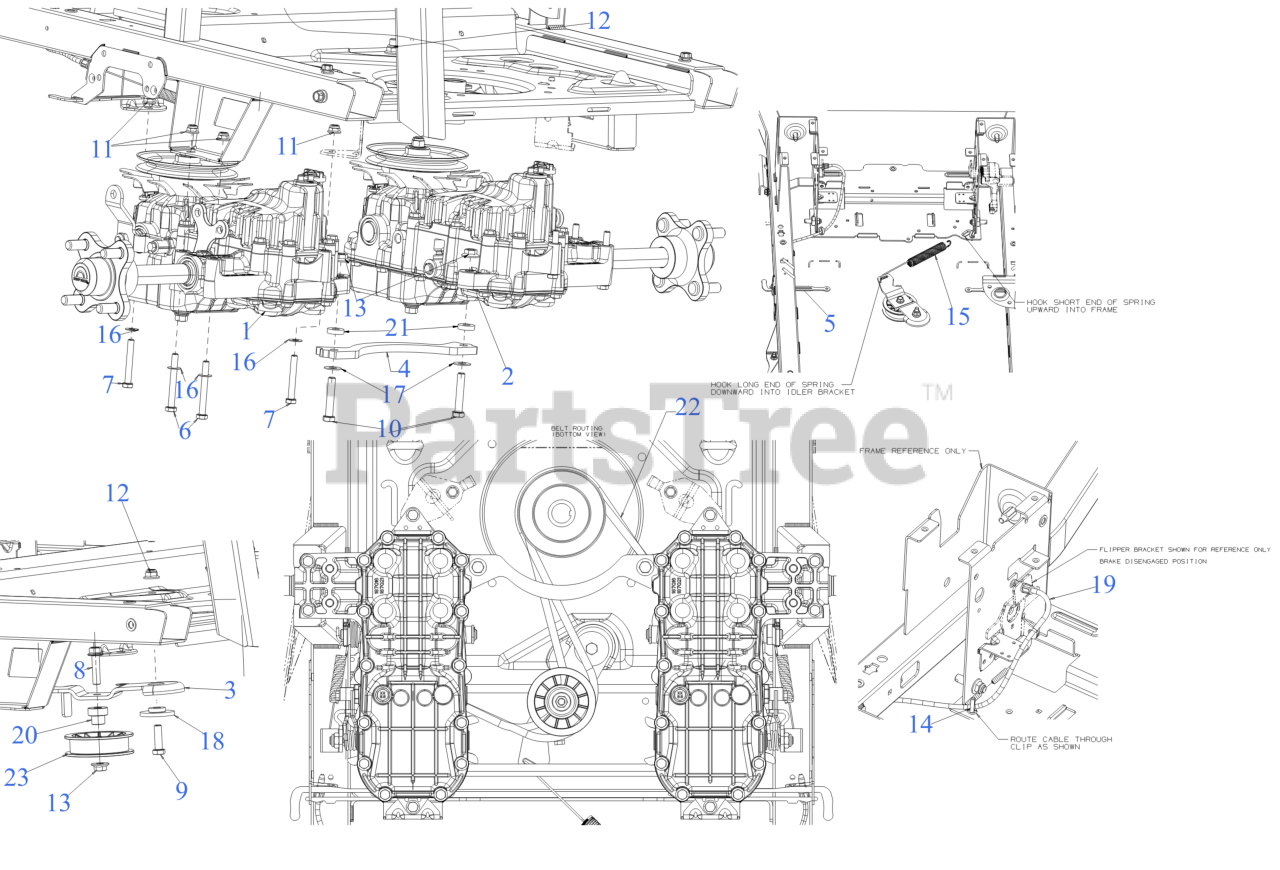

Drive Parts Diagram

  • Title

1

Troy-Bilt 618P09959

HYDRO TRANSMISSION (LH)

Note: (See Separate Breakdown)

$1011.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 618P09960

HYDRO TRANSMISSION (RH)

Note: (See Separate Breakdown)

$1011.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 703E26186

HYDRO DRIVE IDLER BRACKET

$25.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 703-27533

TRANSMISSION BRACKET

$32.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 703Z27700

TRANSMISSION BYPASS PLATE

$

$

Not available

6

Troy-Bilt 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 710-06749

HEX HEAD BOLT (3/8-16:1.50 GR8)

$6.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-3096

SCREW 3/8-16 x 2.0 GR 8

$7.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 16

0

14

Troy-Bilt 726-3055

CABLE RETAINER CLIP

$6.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 732-06226

EXTENSION SPRING .75 DIA X 10.27

$15.99

$

In Stock, Qty 8

0

16

Troy-Bilt 736-0278

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 736-05080

FLAT WASHER .401X.88

$3.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 746P06977

PARK BRAKE CABLE

$36.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 750-06192A

SPACER

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 954-04317A

TRANSMISSION DRIVE BELT A x 67

$50.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 756-05032

FLAT IDLER PULLEY 3.00 OD

$26.99

$

In Stock, only 2 left!
