Z 530 (CMXGNAM201701) (17AAFACT091) - Craftsman 46" Zero-Turn Mower (2020) Deck Parts Diagram

46" Zero-Turn Mower

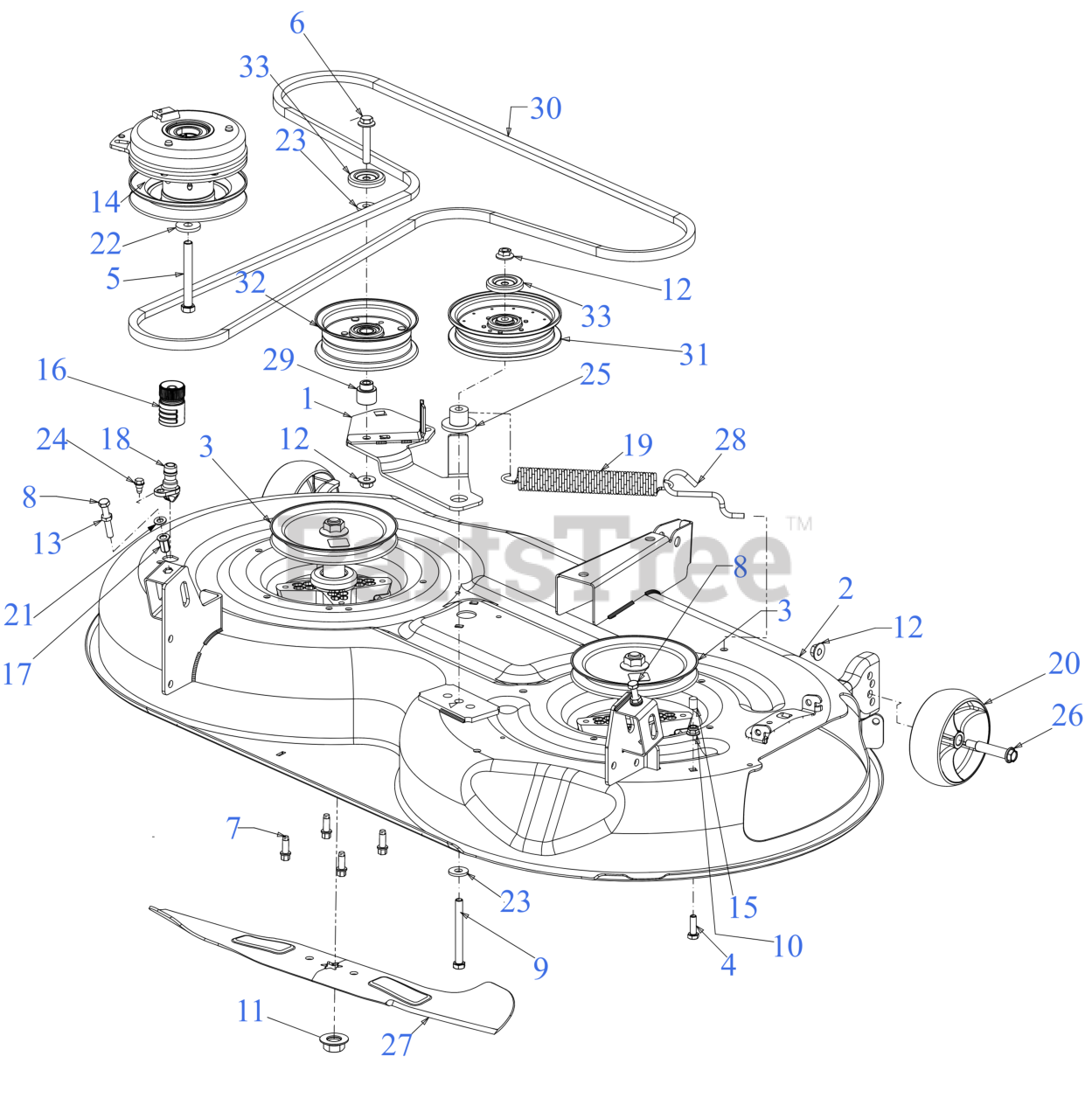

Deck Parts Diagram

  • Title

1

MTD 903-05230

BRACKET ASSEMBLY-DECK IDLER

$46.99

$

Usually ships in 3-6 days

0

2

MTD 603P05740

46" DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$729.99

$

Usually ships in 3-6 days

0

3

MTD 918-05078A

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$155.99

$

In Stock, only 4 left!

0

3

MTD 490-130-C018

Cub Cadet 46" SPINDLE ASSEMBLY (05078A)

Note: Retail Packaged Part

$132.99

$

Usually ships in 3-6 days

0

4

MTD 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-04379A

SCREW 7/16-20 x 3.5 GR5

$6.49

$

In Stock, only 2 left!

0

6

MTD 710-06215

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, only 1 left!

0

7

MTD 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, Qty 6

0

8

MTD 710-07494

SCREW-FULL THREAD 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-3085

SCREW 3/8-16 x 3.50 GR5

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

12

MTD 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 17

0

13

MTD 712-3007

HEX NUT

$6.99

$

In Stock, only 3 left!

0

14

MTD 917-05209

ELECTRIC PTO CLUTCH

$545.99

$

In Stock, only 1 left!

0

15

MTD 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 7

0

16

MTD 921-04041

WATER NOZZLE ADAPTER

$23.99

$

In Stock, Qty 20+

0

17

MTD 728-05043

NUT RIVET 5/16-18

$5.49

$

In Stock, only 2 left!

0

18

MTD 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 1 left!

0

19

MTD 732-04927

EXTENSION SPRING

$22.99

$

In Stock, Qty 20+

0

20

MTD 734-06305

DECK WHEEL (5.0 DIA x 1.875)
(Superseded to 734-06305A)

$15.99

$

In Stock, Qty 16

0

21

MTD 736-0264

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

22

MTD 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 8

0

23

MTD 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

24

MTD 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

25

MTD 738-05081

SHOULDER SPACER

$7.49

$

In Stock, Qty 20+

0

26

MTD 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

$7.99

$

In Stock, Qty 20+

0

27

MTD 942-04244A

23.25" BLADE (HIGH LIFT)
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

27

MTD 490-110-C131

Cub Cadet 46" BLADE SET

Note: Retail Packaged Part

$

$

Not available

27

MTD 490-110-M131

Genuine Factory Parts 46" HI LIFT BLADE SET
(Superseded to 490-110-Y110)

Note: Retail Packaged Part

$68.99

$

In Stock, only 4 left!

0

28

MTD 747-05608

DECK SPRING HOOK
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

29

MTD 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 20+

0

30

MTD 754P06135

V-BELT A SEC x 120.8

$66.99

$

In Stock, only 1 left!

0

30

MTD 490-501-C082

Cub Cadet 46" RZT DECK BELT

Note: Retail Packaged Part

$66.99

$

In Stock, only 1 left!

0

30

MTD 490-501-Y082

Troy-Bilt 46" RZT DECK BELT

Note: Retail Packaged Part

$

$

Currently unavailable

31

MTD 756-04511B

FLAT IDLER PULLEY

$53.99

$

In Stock, Qty 20+

0

32

MTD 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

33

MTD 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0
