Z 52 XF (967328101) - Jonsered Zero-Turn Mower (2015-01) WHEELS TIRES Parts Diagram

Zero-Turn Mower

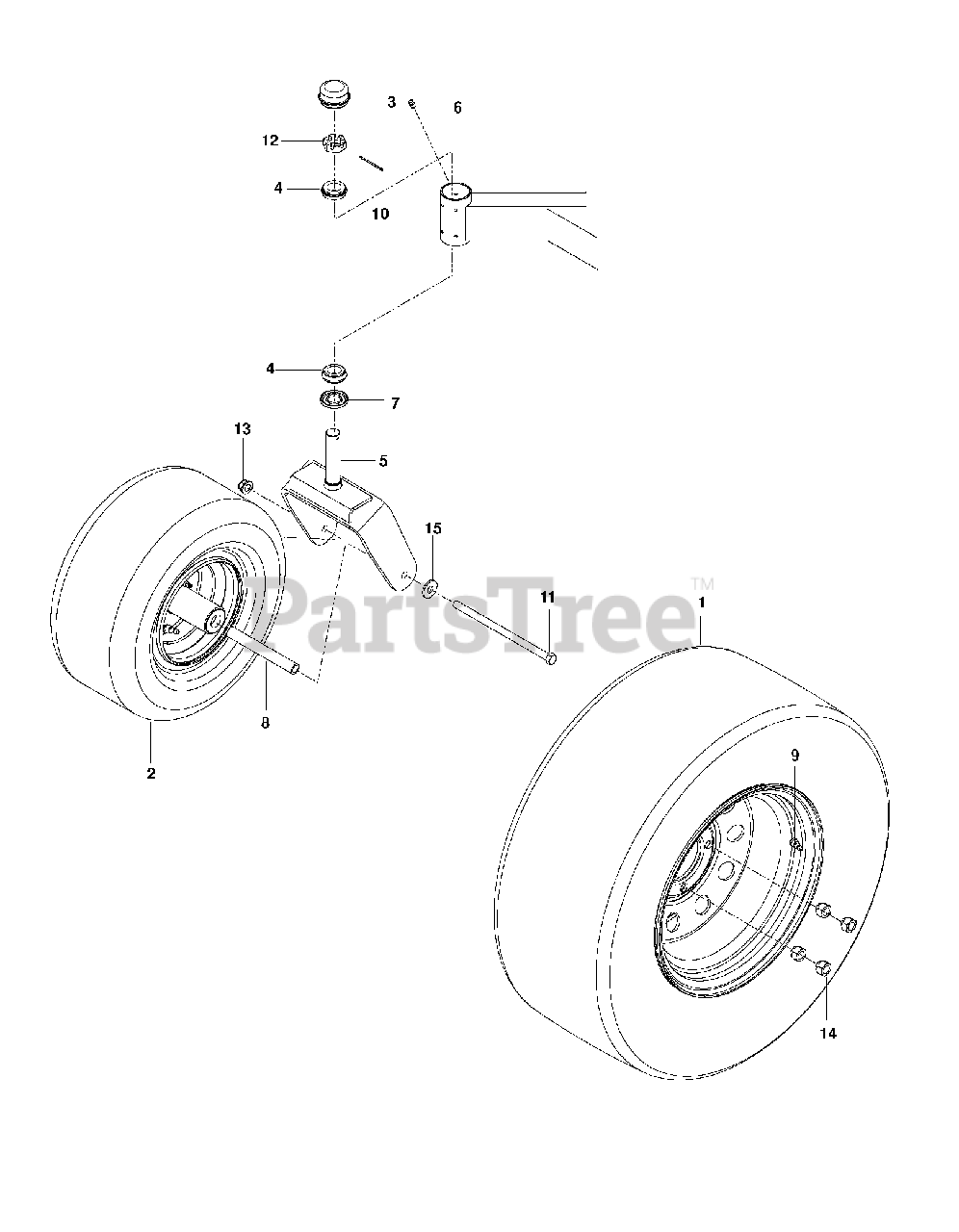

WHEELS TIRES Parts Diagram

  • Title

1

Jonsered 580747001

Wheel Assembly, 22 X 10-10.Silve.Ztr

$278.99

$

In Stock, only 1 left!

0

2

Jonsered 581199501

Caster Tire Assembly, 13 X 6.5-6 Silver
(Superseded to 575348701)

$194.99

$

In Stock, Qty 6

0

3

Jonsered 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

4

Jonsered 539102543

TAPERED ROLLER BRG

$40.99

$

In Stock, only 2 left!

0

5

575329206

$

$

Not available

6

Jonsered 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

7

Jonsered 539102851

SEAL

$7.99

$

In Stock, only 4 left!

0

8

Jonsered 575334901

SPACER, PIVOT

$24.99

$

In Stock, Qty 8

0

9

Jonsered 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

10

Jonsered 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

11

Jonsered 539105517

HEX SCREW 1/2-13 X 9.5 GR5
(Superseded to 594946501)

$6.99

$

In Stock, Qty 20+

0

12

Jonsered 539102852

NUT 1"C HEX SLOTTED
(Superseded to 596241501)

$12.99

$

In Stock, Qty 6

0

13

Jonsered 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

14

Jonsered 539101173

LUG NUT 1/2F
(Superseded to 587653903)

$4.99

$

In Stock, Qty 20+

0

15

Jonsered 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0
