Z 52 XF (967328101) - Jonsered Zero-Turn Mower (2015-01) STEERING Parts Diagram

Zero-Turn Mower

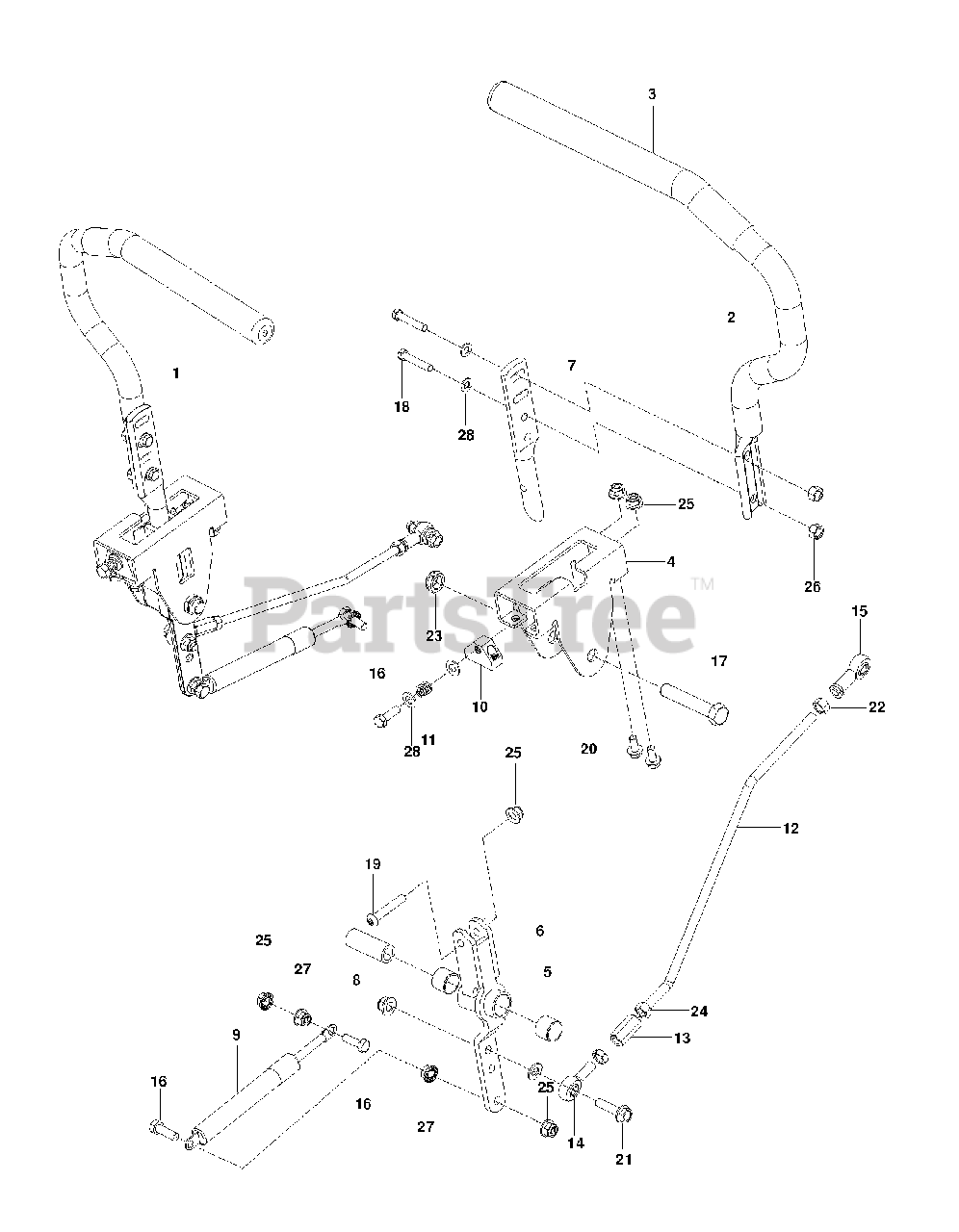

STEERING Parts Diagram

  • Title
1

Jonsered 539132009

LEVER DRIVE W/GRIP RT

$80.99

$

In Stock, Qty 18

0

2

Jonsered 539132010

LEVER, DRIVE W/GRIP LT

$80.99

$

Usually ships in 3-10 days

0

3

Jonsered 539130894

GRIP - DRIVE LEVER

$9.99

$

In Stock, only 3 left!

0

4

Jonsered 577251701

BRACKET, CONTROL
(Superseded to 586737202)

$26.99

$

In Stock, only 1 left!

0

5

532438282

$

$

Not available

6

Jonsered 587187701

Control Weldment.Rz

$20.99

$

In Stock, only 1 left!

0

7

Jonsered 577420001

LEVER.HANDLE MOUNT
(Superseded to 577420002)

$11.99

$

In Stock, Qty 20+

0

8

Jonsered 584927201

Pivot Control Spacer

$5.99

$

In Stock, only 3 left!

0

9

$66.99

$

In Stock, only 3 left!

0

10

Jonsered 577251801

BLOCK, TRACKING

$11.99

$

Usually ships in 3-10 days

0

11

$4.99

$

In Stock, only 3 left!

0

12

Jonsered 574811401

ROD, CONTROL

$14.99

$

Usually ships in 3-10 days

0

13

Jonsered 539116689

ROD END COUPLER
(Superseded to 596718601)

$3.49

$

In Stock, only 3 left!

0

14

Jonsered 539115729

RH ROD END
(Superseded to 579764601)

$9.49

$

Usually ships in 3-10 days

0

15

Jonsered 539116690

ROD END LH
(Superseded to 588692502)

$10.99

$

Usually ships in 3-10 days

0

16

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 874780844

Hex Capscrew, 1/2-13 X 2-3/4 Gd 5 Zd

$3.99

$

Usually ships in 3-10 days

0

18

Jonsered 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

19

Jonsered 576850402

Buttonhead Screw, 5/16-18 X 1-3/4

$4.99

$

In Stock, only 2 left!

0

20

Jonsered 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

21

Jonsered 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

22

Jonsered 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

23

Jonsered 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, only 3 left!

0

24

Jonsered 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

25

Jonsered 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

26

Jonsered 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

27

Jonsered 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0
