Z 52 XF (967328101) - Jonsered Zero-Turn Mower (2015-01) IGNITION SYSTEM Parts Diagram

Zero-Turn Mower

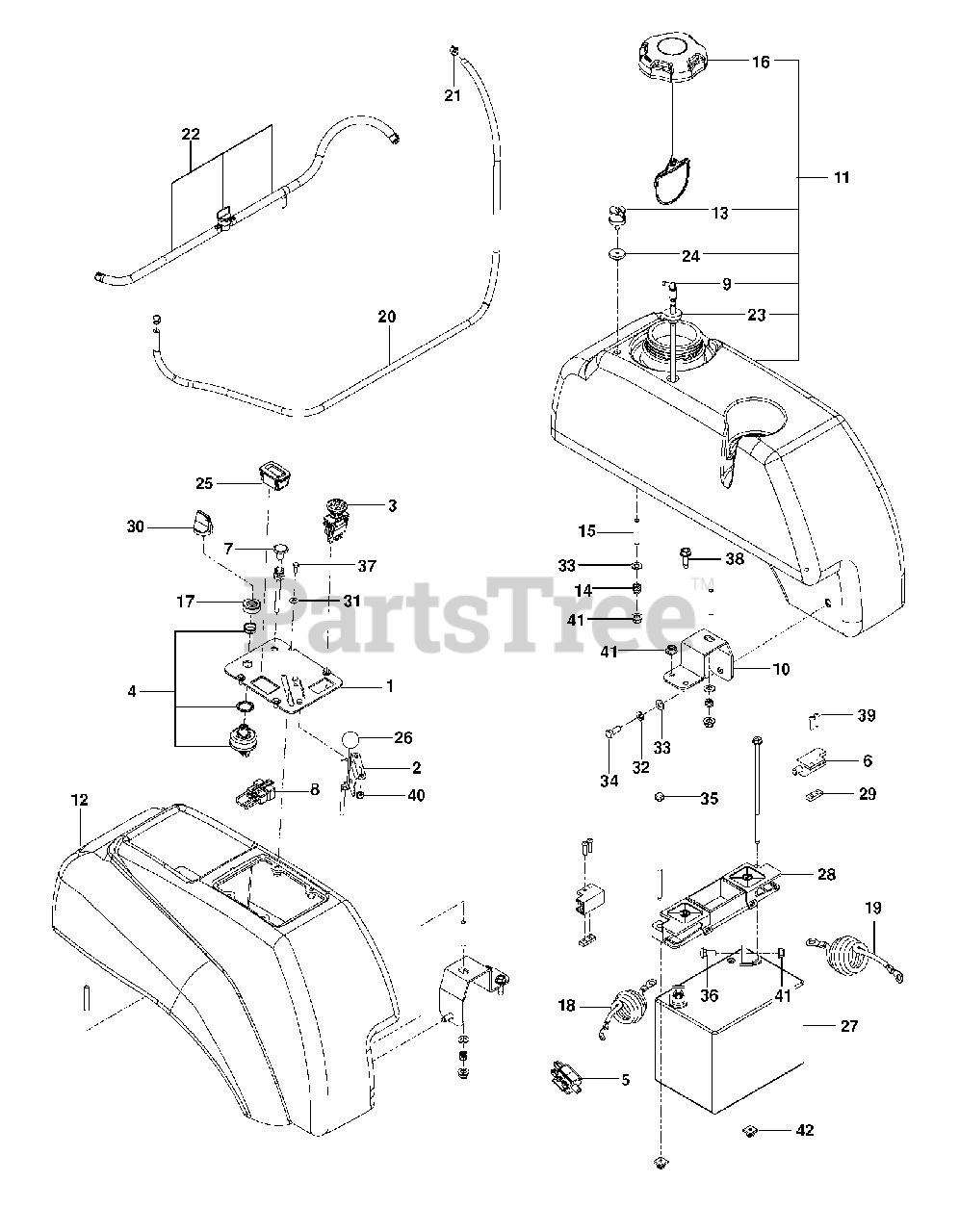

IGNITION SYSTEM Parts Diagram

  • Title

1

Jonsered 574841204

PLATE, CONSOLE, BLK

$24.99

$

Usually ships in 3-10 days

0

2

Jonsered 539102732

THROTTLE CONTROL W/BALL KNOB
(Superseded to 597524002)

$44.99

$

In Stock, only 4 left!

0

3

Jonsered 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

4

Jonsered 574455401

SWITCH, IGNITION, INDAK

$34.99

$

In Stock, only 1 left!

0

5

Jonsered 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 11

0

6

Jonsered 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

7

Jonsered 584971801

Choke Control Cable, 57"

$18.99

$

In Stock, only 1 left!

0

8

Jonsered 575321001

PLUG, TIMER

$14.99

$

Usually ships in 3-10 days

0

9

Jonsered 576469201

FITTING, FUEL

$31.99

$

In Stock, only 1 left!

0

10

Jonsered 539131671

SUPPORT, TANK, BLK

$68.99

$

In Stock, only 1 left!

0

11

Jonsered 585722302

TANK ASM LT MZ BLK

$399.99

$

Usually ships in 3-10 days

0

12

Jonsered 576683701

Console, RT-BLK

$194.99

$

Usually ships in 3-10 days

0

13

Jonsered 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 9

0

14

Jonsered 539102845

SPRING

$4.99

$

In Stock, only 2 left!

0

15

Jonsered 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

16

Jonsered 575018101

CAP, FUEL

$21.99

$

Usually ships in 3-10 days

0

17

Jonsered 539103178

CAP IGNITION NUT
(Superseded to 539115739)

$4.99

$

Usually ships in 3-10 days

0

18

Jonsered 539104974

POST.CABLE LONG

$

$

Not available

19

Jonsered 539107645

NEG. CABLE, 28"

$40.99

$

Usually ships in 3-10 days

0

20

587044559

$

$

Not available

21

Jonsered 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

22

Jonsered 576547801

Fuel Line Assembly

$48.99

$

Usually ships in 3-10 days

0

23

Jonsered 539105245

RUBBER GROMMET

$4.99

$

In Stock, only 4 left!

0

24

Jonsered 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, only 4 left!

0

25

Jonsered 586161801

Hour Meter Gauge
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

26

Jonsered 539133049

KNOB ROUND BALL

$18.99

$

Usually ships in 3-10 days

0

27

Jonsered 539102436

BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

28

Jonsered 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

29

Jonsered 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

30

Jonsered 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

31

Jonsered 819070818

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

32

Jonsered 810030500

Lock Washer, 5/16
(Superseded to 539990187)

$3.99

$

Usually ships in 3-10 days

0

33

Jonsered 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

34

Jonsered 874780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Jonsered 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

36

Jonsered 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

37

Jonsered 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

38

Jonsered 817490516

SCREW
(Superseded to 539113226)

$6.49

$

Usually ships in 3-10 days

0

39

Jonsered 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

40

Jonsered 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

41

Jonsered 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

42

Jonsered 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, Qty 7

0

Jonsered 585999701

HARNESS MAIN MZ

Note: NOT SHOWN

$182.99

$

Usually ships in 3-10 days

0
