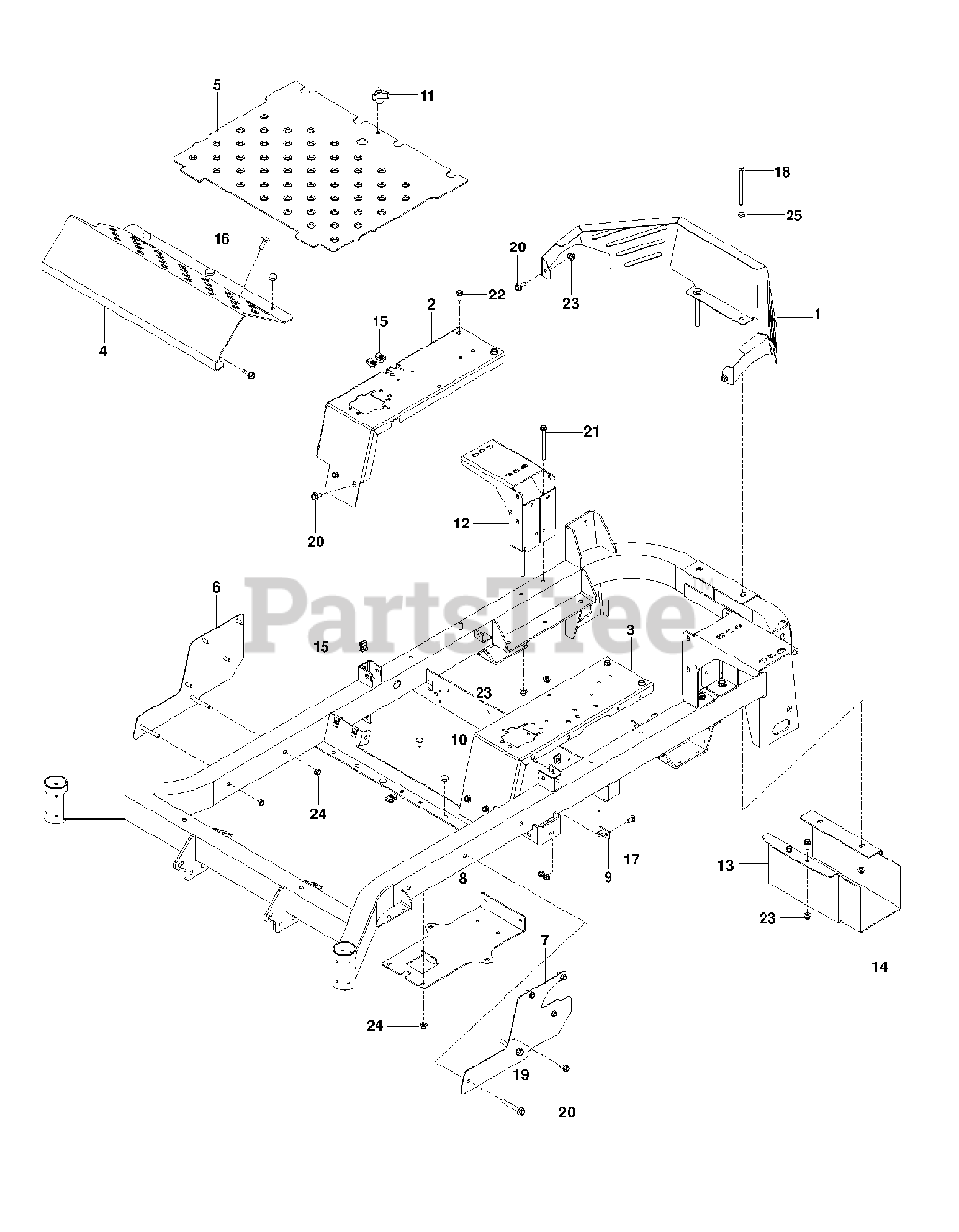

Z 52 XF (967328101) - Jonsered Zero-Turn Mower (2015-01) FRAME Parts Diagram

Zero-Turn Mower

FRAME Parts Diagram

  • Title

1

576878503

$

$

Not available

2

Jonsered 577256903

PANEL.FILLER.RT.DIXON.BLUE

$70.99

$

Usually ships in 3-10 days

0

3

Jonsered 577256803

PANEL FILLER LT BLUE

$103.99

$

Usually ships in 3-10 days

0

4

521941305

$

$

Not available

5

574891603

$

$

Not available

6

586560202

$

$

Not available

7

586560102

$

$

Not available

8

Jonsered 575017202

PLATE, BATTERY, BLACK

$60.99

$

Usually ships in 3-10 days

0

9

Jonsered 505256401

STOP, DECK, EZ+

$13.99

$

Usually ships in 3-10 days

0

10

Jonsered 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

11

Jonsered 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

12

Jonsered 575533602

MOUNT, TANK, ZT BLK

$74.99

$

Usually ships in 3-10 days

0

13

Jonsered 575230402

SHIELD, MUFFLER, BLK

$91.99

$

Usually ships in 3-10 days

0

14

Jonsered 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

15

Jonsered 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

16

Jonsered 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

17

Jonsered 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

18

Jonsered 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

19

Jonsered 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

20

Jonsered 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

21

Jonsered 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

22

Jonsered 539113226

BLT 5/16-18 X 1 THRD FORM ZD

$6.49

$

Usually ships in 3-10 days

0

23

Jonsered 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

24

Jonsered 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

25

Jonsered 539990188

FLAT WASHER 5/16 SAE
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0
