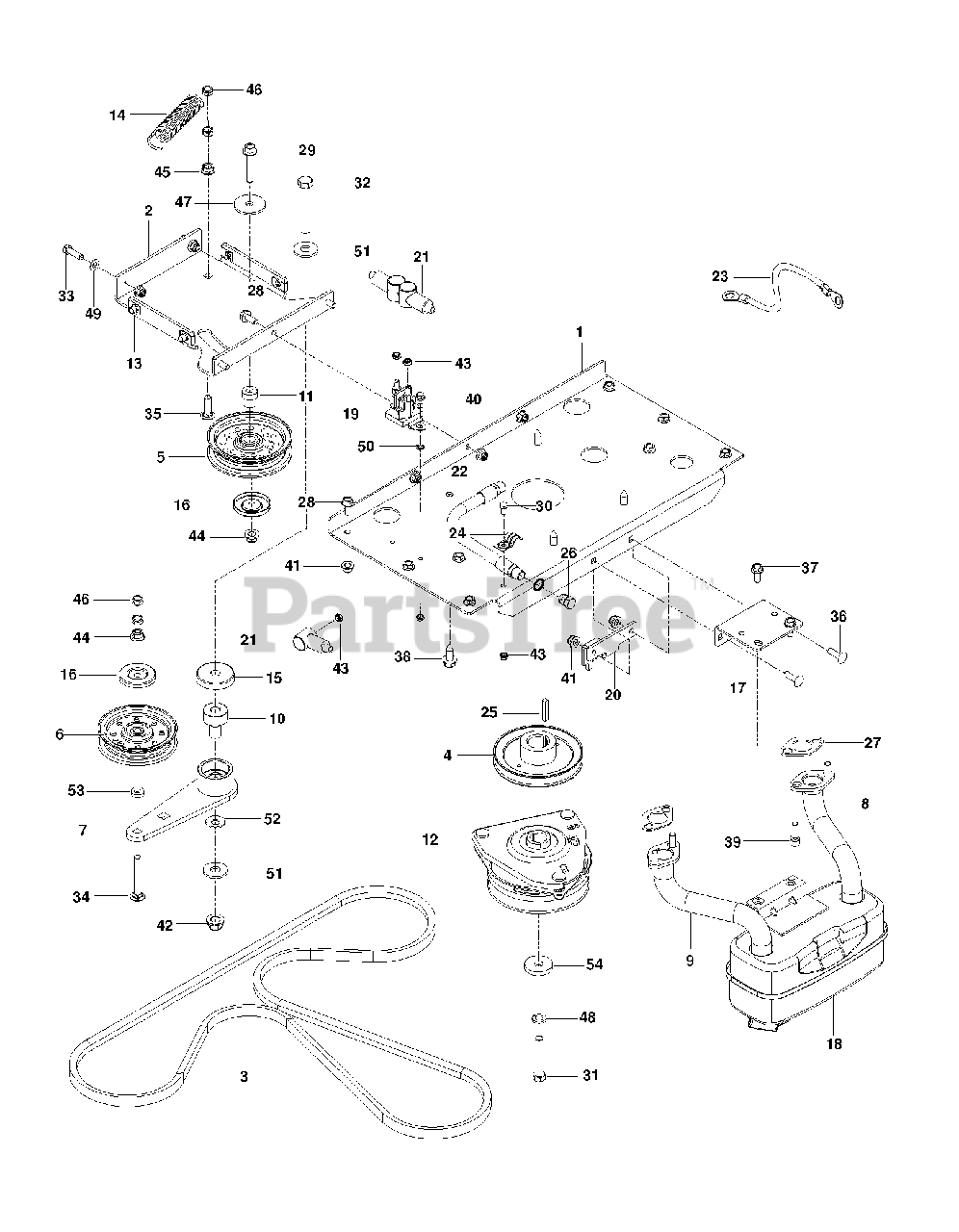

Z 52 XF (967328101) - Jonsered Zero-Turn Mower (2015-01) ENGINE PLATE Parts Diagram

Zero-Turn Mower

ENGINE PLATE Parts Diagram

  • Title

1

Jonsered 574846302

PLATE, ENGINE, BLK
(Superseded to 575608801)

$265.99

$

Usually ships in 3-10 days

0

2

Jonsered 574846402

PLATE, IDLER, BLK

$91.99

$

In Stock, only 2 left!

0

3

Jonsered 574870901

BELT, HYDRO, 3400

$39.99

$

Usually ships in 3-10 days

0

4

Jonsered 585813701

PULLEY.DRIVE.XMSN

$37.99

$

Usually ships in 3-10 days

0

5

Jonsered 539976688

IDLER PULLEY
(Superseded to 596739801)

$34.99

$

In Stock, only 2 left!

0

6

Jonsered 539107620

FLAT IDLER PULLEY
(Superseded to 596481401)

$26.99

$

In Stock, only 1 left!

0

7

Jonsered 510041603

ARM, IDLER, STEEL, W/BGS

$56.99

$

Usually ships in 3-10 days

0

8

Jonsered 583954801

Exhaust Pipe, RH CV18/20
(Superseded to 532146700)

$20.99

$

In Stock, only 1 left!

0

9

Jonsered 583954501

Exhaust Pipe, LH CV18/20

$22.99

$

In Stock, only 1 left!

0

10

Jonsered 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

11

Jonsered 525435601

PIVOT, IDLER

$8.99

$

In Stock, only 4 left!

0

12

Jonsered 532179335

CLUTCH ELECTRIC
(Superseded to 532414737)

$338.99

$

In Stock, Qty 20+

0

13

Jonsered 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

14

Jonsered 510254401

SPRING, PUMP
(Superseded to 510254402)

$6.99

$

In Stock, only 1 left!

0

15

Jonsered 539114662

SHIELD, DUST
(Superseded to 596394601)

$3.99

$

In Stock, only 3 left!

0

16

Jonsered 510254501

DUST SHIELD
(Superseded to 510254502)

$4.99

$

In Stock, only 2 left!

0

17

Jonsered 575229902

BRKT, MUFFLER, BLK

$34.99

$

Usually ships in 3-10 days

0

18

Jonsered 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 1 left!

0

19

Jonsered 532192507

SOLENOID.W/BRASS.PLUNG
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

20

Jonsered 585813601

Stop Clutch Bracket

$10.99

$

Usually ships in 3-10 days

0

21

Jonsered 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

22

Jonsered 584825501

Oil Drain Hose Assembly

$31.99

$

In Stock, only 1 left!

0

23

Jonsered 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

24

Jonsered 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

25

Jonsered 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

26

Jonsered 585807101

Oil Drain Plug

$4.99

$

In Stock, only 2 left!

0

27

Jonsered 586839901

Exhaust Gasket
(Superseded to 532186054)

$

$

Not available

28

Jonsered 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

29

Jonsered 525866201

HHFS 3/8-16 X 2.0 GD 5

$4.99

$

In Stock, only 1 left!

0

30

Jonsered 539990071

HCS 1/4-20.

$3.99

$

Usually ships in 3-10 days

0

31

Jonsered 581332802

Clutch Bolt, 7/16-20 X 2.5 Gr 5 24Hr
(Superseded to 581332806)

$8.99

$

In Stock, Qty 9

0

32

Jonsered 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

33

Jonsered 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, only 2 left!

0

34

Jonsered 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

35

Jonsered 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

36

Jonsered 539107271

RHSSNB 5/16C X 1.0

$3.99

$

In Stock, only 1 left!

0

37

Jonsered 817490512

SCREW
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Jonsered 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

39

Jonsered 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

40

Jonsered 539990302

HWST 1/4C X 3/8

$

$

Not available

41

Jonsered 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

42

Jonsered 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

43

Jonsered 539108120

JAM NUT 1/4C

$3.99

$

Usually ships in 3-10 days

0

44

Jonsered 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

46

Jonsered 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

47

Jonsered 539111897

WASHER, 3/8 SPEC
(Superseded to 596917301)

$5.99

$

In Stock, Qty 6

0

48

Jonsered 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, Qty 20+

0

49

Jonsered 539990188

FLAT WASHER 5/16 SAE
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

50

Jonsered 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

51

Jonsered 539109554

WASH USS FLAT 1/2
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

52

Jonsered 539115528

CONTACT BELLSPR 1/2

$3.99

$

Usually ships in 3-10 days

0

53

Jonsered 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 15

0

54

Jonsered 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

In Stock, Qty 20+

0

Jonsered 532198316

PIGTAIL.MATNLK.OLD.HARN

Note: NOT SHOWN

$10.99

$

In Stock, only 1 left!

0
