Z 4818 BIA (968999250) - Husqvarna 48" Zero-Turn Mower (2004-09) Main Frame Assembly (Part 2) Parts Diagram

48" Zero-Turn Mower

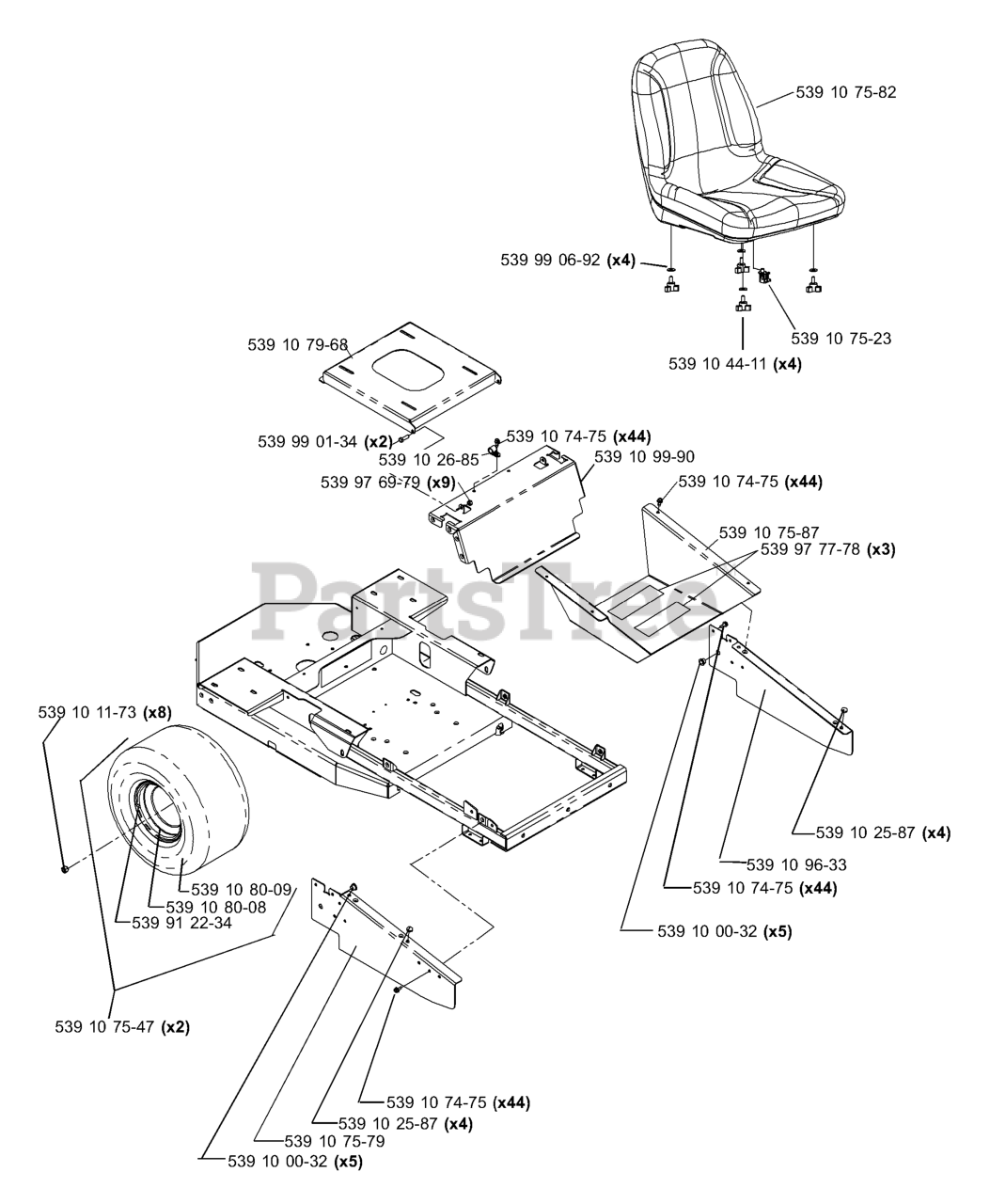

Main Frame Assembly (Part 2) Parts Diagram

  • Title
539100032

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

539101173

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

539102587

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

539102685

$4.99

$

Usually ships in 3-10 days

0

539104411

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

539107475

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

539107523

Husqvarna 539107523

SEAT SWITCH

$10.99

$

In Stock, Qty 6

0

539107547

Husqvarna 539107547

TIRE ASSY
(Superseded to 579753401)

$265.99

$

Usually ships in 3-10 days

0

539107579

Husqvarna 539107579

RH FRAME SIDE-ORANGE

$48.99

$

Usually ships in 3-10 days

0

539107582

$

$

Not available

539107587

Husqvarna 539107587

FLOOR PAN-ORANGE

$113.99

$

Usually ships in 3-10 days

0

539107968

Husqvarna 539107968

SEAT SUPPORT W/DECALS

$61.99

$

Usually ships in 3-10 days

0

539108008

Husqvarna 539108008

RIM.8"X6.38".ZTR
(Superseded to 579753401)

$265.99

$

Usually ships in 3-10 days

0

539108009

Husqvarna 539108009

TIRE 18 X 9.5-8 4 PLY

$194.99

$

Usually ships in 3-10 days

0

539109633

Husqvarna 539109633

LT FRAME SIDE

$28.99

$

Usually ships in 3-10 days

0

539109990

Husqvarna 539109990

ORG SEAT SUPPORT

$80.99

$

Usually ships in 3-10 days

0

539912234

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539977778

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

539990134

Husqvarna 539990134

SCREW 3/8C X 3/4 HEX CAP

$4.99

$

Usually ships in 3-10 days

0

539990692

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0
