Z 4818 (968999250) - Husqvarna 48" Zero-Turn Mower (2005-08) MAINFRAME, LEFT SIDE Parts Diagram

48" Zero-Turn Mower

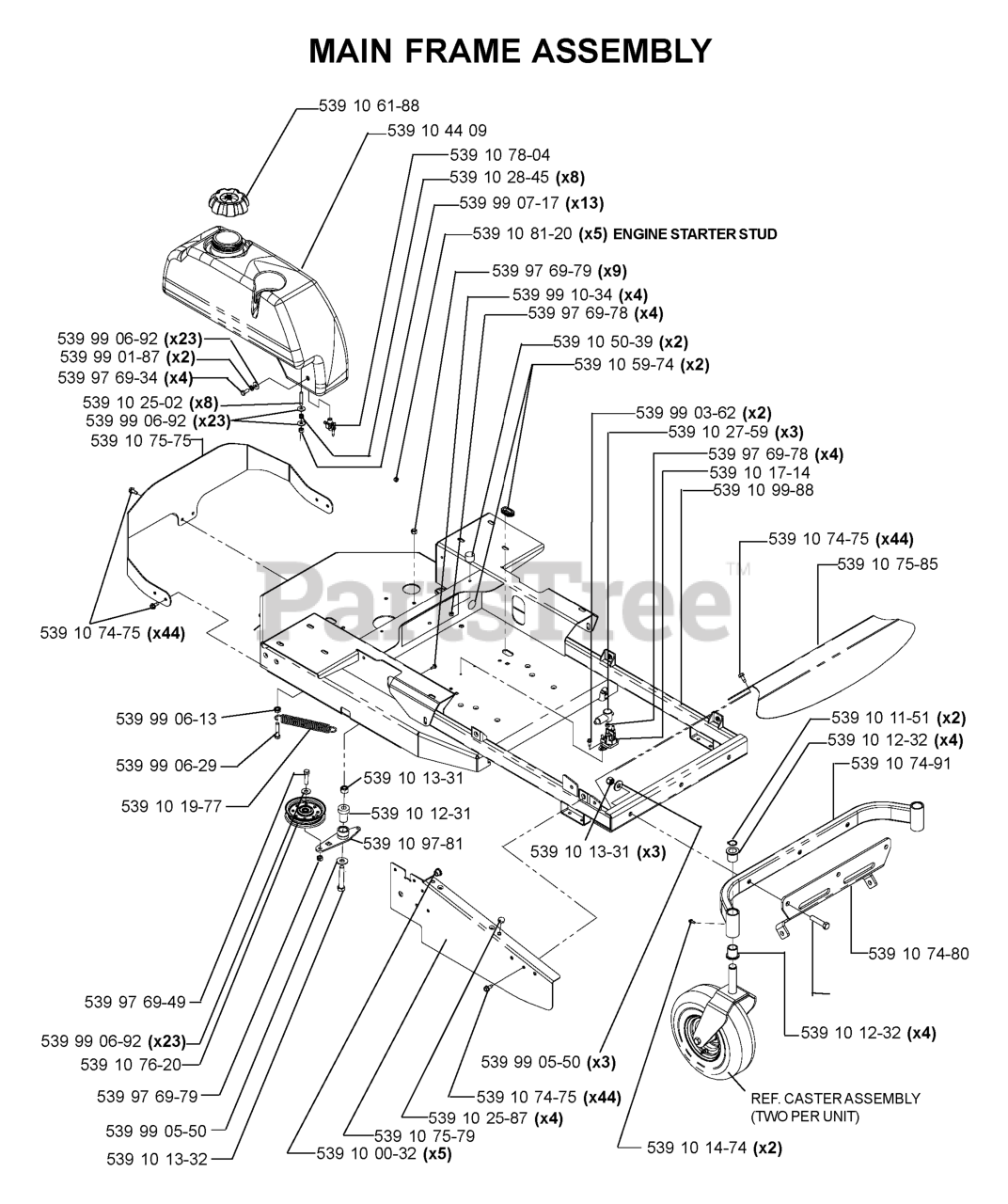

MAINFRAME, LEFT SIDE Parts Diagram

  • Title

539 97 69-78

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 10 12-32

Husqvarna 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 7

0

539 10 19-77

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

539 10 11-51

Husqvarna 539101151

RETAINING RING, 7/8"

$

$

Not available

539 10 14-74

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

539 10 99-88

Husqvarna 539109988

ORANGE FRAME W/DECALS

$

$

Not available

539 10 59-74

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

539 97 69-34

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

539 10 75-85

Husqvarna 539107585

FRONT FOOT PLATE

$47.99

$

Usually ships in 3-10 days

0

539 99 05-50

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 76-20

Husqvarna 539107620

FLAT IDLER PULLEY
(Superseded to 532175820)

$

$

Not available

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539 99 10-34

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

539 10 25-02

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

539 10 97-81

Husqvarna 539109781

PUMP IDLER ARM

$103.99

$

Usually ships in 3-10 days

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 10 74-75

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

539 10 61-88

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

539 10 81-20

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

Note: ENGINE STARTER STUD

$2.49

$

In Stock, Qty 20+

0

539 10 00-32

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

539 99 06-29

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539 10 75-79

Husqvarna 539107579

RH FRAME SIDE-ORANGE

$48.99

$

Usually ships in 3-10 days

0

539 10 28-45

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 2 left!

0

539 10 17-14

Husqvarna 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

539 99 03-62

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

539 10 27-59

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

539 10 75-75

Husqvarna 539107575

REAR BUMPER-BLACK

$78.99

$

Usually ships in 3-10 days

0

539 10 74-80

Husqvarna 539107480

STRUT MOUNT

$51.99

$

Usually ships in 3-10 days

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539 99 01-87

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

539 99 05-50

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 78-04

Husqvarna 539107804

FUEL VALVE

$

$

Not available

539 10 50-39

Husqvarna 539105039

STUD/PLATE MOUNT

$6.49

$

Usually ships in 3-10 days

0

539 10 13-32

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

539 10 44-09

Husqvarna 539104409

LEFT TANK W/CUP HOLDER

$

$

Not available

539 99 06-13

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539 97 69-49

Husqvarna 539976949

BOLT, HCS 3/8-16X1-3/4

$3.99

$

Usually ships in 3-10 days

0

539 10 74-91

Husqvarna 539107491

CASTER AXLE

$70.99

$

Usually ships in 3-10 days

0

539 10 25-87

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

539 10 12-31

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0
