Z 4818 (968999250) - Husqvarna 48" Zero-Turn Mower (2005-08) ELECTRICAL Parts Diagram

48" Zero-Turn Mower

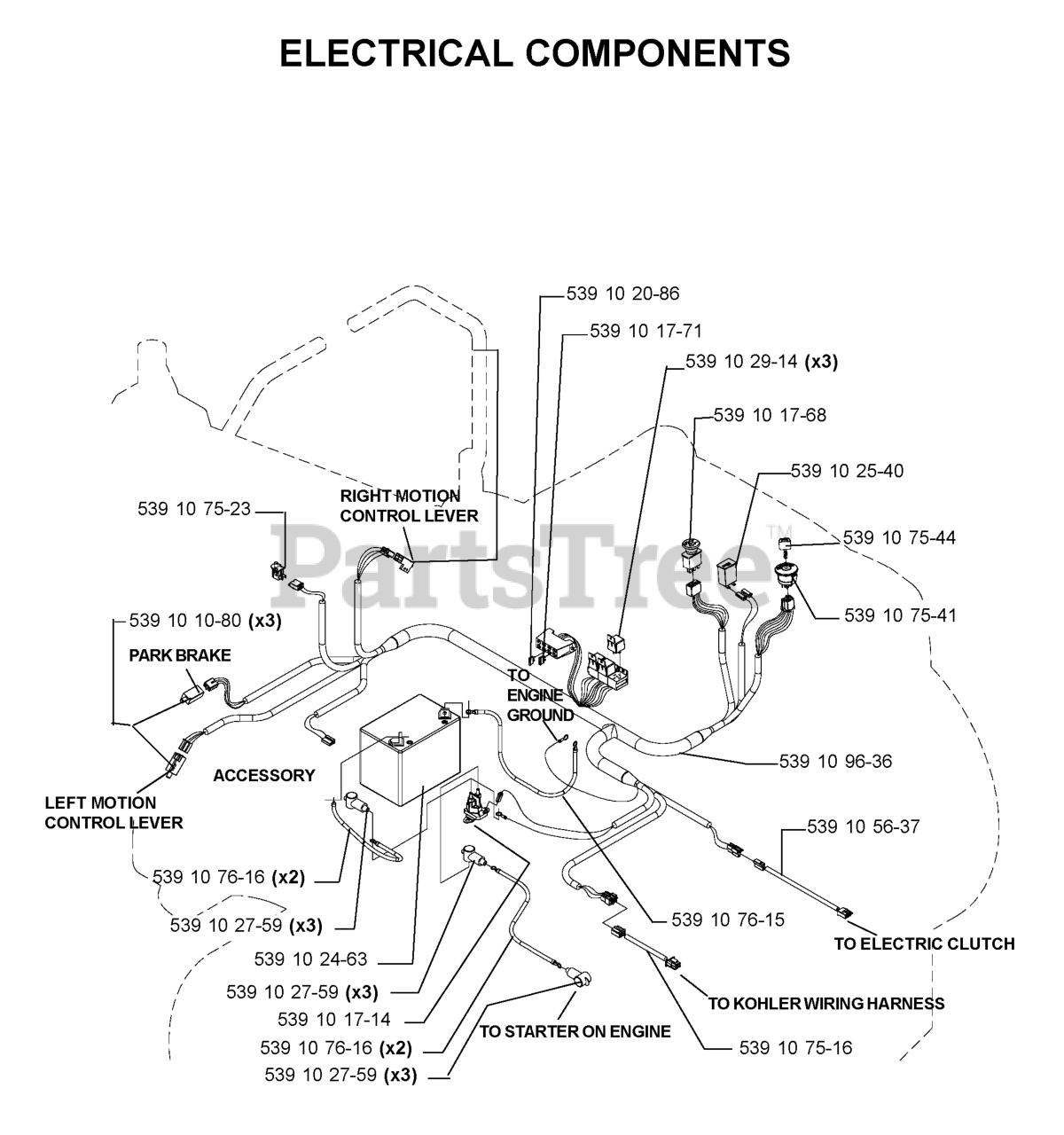

ELECTRICAL Parts Diagram

  • Title

539 10 29-14

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 8

0

539 10 96-36

Husqvarna 539109636

MAIN WIRING HARNESS

$424.99

$

Usually ships in 3-10 days

0

539 10 76-15

Husqvarna 539107615

BATTERY CABLE-NEG
(Superseded to 539110068)

Note: TO ENGINE GROUND

$9.49

$

Usually ships in 3-10 days

0

539 10 75-16

Husqvarna 539107516

KOHLER PIGTAIL-CV490S

Note: TO KOHLER WIRING HARNESS

$

$

Not available

539 10 75-41

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

539 10 27-59

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

539 10 24-63

Husqvarna 539102463

BATTERY WET NOT SELLABLE
(Superseded to 579411601)

$

$

Not available

539 10 27-59

Husqvarna 539102759

INSULATOR

Note: TO STARTER ON ENGINE

$4.99

$

In Stock, only 2 left!

0

539 10 76-16

Husqvarna 539107616

BATTERY CABLE-POS

$

$

Not available

539 10 20-86

Husqvarna 539102086

FUSE, 20 AMP 32 VOLT ATO

$

$

Not available

539 10 10-80

Husqvarna 539101080

SWITCH, INTERLOCK

Note: PARK BRAKE LEFT MOTION CONTROL LEVER

$17.99

$

Usually ships in 3-10 days

0

539 10 75-44

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

539 10 17-14

Husqvarna 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

539 10 75-23

Husqvarna 539107523

SEAT SWITCH

$10.99

$

In Stock, Qty 6

0

539 10 17-68

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

539 10 25-40

Husqvarna 539102540

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

539 10 56-37

Husqvarna 539105637

CLUTCH HARNESS

Note: TO ELECTRIC CLUTCH

$26.99

$

In Stock, Qty 6

0

539 10 17-71

Husqvarna 539101771

FUSE, 7.5 AMP 32 VOLT ATO

$

$

Not available
