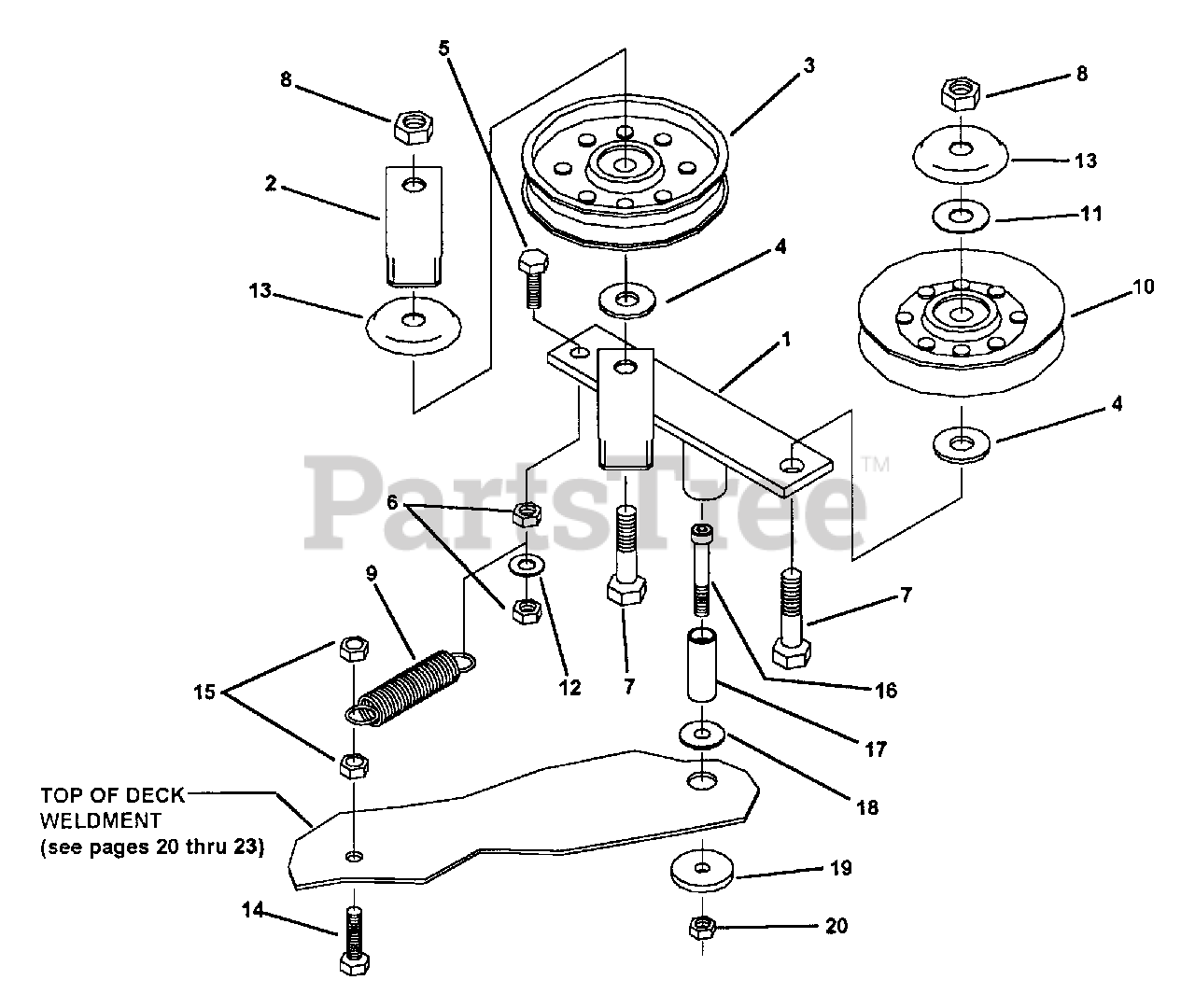

Z 4804M (7080713) - Snapper 48" Zero-Turn Mower Double Idler Assembly Parts Diagram

48" Zero-Turn Mower

Double Idler Assembly Parts Diagram

  • Title

Snapper 7062239

DOUBLE IDLER ASSEMBLY

$

$

Currently unavailable

1

Snapper 7062238

DOUBLE IDLER WELDMENT (w/bushing)

$

$

Not available

2

Snapper 7079032

PLATE, BELT STOP

$

$

Not available

3

Snapper 7079167

PULLEY, FLAT IDLER 1/2 BORE, 4" O,D,
(Superseded to 7079167YP)

$59.99

$

Usually ships in 2-12 days

0

4

Snapper 7090250

WASHER, FLAT STD. 1/2"
(Superseded to 704123)

Note: Was 79264

$4.49

$

In Stock, only 3 left!

0

5

Snapper 7090824

BOLT, 3/8-24 X 1-1/4" GR. 5
(Superseded to 7090824YP)

Note: Was 79422

$4.99

$

In Stock, Qty 9

0

6

Snapper 7090289

NUT, 3/8-24, M-F LOCKNUT
(Superseded to 703458)

Note: Was 79327

$4.99

$

In Stock, Qty 14

0

7

Snapper 7090543

BOLT, 1/2-13 X 2", GR.5
(Superseded to 703817)

Note: Was 79276

$5.99

$

Usually ships in 2-12 days

0

8

Snapper 7079262

NUT, 1/2-13, STOVER
(Superseded to 7079262YP)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper 7079217

SPRING, EXTENSION, 3/4 X 4" O.A.L.
(Superseded to 7079217YP)

$9.49

$

In Stock, Qty 5

0

10

Snapper 7079166

PULLEY, V-IDLER, 1/2 BORE, 4-3/8 O.D.
(Superseded to 7079166YP)

$59.99

$

Usually ships in 2-12 days

0

11

Snapper 7079306

WASHER, 1/2" TYPE B NARROW

$

$

Not available

12

Snapper 7090517

WASHER, FLAT STD. 3/8"
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

13

Snapper 7062286

WASHER, BEARING CAP
(Superseded to 7062286YP)

$11.99

$

Usually ships in 2-12 days

0

14

Snapper 7090824

BOLT, 3/8-24 X 1-1/4" GR.5
(Superseded to 7090824YP)

Note: Was 79422

$4.99

$

In Stock, Qty 9

0

15

Snapper 7090289

NUT, 3/8-24, M-F LOCKNUT
(Superseded to 703458)

Note: Was 79327

$4.99

$

In Stock, Qty 14

0

16

Snapper 7062397

BOLT, 5/16-18 X 2-1\4" SOC. HD. GR. 8
(Superseded to 7062397YP)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7062398

IDLER MOUNTING PIN
(Superseded to 7062398YP)

$71.99

$

Usually ships in 2-12 days

0

18

Snapper 7062399

BUSHING, IDLER PIN MTG.

$

$

Not available

19

$

$

Not available

20

Snapper 7062401

NUT, 5/16-18, STOVER
(Superseded to 7062401YP)

$2.99

$

Usually ships in 2-12 days

0
