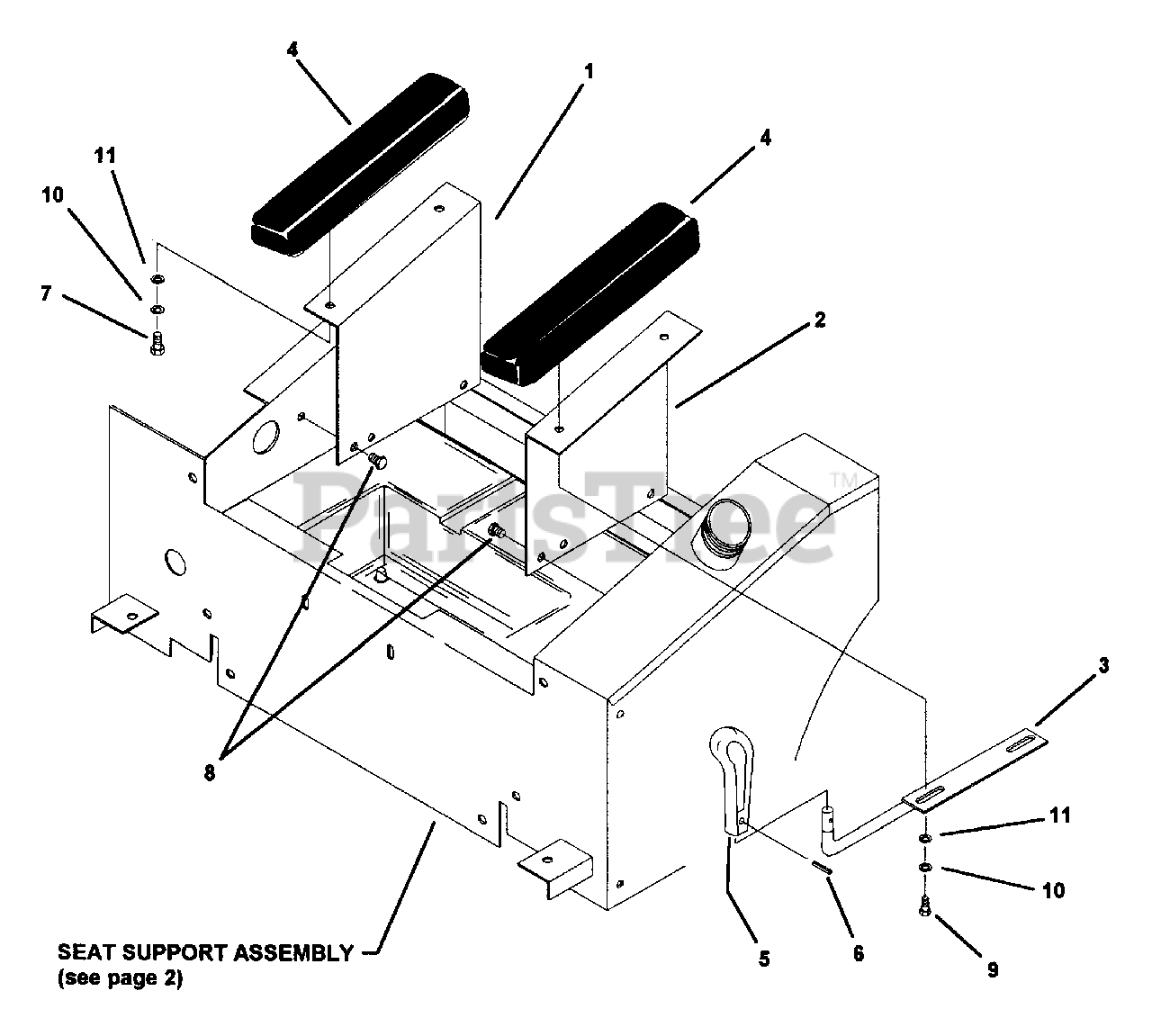

Z 4802M (7080191) - Snapper 48" Zero-Turn Mower Arm Rest Assembly Parts Diagram

48" Zero-Turn Mower

Arm Rest Assembly Parts Diagram

  • Title
1

Snapper 7079700

ARM REST SUPPORT R.H.

$

$

Not available

2

Snapper 7079699

ARM REST SUPPORT L.H.

$

$

Not available

3

Snapper 7079495

SECURITY HANDLE WELDMENT
(Superseded to 7079495YP)

$48.99

$

Usually ships in 2-12 days

0

4

Snapper 7079004

ARMREST PAD ASSEMBLY

Note: Was 79502

$

$

Not available

5

Snapper 7023656

HANDLE, JOYSTICK, 7/16" BORE
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

6

Snapper 7079294

PIN, SPIRAL 3/16 X 1" LIGHT DUTY
(Superseded to 7079294YP)

$2.99

$

In Stock, only 1 left!

0

7

Snapper 7076934

BOLT, 5/16-18 X 3/4" GR. 5
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7079910

BOLT, 3/8-16 X 1/2" NYLON PATCH

$

$

Currently unavailable

9

Snapper 7027168

BOLT, 5/16-18 X 1" GR. 5
(Superseded to 703585)

Note: Was 90636

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7079267

LOCKWASHER, 5/16" HEAVY SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7090188

WASHER, FLAT STD. 5/16"
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0
