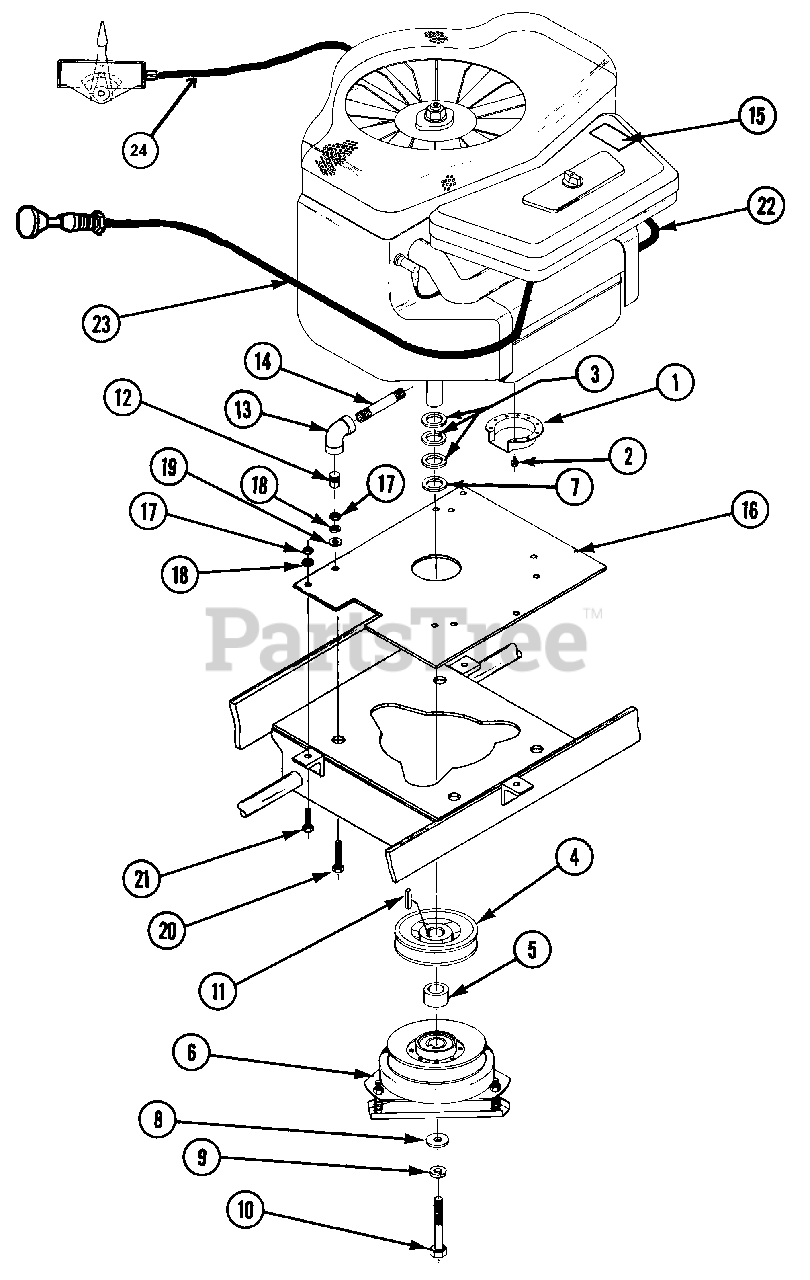

Z 4801M (80001) - Snapper 48" Mower Deck Assembly Twin Cylinder Engine Assembly, Briggs Parts Diagram

48" Mower Deck Assembly

Twin Cylinder Engine Assembly, Briggs Parts Diagram

  • Title

* ENGINE, 14 HP B&S Mod. 404707-0030-01

* ENGINE, 14 HP B&S Mod. 404707-0030-01

$

$

Not available

* ENGINE, 16 HP B&S Mod. 402707-0169-01

* ENGINE, 16 HP B&S Mod. 402707-0169-01

$

$

Not available

* ENGINE, 18 HP B&S Mod. 422707-0030-01

* ENGINE, 18 HP B&S Mod. 422707-0030-01

$

$

Not available

1

Snapper 7079225

SIDEOUT DEFLECTOR

$

$

Currently unavailable

2

Snapper 7079290

SCREW FOR SIDEOUT DEFLECTOR

$

$

Not available

3

Snapper 7079020

WASHER, 1-1/2 OD X 1 ID X 1/8 THK

$

$

Not available

4

Snapper 7079332

PULLEY, BK50-1, 4" A PITCH
(Superseded to 7079332YP)

$92.99

$

In Stock, only 1 left!

0

5

Snapper 7079071

SPACER, PULLEY/ELECTRIC CLUTCH
(Superseded to 7079071YP)

$16.99

$

Usually ships in 2-12 days

0

6

Snapper 7079446

CLUTCH, ELECTRIC, #5210-17 CU
(Superseded to 7079446YP)

$542.99

$

Usually ships in 2-12 days

0

7

Snapper 7079019

WASHER, 1-1/2 OD X 1 ID X 1/16 THK

$

$

Not available

8

Snapper 7079022

WASHER, 15/32" ID

$

$

Not available

9

Snapper 7091301

LOCKWASHER, 7/16 STD, SPLIT SPRING
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7023388

CAPSCREW, HEX, 7/16-20 X 3, GRADE 5

Note: Was 79314

$

$

Not available

11

Snapper 7079000

SQUARE KEYS 1/4" X 1"
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 2 left!

0

12

Snapper 7079367

3/8 PIPE PLUG

$

$

Not available

13

Snapper 7079210

ELBOW, 3/8 X 90 DEG, SCH. 40, BLACK

$

$

Currently unavailable

14

Snapper 7079209

NIPPLE, 3/8 X 3, SCH. 40, BLACK

$

$

Currently unavailable

15

Snapper 7079237

DECAL "PERIODICALLY CLEAN DEBRIS"
(Superseded to 7079237YP)

$5.99

$

Usually ships in 2-12 days

0

16

Snapper 7079114

MOTOR MOUNTING PLATE

$

$

Not available

17

Snapper 7090789

NUT, 5/16-24 UNF, GRADE 5

Note: Was 79324

$

$

Not available

18

Snapper 7079267

LOCKWASHER, 5/16 HEAVY SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7090188

WASHER, FLAT, STD, STEEL 5/16"
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 2 left!

0

20

Snapper 7091609

CAPSCREW, HEX, 5/16-24 X 1-1/2, GRADE 5
(Superseded to 7091609SM)

Note: Was 79325

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 7090238

CAPSCREW, HEX, 5/16-24 X 1, GRADE 5
(Superseded to 703301)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7079096

THROTTLE CABLE

$

$

Not available

23

Snapper 7079083

CHOKE CABLE
(Superseded to 7079083YP)

$51.99

$

Usually ships in 2-12 days

0

Snapper 7079241

TAG "NOTICE ADD OIL GAS, ETC."

$

$

Currently unavailable
