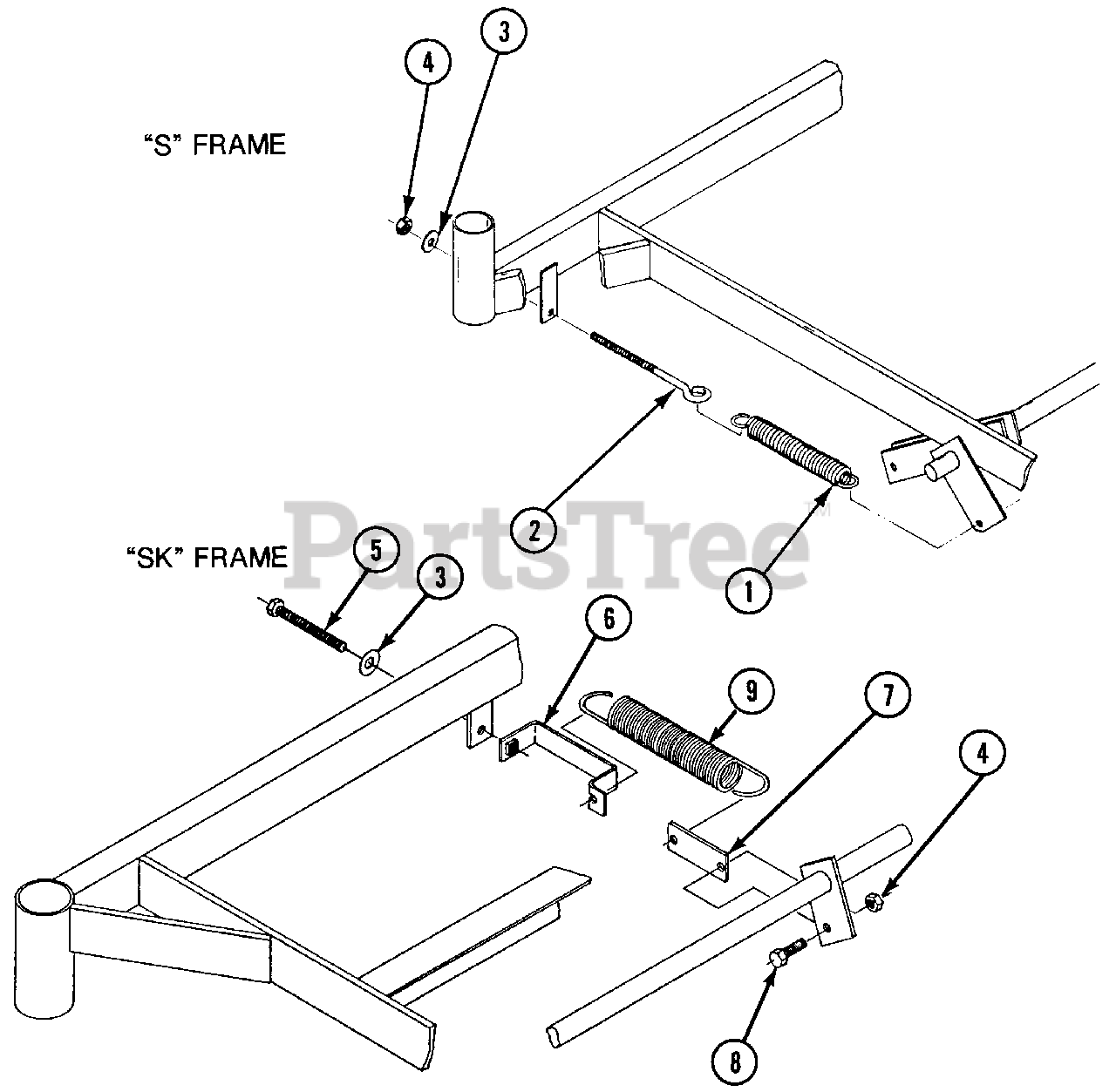

Z 4801M (80001) - Snapper 48" Mower Deck Assembly Spring Connection ("S" & "SK" Frame) Parts Diagram

48" Mower Deck Assembly

Spring Connection ("S" & "SK" Frame) Parts Diagram

  • Title

1

Snapper 7079368

DECK SPRING, 1-1/2" X 8" LONG
(Superseded to 7079368YP)

$49.99

$

Usually ships in 2-12 days

0

2

Snapper 7079297

EYEBOLT 3/8-16 x 7-1/2" (FULL EYE)

$

$

Currently unavailable

3

Snapper 7090517

WASHER, 3/8 STD, FLAT
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

4

Snapper 7091299

LOCKNUT, HEX, 3/8-16, W/NYLOC
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7079550

CAPSCREW, 3/8-16 X 3 ALL THRD.

$

$

Currently unavailable

6

Snapper 7079551

SPRING TIGHTENER 42" & 48" DECKS

$

$

Currently unavailable

7

Snapper 7079552

SPRING EXTENSION PLATE

$

$

Currently unavailable

8

Snapper 7091304

CAPSCREW, 3/8-16 X 1 GR.5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

9

Snapper 7079628

DECK SPRINGER 1.65" X 9" LONG

$

$

Not available
