Z 4801M (80001) - Snapper 48" Mower Deck Assembly Side Plate Miscellaneous Parts Parts Diagram

48" Mower Deck Assembly

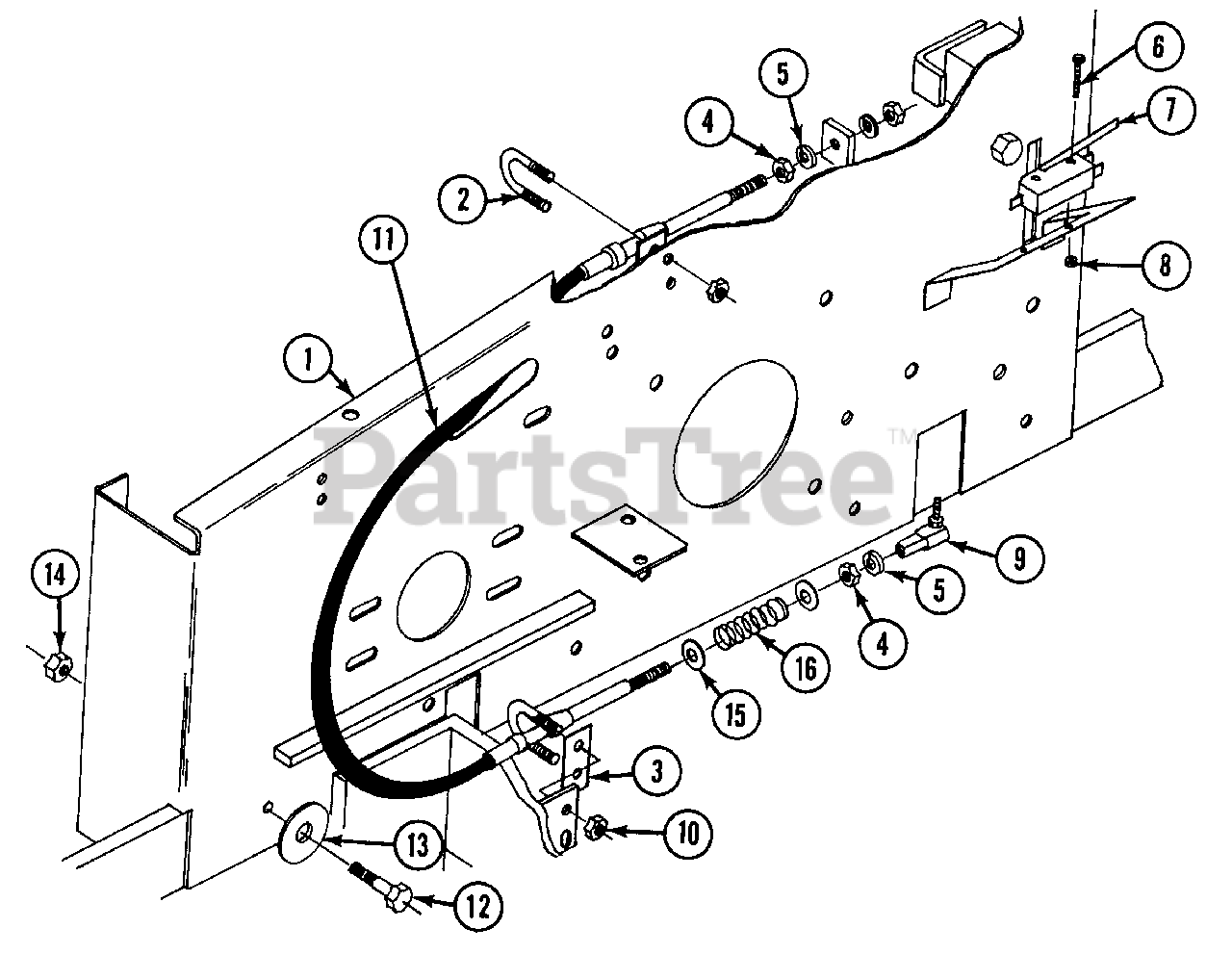

Side Plate Miscellaneous Parts Parts Diagram

  • Title

1

Snapper 79058

SIDE PLATE WELDMENT LEFT ("S" FRAME)

Note: (LEFT SIDE IS SHOWN)

$

$

Currently unavailable

1

Snapper 7079118

SIDE PLATE WELDMENT LEFT ("LB" & "LK" FRAME)

$

$

Currently unavailable

1

Snapper 7079057

SIDE PLATE WELDMENT RIGHT ("S" FRAME)

$

$

Currently unavailable

1

Snapper 7079119

SIDE PLATE WELDMENT RIGHT ("LB" & "LK" FRAME)

$

$

Currently unavailable

2

Snapper 7079301

U-BOLT, 5/16-18 X 1-3/16
(Superseded to 7079301YP)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 7079104

U-BOLT SPACER

$

$

Not available

4

Snapper 7090095

NUT, HEX, 1/4-28 (COMES WITH #11)
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7090052

LOCKWASHER, 1/4 STD, SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

6

Snapper 7079281

SCREW, ROUND HEAD SLOTTED, 6-32 X 1

$

$

Not available

7

Snapper 7079194

SWITCH, SINGLE POLE, 15A

$

$

Not available

8

Snapper 7079310

LOCKNUT, HEX, 6-32, W/NYLOC

$

$

Currently unavailable

9

Snapper 7015753

BALL JOINT, 1/4-28
(Superseded to 7015753YP)

Note: Was 79307

$10.99

$

In Stock, only 1 left!

0

10

Snapper 7090851

LOCKNUT, HEX, 5/16 THIN HEIGHT, W/NYLOC

Note: Was 79323

$

$

Not available

11

Snapper 7079220

CABLE, PUSH/PULL, SERIES 40, 34" OAL
(Superseded to 7079220YP)

$85.99

$

Usually ships in 2-12 days

0

12

Snapper 7090824

CAPSCREW, HEX, 3/8-24 X 1-1/4, GRADE 5
(Superseded to 7090824YP)

Note: Was 79422

$4.99

$

In Stock, Qty 9

0

13

Snapper 7079108

WASHER, .406 ID, 1.240 OD, .168 THK

$

$

Currently unavailable

14

Snapper 7090289

LOCKNUT, 3/8-24
(Superseded to 703458)

Note: Was 79327

$4.99

$

In Stock, Qty 14

0

15

Snapper 7079575

WASHER, 6.4 MM I.D. (ZINC PLATED)

Note: Was 79586

$

$

Not available

16

Snapper 7079590

COMPRESSION SPRING, .366 O.D. X 2.4 LG.

$

$

Not available
