Z 4801M (80001) - Snapper 48" Mower Deck Assembly Seat Stop Bracket Parts Diagram

48" Mower Deck Assembly

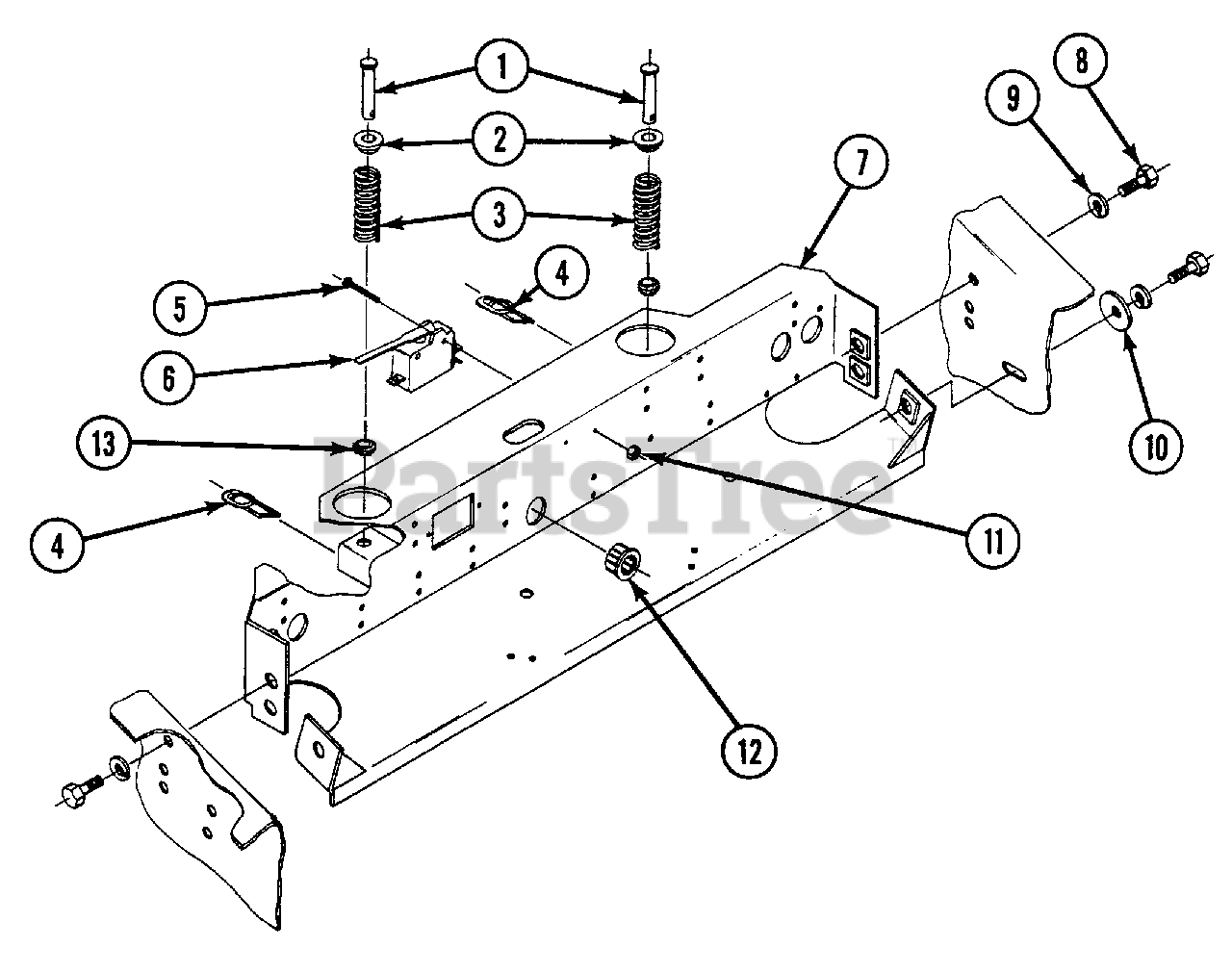

Seat Stop Bracket Parts Diagram

  • Title

1

Snapper 7029841

PIN, CLEVIS, 5/16 X 1-3/4
(Superseded to 704029)

Note: Was 79298

$4.49

$

In Stock, only 3 left!

0

2

Snapper 7079093

WASHER SEAT SPRING

$

$

Currently unavailable

3

Snapper 7079211

SPRINGER COMPRESSION, .720 X .081 X 2
(Superseded to 7079211YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7091593

COTTER, RUE RING, 5/16-3/8 PIN
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, Qty 14

0

5

Snapper 7079281

SCREW, ROUNDHEAD, SLOTTED, 6-32 X 1

$

$

Not available

6

Snapper 7079194

SWITCH, SINGLE POLE/DOUBLE THROW, 15A

$

$

Not available

7

Snapper 7079069

SEAT STOP BRACKET WELDMENT

$

$

Currently unavailable

7

Snapper 7079545

SEAT STOP BRACKET WELDMENT, JOYSTICK

$

$

Currently unavailable

8

Snapper 7027168

CAPSCREW, HEX, 5/16-18 X 1, GRADE 5
(Superseded to 703585)

Note: Was 90636

$4.99

$

In Stock, only 1 left!

0

9

Snapper 7079267

LOCKWASHER, 5/16 HEAVY, SPLIT SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7090188

WASHER 5/16 STD, FLAT
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 3 left!

0

11

Snapper 7079310

LOCKNUT, HEX, 6-32 W/NYLOC

$

$

Currently unavailable

12

Snapper 7079191

BUSHINGS, PLASTICS WIRE PROTECTOR

$

$

Not available

13

Snapper 79544

WASHER, NYLON SEAT SPRING

$

$

Currently unavailable
